Description

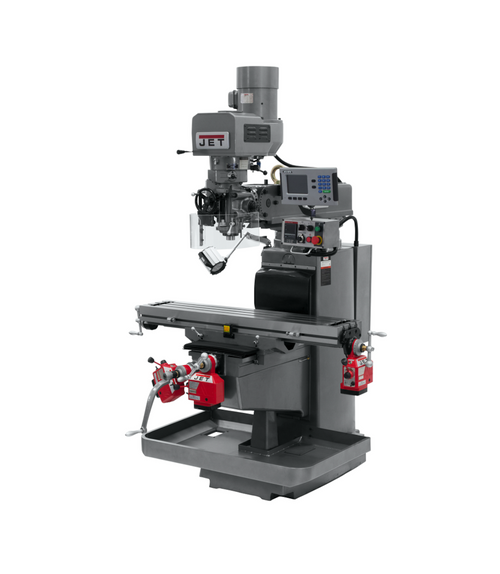

Jet JTM-1050EVS2 Mill Acu-Rite 200S 3X (Q) DRO XYZ PWRFDS (690633) is a heavy-duty electronic variable speed milling machine designed for precise metalworking applications. It features a rigid Meehanite cast iron base that minimizes vibration and ensures accuracy during cutting. The electronically controlled variable speed spindle allows for optimal settings on various materials, with a range of 60 to 4,500 RPM.
KEY FEATURES AND BENEFITS:
- Meehanite Cast Iron Base: Provides rigidity and vibration dampening.
- Electronic Variable Speed Spindle (60 - 4,500 RPM): Allows for precise machining on different materials.
- Acu-Rite 200S 3-axis Digital Readout (DRO) System: Displays real-time travel distances on X, Y, and Z axes for precise adjustments.
- X, Y, and Z-axis Power Feeds: Automate cutting head movement, improving efficiency and reducing fatigue.
- Swing-away Control Box with Emergency Stop: Provides easy access to controls with safety prioritization.
- Automatic Oiler: Ensures smooth operation and extends machine lifespan with proper lubrication.
- Heavy-duty Spindle Bearings: Maximizes rigidity for precise cuts.
- Internally Cooled Spindle Head: Extends bearing, belt, and motor life.
- Hardened and Precision Ground Table and Ways: Ensures superior accuracy.
- Swing-away Safety Shield and LED Work Lamp: Enhances operator safety and visibility.
- Additional Features: Chip Pan, Dual Locks, Way Covers, Drawbar, Toolbox with Tools.
SPECIFICATIONS:
- Table Size (L x W): 10 x 50 in.
- Quill Diameter: 3-3/8 in.
- Spindle Travel: 5 in.
- Collet Capacity: 1/8 - 7/8 in.
- Table Longitudinal Travel: 35-1/3 in.
- Work Table Weight Capacity: 840 lbs.
- Motor: 3 HP, 230V, 3Ph
- Overall Dimensions (L x W x H): 66 x 63 x 87 in.
- Weight: 2,860 lbs.
HOW TO USE:
Follow these steps to use the Jet JTM-1050EVS2 Mill effectively:
- Ensure the machine is properly leveled using the rigid Meehanite cast iron base.
- Power on the machine and set the desired speed using the electronic variable speed control.
- Position the workpiece on the table and secure it using appropriate clamping methods.
- Utilize the Acu-Rite 200S 3-axis DRO for precise tool positioning on X, Y, and Z axes.
- Activate the X, Y, and Z-axis power feeds for automated cutting head movement.
- Monitor operations using the swing-away control box and ensure safety with the emergency stop.
- Maintain the machine regularly, including lubrication and cleaning, to extend its operational life.
BENEFITS OF USING Jet JTM-1050EVS2 Mill Acu-Rite 200S 3X (Q) DRO XYZ PWRFDS (690633):
- Provides precise machining capabilities for a variety of metalworking applications.
- Enhances efficiency and reduces operator fatigue with automated power feeds and ergonomic design.
- Ensures operator safety with comprehensive safety features and emergency controls.
- Extends machine lifespan through proper lubrication and cooling mechanisms.
- Includes essential tools and features for professional metalworking projects.
-
