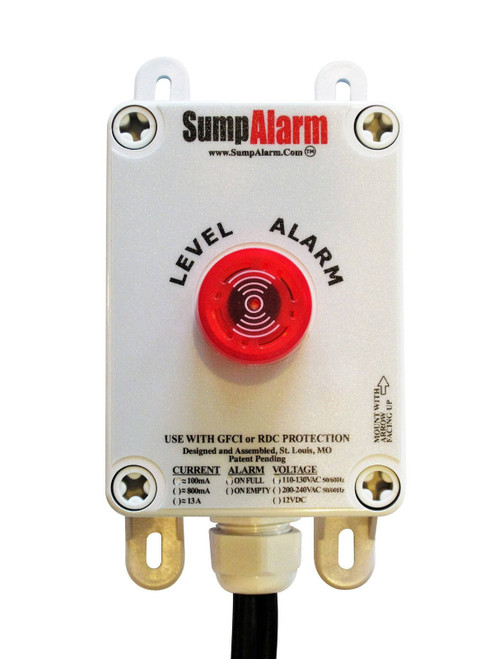

Sump Alarm Original 120V 16' Float High Water Alarm (SA-120V-1L-16)

The Sump Alarm Original 120V 16' Float High Water Alarm (SA-120V-1L-16) is a dependable system designed to provide timely warnings of potential high water levels or pump malfunctions in various liquid handling applications. This robust alarm is suitable for both indoor and outdoor use, allowing you to monitor critical systems like sump pumps, water tanks, lift stations, low-density oil containment, and sewage water from the comfort and safety of your home or facility. When liquid levels rise above a designated point or a pump fails to operate correctly, the Sump Alarm activates a loud audible horn and a highly visible flashing LED light, ensuring immediate awareness of a potentially damaging situation. Its straightforward installation process and included hardware make it a user-friendly solution for safeguarding your property against water damage and system failures.

KEY FEATURES AND BENEFITS:

• Early Warning System: Provides both a loud 90dB audible alarm and a bright 1-inch flashing red LED visual indicator to alert you to high water levels or pump failure.
• Versatile Application: Suitable for a wide range of uses including sump pumps, water tanks, lift stations, low-density oils, and sewage water systems.
• Easy Installation: Designed for simple "plug-n-play" setup with included wall anchors for the head unit and zip ties for securing the float.
• Reliable Float Switch: Features a durable, mercury-free float switch rated for 100,000 operations, ensuring long-lasting and dependable performance. Safe for use with potable water.
• Indoor and Outdoor Use: Built with materials and construction suitable for both interior and exterior environments.
• Reversible Alarm Logic: Can be wired for either high-level alarm activation or reversed for low-level alarm applications, offering flexibility in monitoring.
• Long Power Cord: Comes with a 6-foot, 3-prong grounded power cord for convenient connection to standard 120V outlets.
• Wide Operating Temperature Range: Functional in temperatures from -40°F to 140°F, ensuring reliable operation in various climates.

SPECIFICATIONS:

• Power: 120V
• Alarm Output: 90dB horn, 1-inch flashing red LED
• Float Switch Cable Length: 16 feet
• Float Type: Tethered "Water Boss" float (mercury-free)
• Float Switch Rating: 100,000 operations
• Power Cord Length: 6 feet
• Plug Type: 3-prong grounded
• Operating Temperature: -40°F to 140°F
• Mounting: (2) rear mounting holes

HOW TO USE:

• Float Placement: Position the 16-foot tethered float switch at the desired high water level within your sump pit, tank, or other application. Use the included zip ties to secure the float cable to a discharge pipe or other fixed point, ensuring the float can move freely up and down with the liquid level.
• Head Unit Mounting: Choose a suitable indoor or outdoor location for the Sump Alarm head unit where the visual and audible alarms can be easily noticed. Use the two rear mounting holes and the provided wall anchors and screws to securely mount the unit to a wall or other vertical surface.
• Power Connection: Plug the 6-foot, 3-prong grounded power cord into a standard 120V electrical outlet.
• Testing: Once installed, carefully raise the float switch manually to simulate a high water level. The 90dB horn should sound, and the red LED indicator light should begin to flash. Lower the float to ensure the alarm deactivates.
• Low-Level Alarm (Optional): For low-level alarm applications, refer to the included instructions for the specific wiring reversal procedure. This will change the alarm activation point to when the liquid level drops below the float.

BENEFITS OF USING THE SUMP ALARM ORIGINAL 120V 16' FLOAT HIGH WATER ALARM (SA-120V-1L-16):

• Early Detection: Provides crucial early warnings of potential water damage or system failures, allowing timely intervention.
• Reduced Costs: Helps prevent expensive repairs by alerting you to issues before significant damage occurs.
• Peace of Mind: Immediate audible and visual alerts ensure awareness even from a distance, offering reassurance.
• Versatile Monitoring: Compatible with a variety of fluid handling systems including sump pits, tanks, and more.
• Quick and Easy Setup: No complex wiring or professional installation required for effective protection.
• Durable Construction: Robust design and wide temperature range support reliable performance in diverse environments.
• Convenient Monitoring: Allows for indoor observation of outdoor systems, enhancing safety and ease of use.

FEATURES:

• Loud 90 Decibel Horn: Provides a clear and attention-grabbing audible warning signal.
• Highly Visible 1-Inch Red LED: Offers a distinct visual indication of an alarm condition, noticeable even in bright light or from afar.
• Mercury-Free Float Design: Environmentally friendly and safe for use in potable water applications.
• Durable Polycarbonate Enclosure: Offers protection against environmental elements for reliable indoor and outdoor use.
• Included Mounting Hardware: Comes complete with wall anchors and zip ties for a hassle-free installation.
• Plug-and-Play Operation: Ready to use right out of the box with minimal setup required.
• Tethered Float Switch: Allows for flexible placement and accurate level detection within the monitored area.
