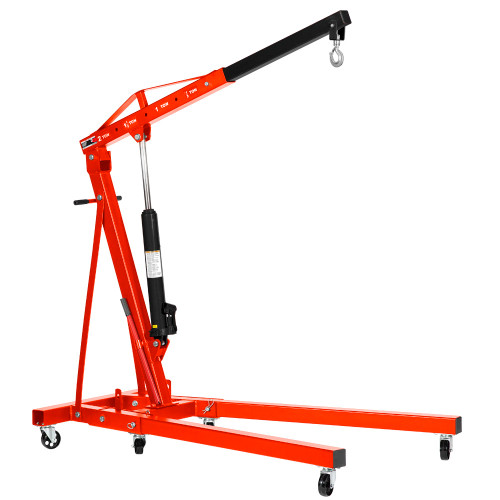

American Forge & Foundry 2-Ton Engine Crane (3583)

The American Forge & Foundry 2-Ton Engine Crane (3583) is a heavy-duty, folding engine hoist designed to raise, lower, and transport engines, differentials, transmissions, and other heavy loads with speed and ease. Built with high-grade steel and heavy-duty welded construction, this crane is engineered to meet demanding standards for quality and a long service life. It features a telescopic boom with four positions to provide a wide range of lifting heights and capacities, adapting to various jobs. The legs and boom fold up effortlessly for compact storage, making it an excellent choice for any garage or workshop where space is a consideration. A 360-degree swivel hook adds greater flexibility in positioning lifting chains, and the hydraulic ram is equipped with a safety by-pass mechanism for added operator safety.

KEY FEATURES AND BENEFITS:

• Fast and Efficient Lifting: The dual-pump hydraulic ram system allows for lifting speeds that are up to 25% faster than traditional designs, saving time and effort.
• Versatile Capacity: The telescopic boom provides four different positions, allowing you to lift a variety of loads with different weights, from 2 tons (4,000 lbs) down to 0.5 tons (1,000 lbs), depending on the boom's extension.
• Compact Storage: The entire crane folds up into a compact form, ideal for easy storage and transport, especially in spaces with limited room.
• Enhanced Maneuverability: Six 360-degree swivel casters provide smooth and easy movement, while a 360-degree swivel hook offers flexibility in positioning loads.
• Operator Safety: The hydraulic ram is equipped with a safety by-pass mechanism that prevents internal damage from overloading, ensuring safe operation.

SPECIFICATIONS:

• Lifting Capacity: 2 Tons (4,000 lbs.)
• Boom Positions: 4
• Position 1 Capacity: 2 Tons (4,000 lbs)
• Position 2 Capacity: 1.5 Tons (3,000 lbs)
• Position 3 Capacity: 1 Ton (2,000 lbs)
• Position 4 Capacity: 0.5 Tons (1,000 lbs)
• Included Components:
  • Folding Engine Crane body
  • Hydraulic Ram
  • Swivel Hook
  • Six 360-degree swivel casters

HOW TO USE:

• Assembly and Setup: Unfold the crane's legs and secure them. Attach the telescopic boom and hydraulic ram according to the instructions.
• Adjust the Boom: Select the appropriate boom position for your load and secure it with the provided pin to match the required lifting capacity.
• Position the Crane: Maneuver the crane to the desired location using the 360-degree swivel casters, ensuring it is stable and directly over the load.
• Attach the Load: Secure the load to the crane's 360-degree swivel hook using a lifting chain or strap.
• Lift the Load: Slowly operate the hydraulic pump handle to raise the load, keeping it balanced and stable.
• Transport the Load: Carefully push or pull the crane to the desired location while the load is lifted.
• Lower the Load: Gradually release pressure via the hydraulic ram’s release valve to lower the load safely.
• Storage: After use, fold the legs and boom for compact storage.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 2-TON ENGINE CRANE (3583):

• Reduced Physical Strain: Simplifies heavy lifting tasks and reduces the risk of injury associated with manual handling.
• Space-Saving Design: Foldable legs and boom allow for easy storage in limited spaces.
• Increased Efficiency: Dual-pump hydraulic system provides faster lifting speeds, saving time and effort.
• Enhanced Safety: Safety by-pass mechanism prevents damage from overloading.

FEATURES:

• High-Grade Steel Construction: Heavy-duty welded frame for durability.
• Folding Legs and Boom: Allows for compact storage and transport.
• Telescopic Boom: Four adjustable length positions for versatile lifting.
• Hydraulic Ram with Dual Pump: Provides faster lifting and smooth operation.
• Six 360-Degree Swivel Casters: For easy maneuverability.
• 360-Degree Swivel Hook: Flexible load attachment.
• Safety By-Pass Mechanism: Protects the hydraulic ram from overload damage.
