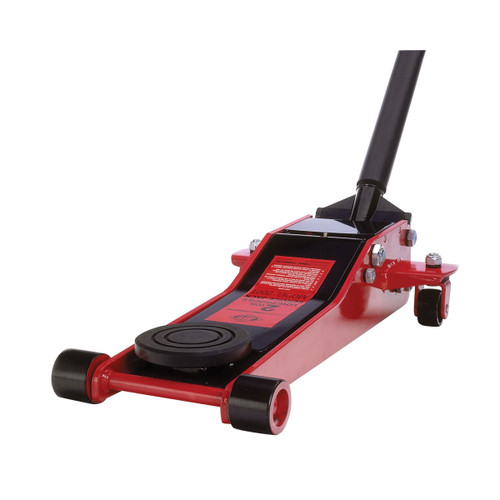

American Forge & Foundry 2-Ton Low Profile Floor Jack (200T)

The American Forge & Foundry 2-Ton Low Profile Floor Jack (200T) is engineered to meet the rigorous demands of professional service technicians while also being perfectly suited for dedicated home mechanics. This heavy-duty hydraulic floor jack combines robust construction with precise functionality, making it an essential tool for lifting a wide range of vehicles, especially those with limited ground clearance. Its design focuses on efficiency, safety, and long-term reliability in demanding workshop environments.

KEY FEATURES AND BENEFITS:

• Exceptional Low Clearance Access: With a remarkably low pickup height of just 2-3/4 inches, this jack easily slides under custom, lowered, or high-performance vehicles, addressing a common challenge in automotive service.
• Rapid Lifting Capability: The integrated twin hydraulic pump system significantly accelerates the lifting process, allowing you to elevate vehicles quickly without sacrificing control or stability.
• Precise Vehicle Lowering: Featuring advanced universal joint technology and a precision release valve, the jack enables a smooth, gradual, and highly controlled descent of the vehicle, enhancing safety during operation.
• Enhanced Vehicle Protection: A pinned steel saddle equipped with a protective rubber pad prevents scratches and damage to the vehicle's undercarriage during lifting and lowering.
• Superior Durability: Constructed from heavy-gauge steel and treated with a tough UV powder-coated frame, this jack offers exceptional resistance to wear, corrosion, and the impacts of daily workshop use, extending its lifespan.
• Overload Protection: An integrated safety valve prevents the jack from being used beyond its rated 2-ton capacity, ensuring safe operation and protecting both the equipment and the user.

SPECIFICATIONS:

• Capacity: 2 Tons (4000 lb.)
• Minimum Lifting Height: 2.75 inches
• Maximum Lifting Height: 20 inches
• Chassis Length: 27 inches
• Chassis Width - Front: 11.75 inches
• Chassis Width - Rear: 15 inches
• Handle Length: 50 inches
• Number of Handle Pieces: 1
• Operation: Hydraulic
• Saddle Diameter: 4.7 inches
• Weight: 99 lb.
• Standards: ASME PALD 2003

HOW TO USE:

1. Prepare the Vehicle: Ensure the vehicle is on a flat, stable surface. Engage the parking brake and place wheel chocks on the wheels that will remain on the ground.
2. Position the Jack: Locate a secure jacking point on the vehicle's frame or designated lift point as specified in the vehicle's owner's manual. Slide the AFF 200T floor jack under the vehicle, ensuring the saddle is centered directly under the jacking point.
3. Lift the Vehicle: Close the release valve by turning the handle clockwise until it is tight. Begin pumping the handle to raise the saddle. Continue pumping until the vehicle is lifted to the desired height.
4. Place Jack Stands: Once the vehicle is lifted, immediately place appropriately rated jack stands under secure support points on the vehicle's frame. Lower the vehicle slowly onto the jack stands by carefully turning the handle counter-clockwise to open the release valve.
5. Secure and Work: Ensure the vehicle is stable and fully supported by the jack stands before beginning any work. Do not rely solely on the floor jack for support.
6. Lower the Vehicle (After Work): When work is complete, lift the vehicle slightly off the jack stands using the floor jack. Remove the jack stands. Slowly lower the vehicle completely to the ground by gradually turning the handle counter-clockwise to release the pressure.
7. Remove the Jack: Once the vehicle is fully on the ground, carefully slide the AFF 200T floor jack from underneath.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 2-TON LOW PROFILE FLOOR JACK (200T):

• Allows access to a wider range of vehicles, including custom, lowered, and high-performance models that standard jacks cannot reach.
• Reduces the time spent on vehicle elevation due to its efficient dual-pump hydraulic system.
• Provides a safer working environment by offering precise control during the lowering process, minimizing risks.
• Protects the vehicle's undercarriage from damage, preserving its condition and preventing costly repairs.
• Offers a long service life even with frequent use in demanding shop environments, thanks to its robust construction.
• Supports a 2-ton load with built-in safety mechanisms, providing confidence during lifting operations.
• The one-piece handle simplifies positioning and storage, enhancing user convenience.

FEATURES:

• Super low pickup height of 2.75 inches for excellent under-vehicle access.
• Equipped with a double pump design for increased lifting speed.
• Universal joint technology integrated for a controlled and precise release.
• Safety valve engineered to prevent accidental overloads.
• UV powder-coated frame designed for enhanced surface protection and extended life.
• Pinned steel saddle with a rubber pad included for vehicle undercarriage safeguarding.
• Single-piece, 50-inch foam-covered handle for comfortable handling and storage.
• Heavy-gauge steel construction provides a solid and stable lifting platform.
