Description

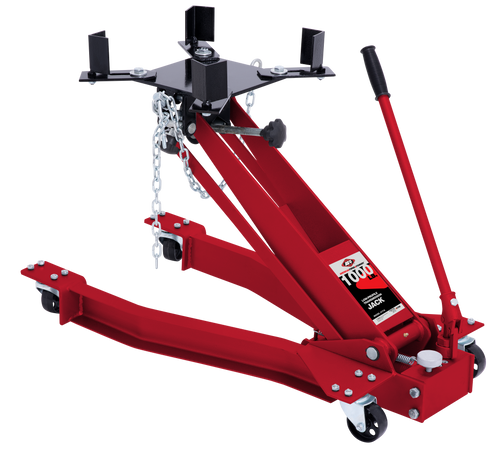

The American Forge & Foundry 1000LB Low Profile Transmission Jack (3171A) is an essential tool for any professional garage or serious DIY mechanic handling light to medium-weight truck transmissions, differentials, transfer cases, and even fuel tanks. Engineered with a keen understanding of automotive service needs, this jack provides exceptional clearance under vehicles thanks to its low-profile design. Its wide chassis ensures optimal load distribution, significantly enhancing stability during critical lifting and positioning tasks.
KEY FEATURES AND BENEFITS:
- Ideal for Light to Medium Weight Truck Transmissions: Specifically designed to accommodate the size and weight of transmissions found in these vehicle types, ensuring optimal performance and safety.
- Low Profile Style Provides Superior Clearance: Allows the jack to fit easily under vehicles with minimal ground clearance, making it highly versatile for various service bays or home garages.
- Wide Chassis Design for Efficient Load Distribution and Increased Stability: Distributes the weight of the transmission over a larger area, reducing the risk of tipping and providing a more secure working platform.
- 4-Way Tilting Head Allows Easy Positioning for Installation and Removal of Transmissions: Offers precise control over the tilt angle (front, rear, and side), enabling accurate alignment of the transmission with mounting points, which saves time and effort.
- Fully Adjustable Universal Saddle with Adjustable Arms for Easy Positioning: Adapts to various transmission shapes and sizes, holding them securely in place throughout the lifting, lowering, and maneuvering process.
- Long Handle Pivots 360° Around the Pump: Enhances maneuverability and allows the operator to pump the jack from any convenient angle around the vehicle, improving workflow and access in tight spaces.
SPECIFICATIONS:
- Model: 3171A
- Low Height: 6.875 inches
- High Height: 31.75 inches
- Front Tilt: 15°
- Rear Tilt: 12°
- Side Tilt: 15°
- Head Width: 7 inches to 13 inches
- Head Length: 8 inches to 11 inches
- Weight: 119 lbs
HOW TO USE:
- Prepare the Vehicle: Ensure the vehicle is securely lifted on a hoist or placed on jack stands, providing ample working space beneath. The area should be clear of obstructions.
- Position the Jack: Roll the transmission jack under the vehicle and position it directly beneath the transmission or component you intend to work on.
- Adjust the Saddle: Use the adjustable arms on the universal saddle to securely cradle the transmission. Ensure the component is balanced and stable on the saddle.
- Lift the Load: Utilize the foot pedal to pump the hydraulic mechanism, slowly raising the transmission jack until the saddle makes contact and begins to support the transmission's weight. Continue pumping until the transmission is at the desired height for removal or installation.
- Adjust Tilt (if needed): Use the tilting head controls to adjust the front, rear, or side tilt of the transmission as needed to align it perfectly with the engine or mounting points.
- Secure and Work: Once aligned, perform the necessary unbolting, removal, installation, or rebolting procedures.
- Lower the Load: Carefully depress the handle release pedal to slowly and controlledly lower the transmission. Ensure the path is clear as it descends.
- Remove the Jack: Once the transmission is fully supported by other means or installed, roll the jack out from under the vehicle.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 1000LB LOW PROFILE TRANSMISSION JACK (3171A):
- Enhanced Safety: Provides a stable and secure platform for handling heavy components, reducing the risk of accidents in the workshop.
- Precise Control: Allows accurate positioning and alignment of transmissions, improving efficiency during repair or replacement procedures.
- Durable Construction: Built with high-grade materials and finished with a protective powder coat for long-term performance in demanding conditions.
- Ergonomic Handling: The 360-degree pivoting handle and low-profile design improve user comfort and ease of access under the vehicle.
- Versatile Compatibility: Fully adjustable saddle and tilting head allow for flexible use with various truck transmissions and components.
FEATURES:
- Constructed from high-grade steel for enhanced longevity
- Features a protective powder coat finish resisting corrosion
- Includes a safety overload bypass to prevent hydraulic damage
- Equipped with a unique handle release pedal for controlled lowering
- Rolls smoothly on rugged steel wheels and full swivel ball-bearing casters
- Manual hydraulic operation with convenient foot pedal lifting
- Designed to meet or exceed ASME/PASE 2019 standards for safety
-
