Description

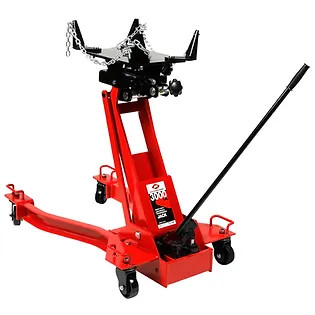

The American Forge & Foundry 3000LB Low Profile Transmission Jack (3179A) is a specialized hydraulic jack engineered for the demanding task of removing, installing, and positioning transmissions, transfer cases, and differentials on light to medium-weight trucks. This robust piece of equipment is designed to streamline complex under-vehicle service operations, offering both precise control and exceptional stability. Its distinctive low-profile "wishbone" design provides crucial clearance under vehicles, making it an invaluable tool for professional automotive and truck repair facilities. The jack's construction features a wide chassis for optimal load distribution and enhanced operational stability, which is paramount when handling heavy and cumbersome components. A key highlight is the fully adjustable universal saddle, which, combined with a sophisticated 4-way tilting head, allows technicians to achieve perfect alignment for component mating and separation. The ergonomic 360° pivoting long handle further enhances usability, enabling seamless operation from various angles around the vehicle. Built with high-grade steel and finished with a protective powder coating, the 3179A is constructed to withstand the rigors of daily shop use, ensuring long-term reliability and performance. Heavy-duty industrial-grade casters facilitate smooth and effortless maneuverability across the shop floor. This jack is engineered to improve efficiency and safety, allowing for effective one-person handling of heavy truck powertrain components.
KEY FEATURES AND BENEFITS:
- 3,000 lb (1.5 ton) Lifting Capacity: Effectively manages the weight of transmissions, differentials, and transfer cases common in light to medium-duty trucks.
- Low Profile Design (6.5" Low Height): Provides superior clearance under vehicles, essential for access to low-slung components and tight spaces.
- Wide Chassis for Enhanced Stability: Ensures efficient load distribution, minimizing tipping risks and providing a secure base during lifting and lowering operations.
- 4-Way Tilting Head (79° Front, 9° Rear, 10–18° Side Tilt): Allows for precise angular adjustments of the transmission, simplifying alignment for both installation and removal.
- Fully Adjustable Universal Saddle: Adapts to various component shapes and sizes, ensuring a secure and stable fit for different transmissions or other powertrain parts.
- 360° Pivoting Long Handle: Offers complete freedom of movement around the jack, enabling pumping and control from any convenient angle.
- One-Man Operation Capable: Designed to facilitate efficient removal and installation of heavy components by a single technician, improving shop productivity.
SPECIFICATIONS:
- Model: 3179A
- Low Height: 6.5 inches
- High Height: 31.7 inches
- Front Tilt: 79°
- Rear Tilt: 9°
- Side Tilt: 10–18°
- Head Width: 18.25 inches
- Head Length: 28 inches
- Weight: 319 lbs
- Included in Product (when purchased/shipped): Transmission jack unit with universal saddle and adjustable arms, long handle
HOW TO USE:
- Prepare the Vehicle: Safely lift and support the vehicle on jack stands or a lift, ensuring adequate clearance to work underneath.
- Position the Jack: Roll the AFF 3179A transmission jack underneath the vehicle, aligning it centrally with the transmission or component to be serviced.
- Adjust the Saddle: Use the adjustable arms on the universal saddle to securely cradle the transmission or component. Ensure the component is balanced on the saddle.
- Raise the Component: Operate the pump handle to slowly raise the saddle until it makes firm contact with the component.
- Remove Fasteners: Once supported, remove any bolts, mounts, or connections securing the transmission to the vehicle.
- Lower the Component: Slowly release the hydraulic pressure using the control mechanism, guiding the transmission downwards. Use the tilting head to carefully maneuver the component clear of obstructions.
- Maneuver and Transport: Once the component is completely lowered and detached, carefully roll the jack and component away from underneath the vehicle.
- Installation (Reverse Process): For installation, position the new or serviced transmission on the saddle, raise it to the approximate height, and use the 4-way tilting head for precise alignment with the vehicle's mounting points before securing it.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 3000LB LOW PROFILE TRANSMISSION JACK (3179A):
- Improved Safety: Reduces the risk of injury associated with manually handling heavy and cumbersome transmissions.
- Enhanced Precision: The multi-directional tilting head allows for accurate alignment, simplifying component installation and reducing rework.
- Increased Efficiency: Streamlines the process of transmission removal and installation, leading to faster service times in the workshop.
- Versatile Application: Capable of handling not only transmissions but also differentials, transfer cases, and potentially fuel tanks within its weight capacity.
- Optimized Workspace: The low-profile design ensures effective use of space under vehicles with limited ground clearance.
FEATURES:
- Hydraulic lifting mechanism for controlled raising and lowering of heavy loads
- Engineered with robust steel construction for operational stability
- Powder-coated finish provides resistance against corrosion and scratches
- Equipped with high-capacity industrial swivel casters for smooth shop mobility
- Features a broad base frame for enhanced load distribution
- Tilting cradle offers fine angular adjustments for precise component mating
- Adjustable saddle arms adapt to various component sizes and shapes
- Control handle rotates 360° for versatile pumping and maneuvering
- Designed for single-person component handling
-
