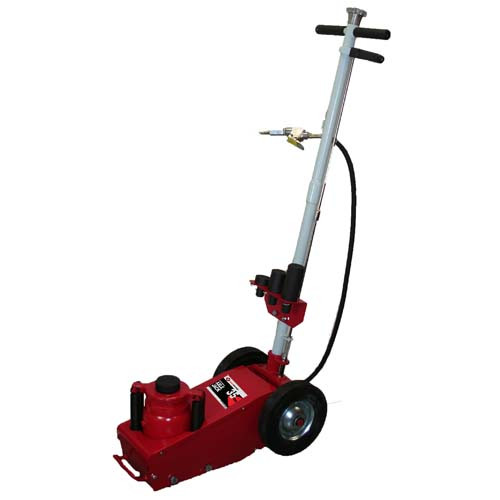

American Forge & Foundry 35-Ton Single Stage Air/Hydr Axle Jack (536)

The American Forge & Foundry 35-Ton Single Stage Air/Hydr Axle Jack (536) is engineered for the demanding world of heavy vehicle maintenance. This robust lifting solution provides substantial 35-ton capacity, making it an indispensable tool for truck and trailer shops, rail and bus maintenance, and crucial roadside service calls. Its advanced air/hydraulic system ensures rapid, controlled lifting and lowering, enhancing efficiency and safety in any professional setting. The thoughtfully designed compact and low-profile chassis allows for optimal access, easily fitting between the wheels of tandem axle vehicles. Constructed with precision and quality in mind, the Model 536 stands as a reliable partner for your toughest lifting challenges.

KEY FEATURES AND BENEFITS:

• High Lifting Capacity: Provides a substantial 35-ton capacity, suitable for a wide range of heavy trucks, trailers, and industrial equipment.
• Efficient Air/Hydraulic Operation: Utilizes a specially engineered high-speed air motor to deliver fast and efficient lifting, significantly reducing service time.
• Compact & Accessible Design: Features a low-profile and compact chassis that allows for maximum access, making it easy to position the jack even between the wheels of tandem axle vehicles.
• Enhanced Stability and Durability: Built with fully welded hydraulic pump and cylinder construction, ensuring increased structural strength and reliable, leak-free operation.
• Superior Mobility: Equipped with large all-terrain rubber wheels, facilitating effortless movement and positioning whether in a busy shop or on varied outdoor surfaces.
• Flexible Positioning: An extra-long handle can be locked in three different positions (90-180 degrees), providing versatile positioning options and improved user ergonomics.
• Controlled Descent: Air-assisted lowering combined with dual return springs ensures a smooth, controlled, and safe descent of the load.
• Safety Assurance: Incorporates a safety overload system that prevents the jack from being operated beyond its rated capacity, protecting both equipment and personnel.

SPECIFICATIONS:

• Capacity: 35 Tons
• Chassis Length: 24.3 inches
• Chassis Width - Front: 8 inches
• Chassis Width - Rear: 12.8 inches
• Duty Level: Heavy Duty
• Handle Length: 42 inches
• Operation: Air/Hydraulic
• Type: Axle Jack
• Low Height: 10.7 inches
• Ram Lift - Stage 1: 5.1 inches
• Saddle Diameter: 1.9 inches
• Extension: 4.92 inches
• Weight: 116 lbs
• Working Air Pressure: 90-150 PSI
• High Height: 23 inches (Total with extensions)
• Reach: 58 inches
• Width: 12.5 inches (Overall width)

HOW TO USE:

• Prepare the Vehicle: Ensure the vehicle is on a stable, level surface. Engage the parking brake and block any wheels that will remain on the ground to prevent movement.
• Connect Air Supply: Connect an air compressor line to the jack's air inlet. Ensure your air compressor can supply the required working air pressure of 90-150 PSI.
• Position the Jack: Roll the axle jack to the desired lifting point under the vehicle's axle or frame. Utilize the extra-long handle and its 3-position lock (90-180 degrees) for optimal positioning.
• Select Extensions: If needed, insert one or more of the provided heat-treated extensions (3/4”, 2-3/4”, or 4”) into the saddle to achieve the necessary lifting height.
• Initiate Lift: Operate the control valve or lever to start the air/hydraulic lifting mechanism. The specially engineered high-speed air motor will rapidly advance the ram to the load.
• Lift to Desired Height: Continue lifting until the vehicle reaches the desired working height. Monitor the stability of the vehicle throughout the lifting process.
• Secure with Stands: Crucially, once the vehicle is lifted, immediately place appropriately rated jack stands under the vehicle at secure support points. The axle jack is a lifting device, not a long-term support device.
• Lower the Jack: Once the vehicle is safely supported by jack stands, activate the air-assisted lowering mechanism. The dual return springs will ensure a controlled and easy descent of the jack's ram.
• Remove Jack: Once the ram is fully retracted, remove the axle jack from under the vehicle.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 35-TON SINGLE STAGE AIR/HYDR AXLE JACK (536):

• Accelerated service times due to high-speed air motor for rapid lifting.
• Enhanced workplace safety with overload protection and smooth descent mechanism.
• Improved maneuverability from compact chassis and large wheels.
• Reliable performance from welded construction and precision machining.
• Versatile applications for trucks, buses, trailers, and agricultural equipment.
• User comfort with an ergonomic, multi-position handle design.

FEATURES:

• Precision-machined internal pump, ram, and cylinders for consistent performance.
• Corrosion-resistant air motor crafted from aluminum and nylon composite materials.
• Advanced motor design for quick ram advancement to the load.
• Equipped with dual return springs for smooth and controlled ram retraction.
• Large 8-5/8 inch diameter rear wheels for effortless movement and positioning.
• Includes three distinct heat-treated extensions for varied lifting heights.
• Integrated in-line filter to protect the air motor from potential contaminants.
• Supplied with a convenient two-piece handle for ease of assembly and use.
