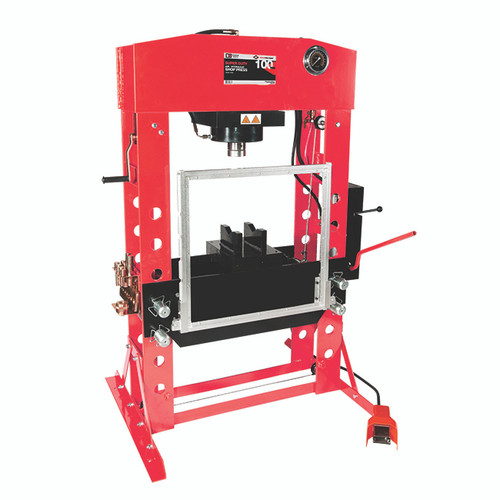

American Forge & Foundry 100-Ton Super-Duty Shop Press (859ASD)

The American Forge & Foundry 100-Ton Super-Duty Shop Press (859ASD) is an exceptionally robust and versatile machine engineered for demanding pressing, straightening, bending, and stamping operations. Constructed with a fully welded frame and heavier gauge steel, this shop press delivers outstanding strength and reliability for industrial, automotive, and heavy truck repair environments. Its design integrates advanced features like a lateral head adjuster for enhanced versatility and a dual air motor for increased operational speed. Operator safety is prioritized with a shatter-resistant polycarbonate guard, a large liquid-filled glycerin gauge for accurate force display, and comprehensive overload protection. Ideal for professional shops requiring high-capacity pressing, the 859ASD comes complete with essential accessories to tackle a wide range of tasks efficiently and safely.

KEY FEATURES AND BENEFITS:

• 100-Ton Pressing Capacity: Provides significant force for heavy-duty applications, allowing you to handle large and stubborn components.
• Fully Welded Frame Construction: Ensures superior structural integrity and longevity, minimizing deflection under extreme loads.
• Heavier Gauge Steel: Offers enhanced durability and stability, built to withstand continuous rigorous use in demanding environments.
• Lateral Head Adjuster: Allows smooth side-to-side movement of the press head, providing versatility for off-center pressing and a wider working range.
• Dual Air Motor Operation: Accelerates pressing and retraction speeds, significantly improving workflow efficiency.
• Heavy-Duty Cable Winch System: Enables effortless and quick adjustment of the press bed height, reducing physical strain and setup time.
• Shatter-Resistant Polycarbonate Guard: Offers a critical safety barrier, protecting the operator from potential flying debris during operation.
• Large Liquid-Filled Glycerin Gauge: Provides clear and accurate display of applied pressing force, allowing for precise control and preventing over-pressurization.
• Included Accessories: Comes with a 2-piece press plate set and a 10-piece pin and bearing press adapter set, expanding immediate utility for various pressing jobs.

SPECIFICATIONS:

• Capacity: 100 Tons (200,000 lb.)
• Bed Depth: 13.50 inches
• Bed Height: 18.5 - 46.1 inches
• Bed Rail Opening: 11.8 inches
• Bed Width: 31.00 inches
• Height: 84 inches
• Number of Bed Adjustments: 6
• Ram Stroke: 11.58 inches
• Throat Depth: 9.00 inches
• Throat Width: 16.50 inches
• Width: 55 inches
• Working Air Pressure: 110 - 125 PSI
• Standards: ASME PASE 2014
• Duty Level: Super Duty
• Included with Product: 2-piece press plate set, 10-piece pin and bearing press adapter set

HOW TO USE:

1. Preparation: Ensure the press is on a level, stable surface. Connect the air supply to the dual air motor if using pneumatic operation, ensuring working air pressure is between 110-125 PSI.
2. Adjust Bed Height: Use the heavy-duty cable winch system to effortlessly raise or lower the press bed to the desired working height. Secure the bed firmly using the bed pins.
3. Position Workpiece: Carefully place the workpiece on the press bed or on the included press plates/V-blocks. Utilize the lateral head adjuster to position the pressing head directly over the target area if needed.
4. Select Accessories: Choose the appropriate pin or bearing press adapter from the 10-piece set, or use the 2-piece press plate set, depending on the specific pressing task.
5. Initiate Pressing: Operate the pump handle for manual hydraulic action or engage the dual air motor for faster pneumatic pressing. Monitor the large liquid-filled glycerin gauge to observe the applied force.
6. Monitor and Stop: Continuously observe the pressing process and the force gauge. Stop pressing once the desired result is achieved or the required force is reached.
7. Release Pressure: Retract the ram to release pressure and remove the workpiece.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 100-TON SUPER-DUTY SHOP PRESS (859ASD):

• This shop press provides exceptional power and control for a wide array of heavy-duty applications.
• Its robust build quality ensures reliability and a long service life, even in demanding industrial settings.
• The air/hydraulic operation coupled with the dual air motor significantly speeds up tasks, boosting overall productivity.
• Precision is maintained through the lateral head adjuster and accurate force gauge, allowing for intricate work and preventing material damage.
• Operator safety is paramount, with a comprehensive shield and overload protection.
• The effortless bed adjustment system reduces physical strain, making it user-friendly for extended operations.

FEATURES:

• Designed for straightening, bending, pressing, and stamping operations.
• Features a heavy-duty cable winch system for simple bed height adjustments.
• Liquid-filled glycerin gauge provides precise pressing force readings.
• Integrated shatter-resistant polycarbonate guard for enhanced operator safety.
• Includes a versatile 2-piece press plate set for diverse applications.
• Comes with a 10-piece pin and bearing press adapter set for specialized tasks.
• Operates with a dual air motor, ensuring rapid pressing and retraction.
• Lateral head adjuster allows the pressing ram to move smoothly side-to-side.
• Constructed with heavier gauge steel for superior strength.
• Adheres to ASME PASE 2014 safety standards.
• Adjustable bed height with 6 distinct positions for varied workpiece sizes.
• Overload protection mechanism for added safety during use.
