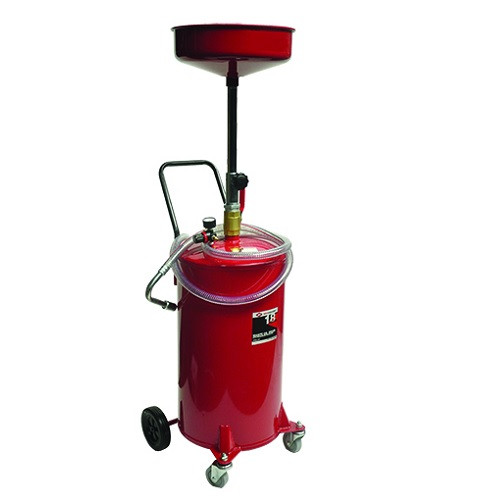

American Forge & Foundry 18-Gal Waste Oil Drain w/Air Evac (8893)

The American Forge & Foundry 18-Gal Waste Oil Drain w/Air Evac (8893) is an essential tool for any automotive or heavy-duty service shop. Designed for efficient and clean collection of used motor oil, transmission fluid, and other automotive liquids, this unit combines robust construction with practical features to streamline your fluid disposal process. Its generous 18-gallon capacity minimizes the frequency of emptying, while the integrated air evacuation system allows for quick and mess-free fluid transfer to a larger storage tank. Built with a powder-coated steel tank and supported by professional-grade wheels and casters, the AFF 8893 offers both stability and mobility, making it a reliable addition to your workspace. The adjustable drain tube accommodates a wide range of vehicle heights, ensuring versatility for various applications.

KEY FEATURES AND BENEFITS:

• 18-Gallon Steel Recovery Tank: Provides ample capacity for collecting waste fluids, reducing the need for frequent emptying and improving workflow efficiency.
• Air Evacuation System: Allows for fast and clean emptying of the tank using standard shop air, minimizing spills and reducing labor time. Includes a pre-set pressure regulator for safe operation.
• Extendable Drain Tube (43.5" to 71"): Offers significant height adjustability, making it suitable for draining fluids from a wide variety of vehicles, from low-profile cars to taller trucks and equipment.
• Tank-Mounted Oil Level Sight Gauge: Enables easy visual monitoring of the fluid level inside the tank, preventing overfilling and ensuring safe operation.
• Heavy-Duty Mobility: Supported by professional-grade fixed-axle wheels and swivel casters, providing stable support and easy maneuverability across your shop floor.
• Wire-Reinforced Drain Hose: A 6-foot wire-reinforced drain hose ensures flexibility and resistance to kinking and wear, extending the life of the unit.

SPECIFICATIONS:

• Application: Oil
• Style: Air Evacuation
• Tank Capacity: 18 Gallons
• Drain Tube Extension: 43.5" to 71"
• Drain Funnel Size: 14" x 5" (deep)
• Ship Weight: 66 lbs.
• Included in Product: 18-gallon powder coated steel recovery tank, 6-foot wire-reinforced drain hose, tank-mounted oil level sight gauge, standard 14" x 5" deep drain funnel, extendable drain tube, pre-set pressure regulator, heavy-duty fixed-axle wheels, heavy-duty swivel casters

HOW TO USE:

1. Position the Drain: Roll the waste oil drain to the desired location under the vehicle or equipment from which you are draining fluid.
2. Adjust Height: Extend or retract the drain tube to match the height of the fluid pan or drain plug, ensuring the funnel is directly beneath to catch all fluids.
3. Open Drain Plug: Carefully remove the vehicle's drain plug or open the fluid pan. Allow all waste fluid to flow into the 14-inch deep funnel.
4. Monitor Level: Keep an eye on the tank-mounted oil level sight gauge to ensure the tank does not overfill.
5. Evacuate (When Full or Done): Once the fluid draining is complete or the tank needs emptying, connect your shop's compressed air line to the unit's air inlet. The pre-set pressure regulator will manage the pressure, and the collected fluid will be pushed out through the drain hose into a larger disposal container.
6. Clean Up: Disconnect the air line, cap the drain hose, and store the unit in a safe location.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 18-GAL WASTE OIL DRAIN W/AIR EVAC (8893):

• Increased Efficiency: Reduces the time and effort required for waste fluid collection and disposal.
• Cleaner Workspace: The large funnel and air evacuation system minimize spills and messes, helping to maintain a cleaner and safer shop environment.
• Cost Savings: Helps prevent fluid waste and potential environmental clean-up costs associated with spills.
• Versatile Application: Adaptable to various vehicle sizes and fluid types, making it a versatile tool for different service needs.
• Enhanced Safety: The sight gauge and controlled air evacuation reduce the risk of overfilling and exposure to hazardous waste fluids.

FEATURES:

• Powder coated steel tank construction
• Professional-grade rolling fixed-axle wheels
• Swivel casters for directional movement
• Integrated pre-set pressure regulator for evacuation
• Generous 14-inch diameter, 5-inch deep collection funnel
• Robust wire-reinforced drain hose
• Visible tank-mounted fluid level indicator
• Quick-connect air input for easy emptying
