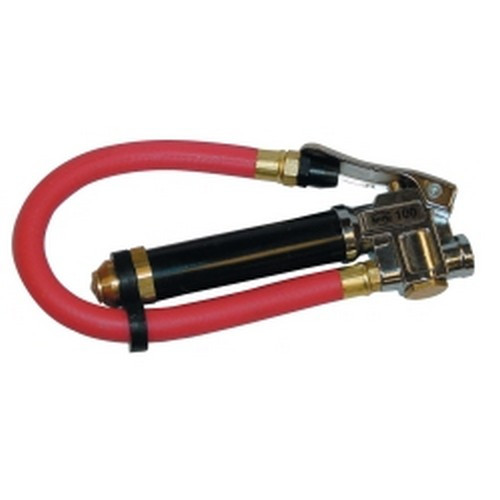

Amflo Staight-On Tapered Chuck Inflator (100D)

The Amflo Staight-On Tapered Chuck Inflator (100D) is a professional-grade tool crafted for precise tire pressure management across a wide range of applications, from home garages to demanding commercial environments. Engineered with quality materials, this inflator provides accurate and consistent readings, essential for maintaining optimal tire performance, safety, and fuel efficiency. Its thoughtful design prioritizes user convenience and longevity, making it a valuable addition to any toolkit focused on vehicle care. The robust construction ensures it stands up to frequent use, while its clear, easy-to-read gauge allows for confident adjustments. Whether you're topping off car tires or handling light commercial vehicle maintenance, the Amflo 100D delivers reliable results, helping extend tire life and improve vehicle handling.

KEY FEATURES AND BENEFITS:

• Robust Construction: Manufactured with heavy chrome-plated castings and internal brass components, providing exceptional longevity and resistance to wear.
• Gauge Protection: Features a protective sleeve positioned over the dial tube, safeguarding the pressure gauge from potential impacts during use.
• Secure Handling: Equipped with a plated steel handle that is securely riveted to the body, ensuring a firm, non-slip grip and stable operation.
• Precise Measurement: Incorporates a solid brass bar gauge, meticulously calibrated to measure pressure from 10 to 120 PSI in precise 2 PSI increments, allowing for accurate inflation.
• Extended Reach: Comes with a 12-inch flexible rubber hose, offering ample reach and maneuverability for various tire valve positions.
• Standard Connection: Features a standard 1/4-18 NPT female inlet thread on the inflator body, allowing for straightforward connection to most air compressor lines.

SPECIFICATIONS:

• Model Number: 100D
• Pressure Range: 10 to 120 PSI
• Pressure Increment: 2 PSI
• Hose Length: 12 inches
• Inlet Thread: 1/4-18 NPT Female
• Included: Amflo Straight-On Tapered Chuck Inflator (100D) with 12" hose

HOW TO USE:

1. Prepare Your Air Source: Connect the inflator's 1/4-18 NPT female inlet thread to your air compressor hose. Ensure your air compressor is turned on and set to a pressure not exceeding 300 PSI.
2. Access the Tire Valve: Remove the valve cap from the tire you intend to inflate.
3. Attach the Chuck: Firmly press the straight-on tapered chuck of the inflator onto the tire valve stem. Ensure a snug fit to prevent air leakage.
4. Read the Pressure: While the chuck is attached, observe the solid brass bar gauge to read the current tire pressure.
5. Adjust Pressure:
   • To Add Air: Squeeze the handle of the inflator to allow compressed air to flow into the tire. Monitor the gauge until the desired pressure is reached.
   • To Release Air: If the pressure is too high, slightly depress the side lever or button (if present) on the inflator, or gently push the valve core with the tip of the chuck (if no specific release mechanism is present) to release air. Re-check the pressure.
6. Remove and Recap: Once the desired tire pressure is achieved, remove the inflator chuck from the valve stem and replace the tire valve cap.

BENEFITS OF USING AMFLO STAIGHT-ON TAPERED CHUCK INFLATOR (100D):

• Enhanced Vehicle Safety: Proper tire pressure contributes significantly to road safety by ensuring optimal handling, braking, and stability.
• Improved Fuel Efficiency: Correctly inflated tires reduce rolling resistance, leading to better gas mileage and lower fuel costs.
• Extended Tire Lifespan: Maintaining recommended tire pressure prevents premature or uneven tire wear, maximizing the life of your tires.
• Reliable Performance: The robust construction and precise gauge provide consistent and accurate inflation, reducing guesswork and errors.
• Versatile Application: Suitable for a wide range of vehicles, from passenger cars to light commercial trucks, making it a versatile tool for various needs.
• User-Friendly Operation: The straightforward design and comfortable grip make it easy for anyone to use, regardless of experience level.

FEATURES:

• Tapered Chuck Design: Allows for a secure and straightforward connection to standard tire valve stems.
• Impact-Resistant Gauge Cover: A protective layer shields the crucial pressure dial from accidental drops or bumps.
• Fixed Handle Assembly: The handle is permanently attached, ensuring it won't loosen or detach with repeated squeezing.
• Visible Brass Bar: The solid brass pressure indicator provides clear and immediate readings against a contrasting background.
• Flexible Hose Material: The rubber hose bends easily, allowing access to valves in confined or awkward spaces.
• Standardized Air Inlet: Compatible with common shop air lines and compressor hoses.
