Description
Details:

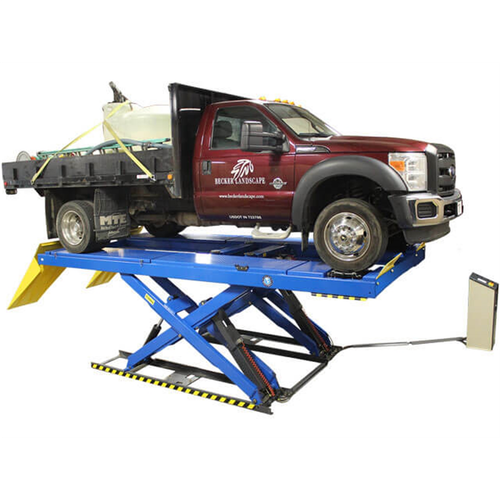

The Atlas® PX-16A (16,000 lb. capacity) scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans.
The Atlas® PX-16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches, and an extra 18" or 24" with the optional set of front extensions.
The Atlas® PX-16A includes a set of turntables and the runway jack rail is designed to accommodate optional rolling jacks. The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit. This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.
This is perfect alignment lift for those service departments that do alignments on a variety of vehicles that may include a Smart Car® all the way to an F-450 dual wheel truck.
Features:
- 16,000 lb. Capacity
- Wheels Free System
- Heavy Duty Construction and super- balanced lift for wheel alignment
- Can be surfaced mounted or flush mounted
- Recessed Turntables
- Very precise platform leveling accuracy
- Mechanical safety lock with air operated engagement and release
- Emergency manual pump for lowering
- Extra Long Slip Plates allow for 4-wheel aligning of wheelbases from 184" to 96"
- Shipping Dimensions: (2 boxes) 198" x 53" x 29 1/2"
- Shipping Weight: 5,500 lbs
Includes
- Overload valve
- Air Line Kit Routing Sytem
- Lowering speed control valve
- Recessed turntables
- Mounting Hardware
Specifications:
Capacity 16,000 lbs Lifting Height 71 1/2" (5' 11 1/2") Clearance Under Runway 63 3/4" (5' 3 3/4") Overall Width 94" (7' 10") Overall Length w/Approach Ramps 271" (22' 7")
294" (24' 6") w/extensionsOverall Length w/o Approach Ramps 206 1/2" (17' 2 1/2")
229 1/2" (19' 1 1/2") w/extensionsApproach Ramp Length 66" (5' 6") 4-Wheel Alignment Wheelbase 204" (17') Max. w/extensions
184" (15' 4") Max. w/o extensions
96" (8') Min.2-Wheel Alignment Wheelbase 210" (17' 6") Max. w/extensions
188 1/2" (15' 8 1/2") Max. w/o extensionsRunway Width 23 3/4" (1' 11 3/4") Lowered Height 13 1/4" Locking Positions 18 Width Between Runways 44 7/8" (3' 8 7/8") Width Between Runways Rails 41 3/8" (3' 5 3/8") Motor 4 HP 220 volt +/- 5% (209-231volts) 1 phase
30 amp breaker is required.Oil Requirement 3-5 Gallons AW32/AW46 Weight 6,200 lbs -
