Description

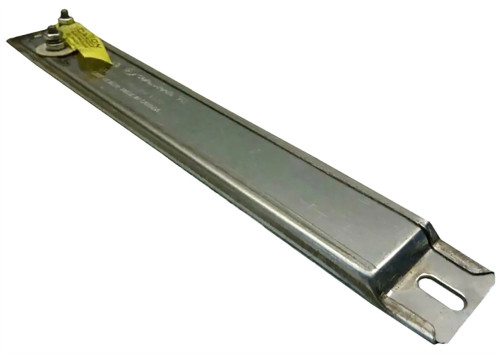

The Caloritech 17.75" 120V 500W SS Series Strip Heater (SS1261) is a high-performance industrial heating component engineered for a wide array of demanding applications. This precise heating solution is built to deliver consistent and efficient warmth for various industrial processes, including surface heating, air heating, and moisture protection. Manufactured by Caloritech, a trusted name under Thermon Heating Systems, Inc., the SS1261 is recognized for its reliable operation and robust construction, featuring an aluminized steel sheath that ensures long-term performance in challenging environments. Its standard mounting holes and compatibility with external control systems make it a versatile addition to any industrial setup requiring controlled thermal management. From preventing freezing in critical equipment to maintaining optimal temperatures in manufacturing processes, the SS1261 offers a dependable and economical heating solution.
KEY FEATURES AND BENEFITS:
- Effective and reliable heating: Offers a precise 500W output at 120V for targeted industrial tasks.
- High-temperature resistance: Constructed with aluminized steel for durability and resistance up to 1000°F (538°C).
- Easy installation: Includes integrated slotted mounting holes for quick and secure attachment.
- Versatile application: Ideal for heating platens, dies, motors, and winterizing components.
- Temperature control compatibility: Works with external control panels and thermostats for adjustable heating.
- Certified safety: CSA and UL certified, meeting industrial electrical heating standards.
SPECIFICATIONS:
- Model Number: SS1261
- Length: 17.75 inches
- Width: 1.5 inches
- Height: 1.5 inches
- Voltage: 120V AC
- Wattage: 500 Watts
- Amperage: 4.17 Amps
- Sheath Material: Aluminized Steel
- Maximum Sheath Temperature: 1000°F (538°C)
- Terminals: Two offset bolt-type terminals (#10-32 screw size)
- Mounting Type: Surface Mount
- Slotted Hole Length: 5/8"
- Slotted Hole Width: 9/32"
- Certifications: CSA, UL Safety Certified
- Manufacturer's Warranty: 1 year limited warranty
HOW TO USE:
- Preparation: Before installation, ensure the power supply is disconnected. Verify that the operating voltage matches the heater's 120V requirement.
- Mounting: Securely attach the strip heater to the desired surface (e.g., platen, oven wall, motor housing) using appropriate fasteners through the integrated slotted mounting holes. Ensure proper alignment and stability.
- Wiring: Connect the two offset bolt-type terminals of the heater to your power source and control system (e.g., thermostat, control panel) according to electrical codes and manufacturer guidelines. For voltages exceeding 300V to ground, use secondary insulators.
- Temperature Control (Optional): If precise temperature control is needed, integrate the heater with a compatible external control panel (such as Caloritech™ CPA or CPB) or a suitable thermostat. Follow the instructions provided with your chosen control device.
- Power On: Once installation and wiring are complete and verified, safely restore power to the system. Monitor the heater to ensure it is functioning as expected and reaching the desired temperature.
BENEFITS OF USING CALORITECH 17.75" 120V 500W SS SERIES STRIP HEATER (SS1261):
- Consistent Heat Output: Delivers a steady 500W of heat, ensuring uniform temperature distribution for various industrial applications.
- Corrosion Resistance: The aluminized steel sheath provides protection against corrosion, extending the heater's operational lifespan in industrial environments.
- Broad Application Suitability: Effective for heating surfaces, air, and preventing moisture, making it a versatile tool for diverse industrial needs.
- Safety Assured: CSA and UL safety certifications confirm that the product meets high safety and quality standards, contributing to a secure work environment.
- Energy Efficient: Provides efficient thermal transfer for targeted heating, helping to manage operational costs.
- Long-Term Reliability: Engineered for continuous operation, reducing the need for frequent replacements and minimizing downtime.
- Simplified Installation: Integrated mounting holes streamline the setup process, allowing for quick and secure placement.
FEATURES:
- Designed for economical and wide-ranging industrial heating requirements.
- Features a compressed aluminized steel sheath for enhanced durability and appearance.
- Equipped with two bolt-type terminals positioned offset at one end for electrical connections.
- Compatible with external control devices like heating control panels and various thermostats.
- Includes pre-drilled slotted mounting holes for straightforward surface attachment.
- Can operate effectively at voltages lower than 120V to achieve reduced wattage output.
- Manufactured with an internal construction optimized for efficient heat transfer.
- Provides 1,706 Btu/hour of heat output.
- Offers a watt density of 9.7 Watts per square inch.
-
