Description

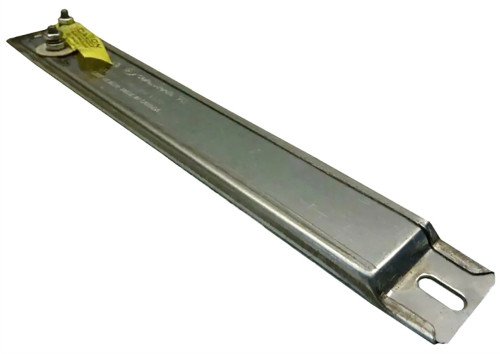

The Caloritech 23.5" 240V 1000W 1200F SS Series Strip Heater (SS2412) is an industrial-grade electric heating component designed to deliver reliable and consistent heat for a wide range of applications. Constructed with a durable stainless steel sheath, this strip heater is engineered to withstand demanding operational environments and provide effective heat transfer up to a maximum sheath temperature of 1200°F (649°C). Its versatile design makes it an excellent choice for surface heating, process air heating, and protective applications in manufacturing, commercial, and OEM settings. The SS2412 is a hardwired unit, ensuring secure and permanent installation, and it is UL and CSA safety certified, guaranteeing compliance with established safety standards.
KEY FEATURES AND BENEFITS:
- High Temperature Capability: Reaches a maximum sheath temperature of 1200°F (649°C), suitable for processes requiring significant heat.
- Robust Construction: Stainless steel sheath provides excellent resistance to corrosion and mechanical stress, extending product lifespan.
- Efficient Heat Transfer: Internally designed with high-temperature alloy resistance wire uniformly coiled and embedded in a special refractory material for optimal heat distribution.
- Versatile Application: Ideal for surface heating, process air heating, and winterizing in diverse industrial and commercial environments.
- Safety Certified: UL and CSA listed, ensuring the product meets rigorous safety and performance standards for peace of mind.
- Simple Integration: Features offset bolt-type terminals and slotted mounting holes for straightforward installation into various equipment and setups.
SPECIFICATIONS:
- Model Number: SS2412
- Voltage: 240V
- Wattage: 1000W
- Maximum Product Temperature (Sheath): 1200°F (649°C)
- Length: 23.5 inches
- Width: 1.5 inches
- Height/Thickness: 1.5 inches
- Construction Material: Stainless Steel Sheath
- Terminals: Two offset bolt-type terminals
- Terminal Screw Size: #10-32
- Mounting: Surface Mount with slotted holes
- Slotted Hole Dimensions: 5/8" L x 9/32" W
- Watt Density: 13.7 Watts/in²
- Heat Output: 3,412 Btu/hour
- Amperage: 4.16 Amps
- Safety Certifications: CSA, UL
- Thermostat: Not included (external control recommended for temperature regulation)
- Wiring: Hardwired
HOW TO USE:
- Preparation: Ensure the power supply is disconnected at the source before beginning any installation or wiring. Verify that the intended mounting surface is clean, smooth, and made of a suitable heat-conductive material if surface mounting.
- Mounting: Position the Caloritech SS2412 strip heater on the desired surface. Secure the heater firmly using the integrated slotted mounting holes. For optimal heat transfer in surface applications, ensure the heater is clamped along its entire length to a smooth metal surface. If supported only by mounting tabs, firmly secure the terminal end and allow the opposite end to be slightly loose to accommodate thermal expansion.
- Wiring: Connect the 240V power supply wires to the #10-32 bolt-type terminals on the heater. Ensure all electrical connections are secure and comply with local electrical codes. For applications requiring temperature control, integrate a compatible external thermostat or control panel, such as a Caloritech™ CPA or CPB unit, into the electrical circuit.
- Power On and Testing: Once installation and wiring are complete, carefully restore power. Monitor the heater's initial operation to confirm it is functioning correctly and heating as expected.
- Maintenance: Regularly inspect the heater and its connections for any signs of wear, damage, or loose wiring. Ensure proper ventilation around the heater to prevent overheating and maintain operational efficiency.
BENEFITS OF USING CALORITECH 23.5" 240V 1000W 1200F SS SERIES STRIP HEATER (SS2412):
- Reliable Performance: Provides consistent and predictable heat output for critical industrial processes.
- Long Service Life: Built with high-quality stainless steel and robust internal components designed for extended operation in demanding environments.
- Energy Efficient: Delivers targeted heat where needed, reducing wasted energy in various applications.
- Enhanced Process Control: When paired with an external control system, it allows for precise temperature management, improving process accuracy and product quality.
- Broad Application Suitability: Effective for diverse heating needs, from maintaining temperatures in tanks and platens to preventing condensation in electrical panels.
- Safety Assurance: UL and CSA certifications provide confidence in the product's design and operational safety.
FEATURES:
- Robust external stainless steel sheath construction.
- Precisely wound high-temperature alloy resistance wire for consistent heating.
- Embedded in a specialized, semi-vitrified refractory insulation material.
- Designed for surface mounting with convenient slotted holes.
- Equipped with two offset bolt-type electrical terminals.
- Can be operated at lower voltages for reduced wattage output.
- Hardwired design ensures a secure and permanent electrical connection.
- Optimized watt density for efficient heat generation.
- Suitable for both radiant and convection heating applications.
- Withstands high operational pressures due to compressed internal assembly.
-
