Description

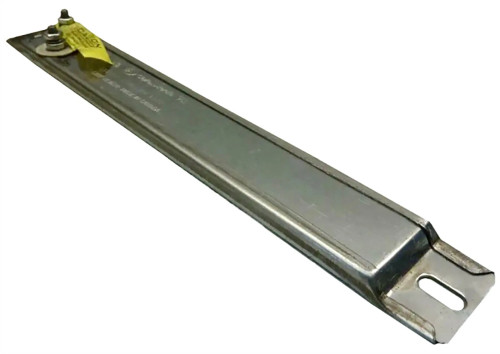

The Caloritech 35.75" 240V 1000W 1200F SS Series Strip Heater (SS2532) is a high-performance industrial strip heater designed for a broad range of heating applications where precise and consistent thermal energy is required. Measuring 35.75 inches in length and constructed with a stainless steel sheath, this 1000W, 240V heater is built to operate efficiently and reliably in demanding industrial environments, with a maximum exposure temperature of 1200°F (649°C). Its robust construction ensures extended operational life and stable heat output for various industrial processes.
KEY FEATURES AND BENEFITS:
- High-Temperature Capability: Operates effectively at temperatures up to 1200°F (649°C), making it suitable for applications requiring significant heat.
- Stainless Steel Sheath: Provides corrosion resistance and extended life, especially in harsh industrial conditions, superior to aluminized steel options for higher temperatures.
- Efficient Heat Transfer: Designed for optimal heat transfer when securely clamped to a smooth metal surface, ensuring efficient use of power.
- Versatile Heating Source: Functions effectively for both surface heating (e.g., platens, dies, molds) and process air heating (e.g., ovens, drying cabinets).
- Moisture Protection: Ideal for preventing condensation and moisture in critical industrial components like motors, control panels, and hoppers.
- Industry Certifications: CSA and UL Safety Certified, indicating compliance with recognized safety standards.
SPECIFICATIONS:
- Model Number: SS2532
- Length: 35.75 inches (35-3/4 inches)
- Width: 1.5 inches
- Wattage: 1000 W
- Voltage: 240 V
- Maximum Exposure Temperature: 1200°F (649°C)
- Sheath Material: Stainless Steel
- Watt Density: 8.4 W/in²
- Terminals: Two offset bolt-type
- Screw Size: #10-32
- Slotted Hole Dimensions: 5/8" L x 9/32" W
HOW TO USE:
- Mounting: Securely clamp the strip heater along its entire length to a smooth, clean metal surface. Ensure the surface is flat to maximize contact for optimal heat transfer. The end without the terminals should remain slightly loose to allow for thermal expansion during operation.
- Electrical Connection: Connect the 240V power supply to the two offset bolt-type terminals. Ensure all electrical connections are secure and conform to local electrical codes.
- Temperature Control (Optional): For precise temperature management, integrate a separate control device. This can be a dedicated Caloritech CPA or CPB control panel, a mechanical thermostat, or a surface-mounted bi-metal thermostat.
- Power On: Once securely mounted and wired, apply power to the heater. Monitor the initial operation to ensure proper function.
- Safety Precautions: Always observe safety guidelines. If the voltage to ground exceeds 300V, secondary insulators must be utilized. Ensure adequate ventilation in the application area if necessary.
BENEFITS OF USING CALORITECH 35.75" 240V 1000W 1200F SS SERIES STRIP HEATER (SS2532):
- Choosing the Caloritech SS2532 strip heater offers several advantages for industrial operations. Its specialized construction with a high-temperature alloy resistance wire embedded in a refractory material ensures uniform heating and consistent performance over time.
- The heater's robust design minimizes downtime and maintenance, contributing to operational efficiency.
- Its ability to serve as a heating component for critical equipment such as control panels and motors provides essential protection against moisture and cold, extending the lifespan of these valuable assets.
- The recognized CSA and UL safety certifications provide assurance of quality and adherence to industry standards, making it a dependable choice for process heating and thermal management needs.
FEATURES:
- High-temperature alloy resistance wire heating element.
- Uniformly coiled and spaced resistance wire for even heat distribution.
- Refractory material with excellent heat transfer and insulation properties.
- Semi-vitrified refractory material for a resilient heating element.
- Designed for secure surface mounting to optimize thermal contact.
- Allows for thermal expansion at the non-terminal end.
- Suitable for both primary heating and anti-condensation applications.
- Can be operated at lower voltages for reduced wattage output.
- Optional ceramic post terminal covers available for enhanced protection.
- Compatible with external temperature control systems for precise regulation.
-
