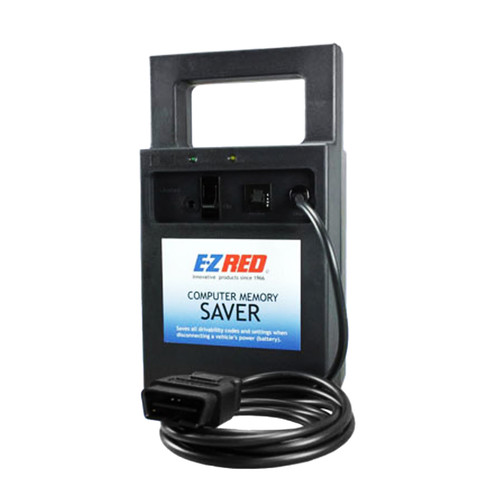

EZ Red Automotive Memory Saver (MS4000)

The EZ Red Automotive Memory Saver (MS4000) is an indispensable tool for anyone performing a vehicle battery replacement. When a car's main battery is disconnected, crucial electronic settings and codes can be lost, leading to frustrating issues such as anti-theft radio lockouts, reset clocks, lost keyless entry programming, and cleared diagnostic trouble codes. The MS4000 is engineered to prevent these problems by providing continuous power to the vehicle's electronic systems, ensuring all your important data remains intact throughout the battery swap process.

This self-contained unit features a direct-wired OBDII connector, making it incredibly easy to use. Simply plug it into your vehicle's OBDII diagnostic port, and its internal 12-volt, 4.5 amp-hour sealed lead-acid battery will supply the necessary power. The MS4000 comes with a built-in charger, allowing you to easily prepare it for use. It's an essential tool for DIY mechanics and professionals alike, saving time and avoiding the potential expenses associated with reprogramming vehicle electronics.

KEY FEATURES AND BENEFITS:

• Preserves Vital Vehicle Data: Saves all driveability codes and settings when disconnecting or changing a vehicle’s starter battery, preventing common issues like lost radio codes or engine light resets.
• Comprehensive Memory Protection: Protects settings for anti-theft radios, clocks, keyless entry systems, alarms, cell phone settings, GPS memory, TPMS (Tire Pressure Monitoring System), and various other memory-related functions, ensuring a seamless battery replacement experience.
• Integrated Power Source: Includes a 12 volt, 4.5 amp-hour sealed lead acid battery directly inside the unit, making it a self-sufficient tool that doesn't require external power during operation.
• Direct OBDII Connection: Features a direct-wired OBDII connector that plugs directly into the vehicle’s OBDII port, offering a simple and secure connection for effective memory preservation.
• User-Friendly Indicators: A green LED clearly indicates a successful connection to the vehicle's circuit, while an amber LED alerts you when the internal battery voltage drops to 11.6 volts or lower, signaling it needs recharging soon.
• Built-in Charging Capability: Comes with a built-in charger for its internal battery, allowing for convenient recharging and ensuring the unit is always ready for its next use.

SPECIFICATIONS:

• Internal Battery Type: 12 volt, 4.5 amp hour sealed lead acid battery
• Internal Battery Charger: Built-in
• Circuit Breaker Protection: 4 amp
• Indicators: Green LED (Connection), Amber LED (Low Internal Battery: 11.6V or lower)
• Connection Type: Direct-wired OBDII connector
• Included in Product: EZ Red Automotive Memory Saver (MS4000) unit with built-in battery and OBDII connector

HOW TO USE:

1. Charge the MS4000: Before use, ensure the internal 12-volt battery of your EZ Red MS4000 is fully charged using its built-in charger.
2. Locate OBDII Port: Find your vehicle's OBDII diagnostic port, typically located under the dashboard on the driver's side.
3. Connect to Vehicle: Plug the direct-wired OBDII connector from the MS4000 firmly into your vehicle's OBDII port.
4. Verify Connection: Look for the green LED indicator on the MS4000 to illuminate. This confirms that the unit is properly connected to your vehicle's electronic circuit.
5. Disconnect/Replace Vehicle Battery: With the green LED illuminated, you can now safely disconnect and proceed with replacing your vehicle's main starter battery. The MS4000 will continuously supply power to maintain all electronic settings.
6. Reconnect Vehicle Battery: Once the new vehicle battery is securely installed and reconnected, ensure all terminals are tight.
7. Disconnect MS4000: After your new vehicle battery is fully connected, unplug the EZ Red MS4000 from the OBDII port. All your vehicle's settings and codes should now be retained.

BENEFITS OF USING EZ RED AUTOMOTIVE MEMORY SAVER (MS4000):

• Avoids costly visits: Prevents the need to reprogram vehicle electronics at a mechanic or dealership after a battery change.
• Maintains personal settings: Keeps clock times, radio presets, and keyless entry codes intact.
• Prevents system lockouts: Stops anti-theft systems from engaging due to a loss of power.
• Retains performance settings: Ensures driveability and engine management codes are preserved.
• Makes DIY easier: Simplifies battery replacement while avoiding technical hassles and reconfiguration.

FEATURES:

• Power control switch: Dedicated on/off switch for convenient operation
• Self-contained design: No external power needed during use
• Secure OBDII connection: Direct-wired plug for reliable memory retention
• Low battery indicator: Amber LED signals internal battery voltage is low
• Built-in protection: Includes a circuit breaker to safeguard both the unit and vehicle
• Charging system: Internal lead-acid battery can be recharged via the built-in charger
• Continuous power supply: Maintains electronic systems during main battery disconnection
• Portable and compact: Weighs approximately 6 pounds for easy storage and handling
