Description

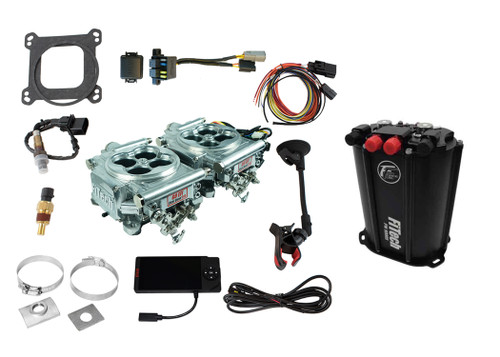

The FiTech 2×4 1200 HP Bright Aluminum EFI w/Force Fuel System (35465) provides a comprehensive electronic fuel injection solution for high-performance engines. This kit includes dual 4-barrel throttle bodies and the powerful Dual Pump Force Fuel delivery system, supporting up to 1200 horsepower. Designed for ease of installation and tuning, it offers a self-learning ECU and user-adjustable settings, making it suitable for a wide range of applications, including those with power adders.
KEY FEATURES AND BENEFITS:
- High Power Support: Supports up to 1200 horsepower on gasoline and 1600 HP on the fuel system itself.
- Dual 4-Barrel Throttle Bodies: Enhance airflow and overall performance.
- Dual Pump Force Fuel System: Ensures consistent fuel delivery with dual 340 LPH pumps.
- Self-Tuning ECU: Simplifies initial setup, while user-tunable options allow for fine-tuning.
- Compatibility: Designed for boosted and nitrous oxide applications.
- Complete Sensor Package: Includes oxygen, MAP, IAT, TPS, and IAC sensors along with wiring harnesses.
- 4.5-Inch Touchscreen Display: For easy system monitoring and adjustments.
- Fuel Compatibility: Works with gasoline, alcohol, methanol, and flex fuel.
SPECIFICATIONS:
- Maximum Horsepower: 1200 HP (gasoline), 1600 HP (fuel system)
- Injection Style: Throttle body
- Throttle Body Mounting Flange: Dual 4-barrel square bore
- Venturi Quantity: 8
- Venturi Diameter: 43 mm
- Airflow Rate: 850 CFM
- Injector Size: 80 lbs/hr
- Fuel Pump Flow Rating: 680 LPH (dual 340 LPH)
- Metering Style: Speed density (MAP-N)
- ECU Included: Yes
- Fuel Pump Included: Yes
- Oxygen Sensor Included: Yes
- MAP Sensor Included: Yes
- IAT Sensor Included: Yes
- TPS Sensor Included: Yes
- Fuel Pressure Regulator Included: Yes
- Compatibility: Boosted and Nitrous Oxide applications, gasoline, alcohol, methanol, flex fuel
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
- Installation of Throttle Bodies: Mount the dual throttle bodies onto the intake manifold using the provided gaskets.
- Fuel System Installation: Install the Force Fuel system, ensuring proper connections to the fuel lines and an external fuel pump.
- Sensor Installation: Mount the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor as per the instructions.
- Wiring Connections: Connect the wiring harness to the sensors, ECU, and fuel pump, following the wiring diagram.
- ECU Setup: Connect the touchscreen display and power on the system. Input basic engine parameters.
- Initial Start-up: Start the engine and allow the self-learning ECU to adjust fuel parameters.
- Fine-Tuning: Use the touchscreen display to monitor and adjust settings as needed.
- Verification: Check for leaks and ensure proper operation of all components.
BENEFITS OF USING THE FITECH 2×4 1200 HP BRIGHT ALUMINUM EFI W/FORCE FUEL SYSTEM (35465):
- Enhanced Engine Performance: Improves throttle response and overall power delivery.
- Improved Fuel Efficiency: More efficient than traditional carbureted systems.
- Simplified Tuning: Self-learning capabilities make setup straightforward.
- Consistent Fuel Delivery: Reliable performance for high-horsepower applications.
- Modernized Engine Management: Electronic control enhances overall functionality.
- Reliable Fuel Delivery: Ensures performance under high stress situations.
FEATURES:
- Integrated ECU: Located within the throttle body for compact installation.
- High-Flow 80 lbs/hr Injectors: Included for efficient fuel delivery.
- Touchscreen Display: For real-time monitoring and easy adjustments.
- Dual Internal Fuel Pressure Regulators: Maintain consistent fuel pressure.
- Complete Sensor Package: Ensures accurate readings for optimal performance.
- Robust Wiring Harness: Provides reliable connections for all components.
- Polished Aluminum Throttle Body Finish: Aesthetic and durable design.
- Multiple Fuel Types: Capable of running various fuel types for flexibility.
-
