Description

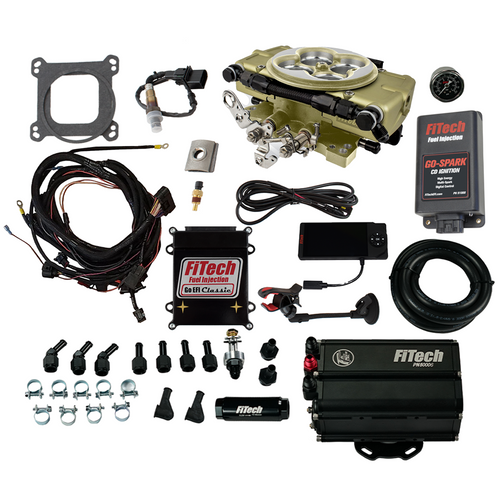

The FiTech Classic Gold 650HP EFI Master Kit w/ CDI Box (93558) provides a complete solution for converting carbureted engines to electronic fuel injection (EFI). Designed for engines up to 650 horsepower, this kit combines the classic look of a carburetor with the modern performance and efficiency of EFI. It includes a throttle body, ECU, CDI ignition, and a fuel delivery system, offering improved fuel economy, smoother idle, and enhanced throttle response.
KEY FEATURES AND BENEFITS:
- This kit is designed for those who desire the vintage aesthetic of a classic carburetor while gaining the modern performance benefits of EFI.
- The self-tuning capability of the system allows for easy setup and adjustments, while the included Go-Spark CDI ignition provides a strong spark for improved combustion.
- The Force Fuel Mini surge tank ensures consistent fuel pressure, preventing fuel starvation and supporting high-performance applications.
- The complete package allows for a straightforward conversion from carburetor to EFI.
SPECIFICATIONS:
- Fuel Injection Style: Throttle body
- Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
- Maximum Horsepower with Gas: 650 HP
- Timing Control Compatible: No
- ECM Included: Yes
- Self Tuning: Yes
- User Tunable: Yes
- Fuel System Included: Surge tank
- Ignition System Included: Ignition box
- User Interface Included: 4.5 in. display
- Metering Style: Speed density
- Throttle Body Mounting Flange: 4-barrel square bore
- Airflow Rate (cfm): 950 cfm
- Injector Size (lbs/hr): 80 lbs./hr.
HOW TO USE:
- Remove Existing Carburetor: Disconnect the fuel lines, linkages, and any other components connected to the existing carburetor. Remove the carburetor from the intake manifold.
- Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gaskets and hardware. Connect the throttle linkage and any necessary vacuum lines.
- Install Sensors: Mount the included oxygen sensor in the exhaust system. Install the MAP sensor, IAT sensor, TPS sensor, and IAC motor as per the instructions.
- Install Fuel System: Mount the Force Fuel Mini surge tank in a suitable location. Connect the fuel lines to the tank, fuel filter, and throttle body, ensuring proper routing and secure connections.
- Install Go-Spark Ignition: Install the Go-Spark CDI ignition box and connect it to the distributor, coil, and power source according to the instructions.
- Connect Wiring Harness: Connect the FiTech wiring harness to the sensors, injectors, ECU, and ignition system. Ensure all connections are secure and properly routed.
- Mount ECU and Display: Mount the ECU in a suitable location, away from excessive heat and moisture. Connect the 4.5-inch display to the ECU for monitoring and adjustments.
- Initial Setup and Calibration: Follow the instructions in the FiTech manual to perform the initial setup and calibration of the EFI system. Start the engine and allow the self-learning feature to adjust fuel delivery.
- Fine-Tuning (Optional): If desired, use the 4.5-inch display to fine-tune the EFI system parameters for optimal performance.
BENEFITS OF USING THE FITECH CLASSIC GOLD 650HP EFI MASTER KIT W/ CDI BOX (93558):
- Improved engine performance and throttle response.
- Enhanced fuel efficiency and reduced emissions.
- Smoother idle and better cold-start performance.
- Reliable fuel delivery with the Force Fuel Mini surge tank.
- Easy installation and self-tuning capabilities.
- Modern EFI performance with a classic carburetor appearance.
FEATURES:
- Dual bolt pattern compatibility for various intake manifolds.
- Compact ECU for discreet mounting.
- Go-Spark CDI ignition for enhanced combustion.
- Internal 340 lph fuel pump within the Force Fuel system.
- Liquid-filled fuel pressure gauge included.
- Ability to accept trigger signals from HEI, amplifier, points, or 2-wire non-magnetic pickup distributors.
- 80 lbs/hr fuel injectors.
- 44.00mm venturi diameter.
- Gold cast aluminum throttle body.
-
