Description

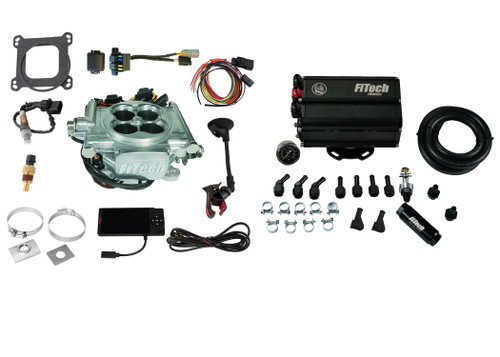

The FiTech EFI 4 600 HP Power Adder Bright Aluminum w/Force Fuel (35506) is a complete solution for high-performance engines. This system replaces traditional carburetors with a modern electronic fuel injection setup, offering improved performance, fuel efficiency, and drivability, especially for boosted applications. It includes the Force Fuel delivery system to ensure consistent fuel supply, a 4-barrel throttle body, and all necessary sensors.
KEY FEATURES AND BENEFITS:
- High Power Support: Designed for engines up to 600 horsepower, ideal for boosted applications (superchargers, turbochargers, nitrous oxide).
- Self-Tuning Capabilities: Simplifies installation and operation, with user-tunable options for fine adjustments.
- Force Fuel System: A surge tank design prevents fuel starvation under high-demand conditions.
- Complete Kit: Includes ECU, wiring harness, sensors, and fuel pump for a comprehensive upgrade.
- Optimal Fuel Delivery: 80 lbs/hr injectors and 850 CFM throttle body for efficient performance.
- Versatile Fuel Compatibility: Works with Alcohol, Gasoline, Methanol, and Flex fuel.
SPECIFICATIONS:
- Maximum Horsepower: 600 HP
- Injection Style: Throttle body
- Throttle Body Mounting Flange: 4-barrel square bore (4150 Flange)
- Airflow Rate: 850 CFM
- Injector Size: 80 lbs/hr
- Fuel Pump Flow Rate: 340 LPH
- Metering Style: Speed density (MAP-N)
- Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
- Timing Control Compatible: Yes
- Power Adder Compatible: Yes (Boost/Nitrous Oxide)
- ECU Included: Yes
- Fuel Pump Included: Yes
- Fuel Pressure Regulator Included: Yes
- Compatibility: Universal for 4-barrel square bore intake manifolds
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing carburetor and fuel lines.
- Mounting: Install the FiTech throttle body onto the intake manifold using the provided gaskets.
- Fuel System Installation: Mount the Force Fuel system and connect the fuel pump and lines according to the instructions.
- Sensor Installation: Install the O2, MAP, IAT, and TPS sensors into their designated locations.
- Wiring: Connect the wiring harness to the ECU and sensors, following the wiring diagram.
- ECU Setup: Mount the ECU and connect the display unit.
- Initial Setup: Connect the battery and follow the on-screen instructions for initial setup and calibration.
- Test and Tune: Start the engine and allow the self-tuning feature to adjust the fuel delivery. Fine-tune as needed.
BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER BRIGHT ALUMINUM W/FORCE FUEL (35506):
- Improved Engine Performance: Enhances throttle response and overall driving experience.
- Enhanced Fuel Efficiency: Provides better fuel economy compared to traditional carburetors.
- Consistent Fuel Delivery: Especially important in high-performance and boosted applications.
- Simplified Installation: User-friendly self-tuning capabilities make setup straightforward.
- Reliable Operation: Reduced risk of fuel starvation with the Force Fuel system.
- Wide Operating Conditions: Reliable performance across various conditions.
FEATURES:
- Polished Aluminum 4-Barrel Throttle Body: Durable and aesthetically pleasing design.
- 80 lbs/hr Fuel Injectors: Provide efficient fuel delivery for high-performance applications.
- External 340 LPH Fuel Pump: Ensures adequate fuel supply.
- 4.5-Inch Display: For real-time monitoring and adjustments.
- Complete Wiring Harness and Sensor Package: Includes everything needed for installation.
- Speed Density (MAP-N) Fuel Metering: Provides accurate fuel management.
- User-Adjustable Calibration Module: For personalized tuning.
- 850 CFM Airflow Rate: Supports high-performance applications.
- 43mm Venturi Diameter: Optimized for enhanced airflow.
-
