Description

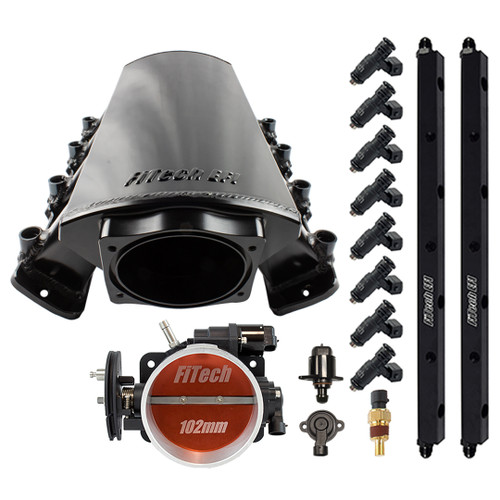

The FiTech Loaded LS7 Aluminum Intake Manifold 750HP Kit (70078) provides a comprehensive solution for upgrading your LS7 engine's induction system. Designed for performance enthusiasts and professional tuners alike, this kit streamlines the installation process, eliminating the need to source individual components. Rated for up to 750 horsepower, it offers a high-performance solution for a wide range of applications. Note that this kit does not include an ECU or handheld controller.
KEY FEATURES AND BENEFITS:
- Complete Kit: Includes all necessary components for a high-performance LS7 fuel injection system, excluding the electronic control unit.
- Throttle Body and Injectors: Features a 102mm throttle body and 55 lb/hr injectors to support significant power gains.
- Durable Construction: Made from aluminum for strength and longevity.
- Precision Fitment: CNC-machined components ensure exact fit and easy installation.
- Installation Hardware: Comes with fuel rails and necessary hardware for a simplified setup.
SPECIFICATIONS:
- Cylinder Head Configuration: Raised Rectangular Port LS7
- Fuel Injection Style: Multi-port
- Operating RPM Range: 1,500-6,500
- Throttle Body Bore Size: 102mm
- Injectors: 55 lbs/hr
- Material: Aluminum
- Finish: Black anodized
- Horsepower Rating: 750 HP
- Required: Aftermarket ECU
HOW TO USE:
- Preparation: Ensure your LS7 engine is properly prepared for intake manifold installation.
- Install Fuel Rails and Injectors: Mount the included billet fuel rails and flow-matched 55 lb/hr injectors onto the intake manifold.
- Attach Throttle Body: Secure the 102mm throttle body to the intake manifold using the provided hardware.
- Connect Fuel Lines: Connect fuel lines to the AN fittings on the fuel rails, ensuring proper sealing.
- Install Intake Manifold: Mount the assembled intake manifold onto the LS7 cylinder heads, using the included O-ring gaskets and hardware.
- Throttle Cable Setup: Connect the throttle cable to the throttle body's progressive linkage pulley.
- ECU Installation: Install and configure your chosen aftermarket ECU to control the fuel injection system.
- Final Checks: Verify all connections and ensure proper sealing before starting the engine.
- Tuning: Tune the engine's fuel and ignition maps via your aftermarket ECU.
BENEFITS OF USING FITECH LOADED LS7 ALUMINUM INTAKE MANIFOLD 750HP KIT (70078):
- Simplified Installation: This complete kit eliminates the hassle of sourcing mismatched parts.
- High-Performance Components: Rated for up to 750 horsepower for enhanced engine capability.
- Reliable Components: All parts are designed for optimal performance and durability.
FEATURES:
- Low-Profile Design: TIG-welded aluminum intake manifold for enhanced performance.
- CNC-Machined Flanges: Equipped with O-ring gaskets for a tight seal.
- Smooth Airflow: Parabolic inlet machining on the throttle body improves air intake.
- Reliable Fuel Rails: Includes billet fuel rails with AN fittings and a fuel crossover line.
- Supplemental Bosses: Machined for added versatility in modifications.
- Aesthetic Finish: Black anodized finish for durability and visual appeal.
-
