Description

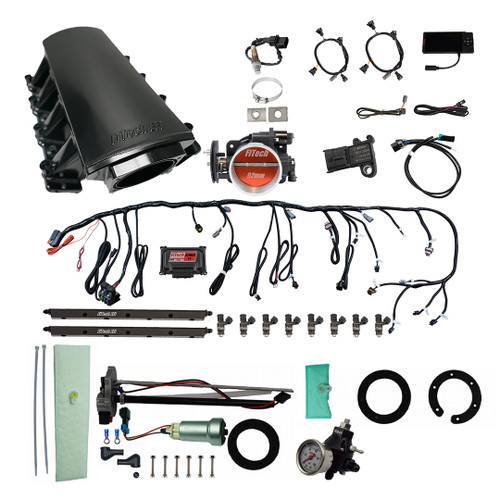

The FiTech LS 500HP EFI w/LS7 Intake, Pump Module & Regulator (76115) provides a comprehensive solution for upgrading your LS engine to modern electronic fuel injection. This kit is designed for engines producing up to 500 horsepower, offering improved performance and fuel efficiency. It includes all necessary components for a straightforward installation, featuring a self-tuning ECU that simplifies the tuning process. The integrated in-tank fuel pump module ensures a reliable fuel supply, making this system a complete upgrade package.
KEY FEATURES AND BENEFITS:
- Self-Learning ECU: Automatically adjusts fuel and spark settings, reducing the need for manual tuning.
- Optimal Airflow: 92mm throttle body and high-volume fuel rails ensure effective airflow and fuel delivery.
- Reliable Fuel Supply: In-tank 440 LPH fuel pump module simplifies installation.
- Signal Compatibility: Supports both 24X and 58X crank and cam signals, suitable for sequential fuel and spark control.
- Touch Screen Controller: Allows for easy adjustments and data logging.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Timing Control: Yes
- Fuel Pump Flow Rating: 440 LPH
- Throttle Body Size: 92mm
- Injector Size: 36 lbs./hr.
- Intake Manifold Material: Aluminum
- ECU: Self-tuning
- Compatibility: LS-based engines, 24X and 58X crank and cam signals, and GM transmissions (Optional Transmission Control)
- Fuel Pump Style: In-tank
HOW TO USE:
- Preparation: Disconnect the battery and remove existing intake and fuel system components.
- Fuel Pump Installation: Install the in-tank fuel pump module in the fuel tank, ensuring proper depth adjustment and secure connections.
- Intake Manifold Installation: Mount the FiTech intake manifold onto the engine, securing it according to the manufacturer's specifications.
- Throttle Body and Fuel Rail Installation: Attach the 92mm throttle body and high-volume fuel rails to the intake manifold.
- Wiring Harness Connection: Connect the plug-and-play wiring harness to the engine sensors, injectors, and ECU.
- ECU and Controller Setup: Mount the ECU and connect the touchscreen controller.
- Oxygen Sensor Installation: Install the Bosch wideband oxygen sensor in the exhaust system.
- Initial Setup: Power on the system and follow the on-screen prompts to set the basic parameters.
- Self-Tuning Process: Allow the ECU to self-tune the engine by driving the vehicle under various conditions.
- Final Adjustments: Use the touchscreen controller to make any necessary fine-tuning adjustments.
BENEFITS OF USING THE FITECH LS 500HP EFI W/LS7 INTAKE, PUMP MODULE & REGULATOR (76115):
- Performance Upgrade: Significant improvement in engine performance and efficiency.
- Simplified Tuning: Self-tuning feature makes tuning accessible for all users.
- Comprehensive Kit: Includes all necessary components, eliminating the need for separate purchases.
- Reliable Fuel Supply: In-tank fuel pump module ensures consistent fuel delivery.
- Custom Camshaft Compatibility: Designed to work with custom camshafts for greater tuning flexibility.
FEATURES:
- Corrosion Resistance: Black anodized aluminum components for durability.
- High-Flow Throttle Body: Cable-operated design for improved airflow.
- Oxygen Sensor Bung: Stainless steel for durability and performance.
- AN Fittings and Fuel Crossover: Ensures secure connections.
- Data Logging: Capabilities via the touchscreen controller for performance monitoring.
- Vacuum Requirement: Designed for applications making at least 6 inches of vacuum at idle.
- Adjustable Pump Module: Configurable for various tank depths.
- Sequential Control: Individual cylinder trim for fuel and spark control.
-
