Description

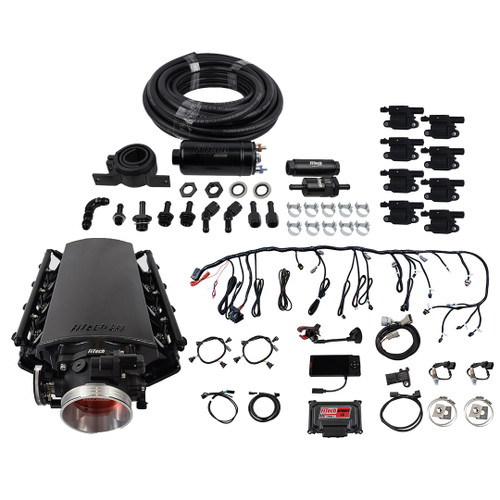

The FiTech LS EFI w/70002 Kit Inline Fuel Pump & LED Coil Pack (79102) is a comprehensive solution designed for LS engine upgrades and swaps. This kit provides a complete electronic fuel injection system, replacing traditional carburetors with modern, efficient fuel delivery. The system includes an ECU, fuel pump, injectors, wiring harness, and a touchscreen controller for easy tuning and monitoring.
KEY FEATURES AND BENEFITS:
- Multi-Port Fuel Injection: Ensures precise fuel delivery, supporting up to 500 horsepower.
- Self-Learning ECU: Simplifies tuning by adapting to engine conditions for optimal performance.
- Complete Installation: Includes fuel pump and wiring harness for straightforward setup.
- Enhanced Airflow: 92mm throttle body and billet fuel rails improve airflow and fuel delivery.
- Touchscreen Controller: Allows for real-time adjustments and data logging.
- Transmission Control: Available for compatible GM transmissions.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Timing Control: Yes
- Power Adder Compatible: Boost/Nitrous oxide
- ECU Included: Yes (self-learning)
- Fuel Pump Included: Yes (external inline)
- Transmission Controller: Yes (for GM 4L60, 4L65, 4L70, 4L80)
- Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
- Intake Material: Aluminum (black anodized)
- Throttle Body: 92mm (1250 cfm)
- Injectors: 36 lbs./hr.
- Display: 4.5-inch touchscreen
HOW TO USE:
- Install the Intake Manifold: Mount the intake manifold and throttle body onto the LS engine.
- Connect Fuel Rails and Injectors: Mount the fuel rails and connect the 36 lbs./hr. injectors.
- Install the Fuel Pump: Install the included fuel pump and connect fuel lines.
- Wiring Harness Connection: Connect the wiring harness to the engine sensors and ECU.
- LED Coil Packs Installation: Install the LED coil packs and connect them to the wiring harness.
- Oxygen Sensor Installation: Mount the oxygen sensor in the exhaust system.
- Touchscreen Controller Setup: Connect the touchscreen controller and power supply.
- Initial Calibration: Start the engine and allow the self-learning ECU to calibrate.
- Monitoring and Fine-Tuning: Use the touchscreen controller to monitor and fine-tune engine parameters as needed.
BENEFITS OF USING THE FITECH LS EFI W/70002 KIT INLINE FUEL PUMP & LED COIL PACK (79102):
- Improved fuel efficiency compared to carbureted systems.
- Enhanced engine performance and responsiveness.
- Simplified tuning with the self-learning ECU.
- Real-time monitoring and adjustments via the touchscreen controller.
- Complete kit provides all necessary components for installation.
- Capability of handling up to 500HP.
- Consistent performance across various operating conditions.
- Capability of using multiple fuel types.
FEATURES:
- Durable Construction: Black anodized aluminum intake manifold for corrosion resistance.
- High-Flow Throttle Body: 92mm billet design for optimal airflow.
- Billet Fuel Rails: Equipped with AN fittings for secure connections.
- LED Coil Packs: Included for modern ignition performance.
- Accurate Monitoring: Bosch wideband oxygen sensor included for precise fuel control.
- Signal Compatibility: Compatible with 24X and 58X crank and cam signals.
- Data Logging: Programmable touchscreen handheld controller with data log features.
- External Inline Fuel Pump: Comes with a filter for clean fuel delivery.
- Flexible Metering Options: Capability to use Alpha-N or Speed Density metering styles.
-
