Description
The FiTech LS Kit LS1/LS2/LS6 750HP w/Trans Control Truck LED Coil (79009) is a comprehensive electronic fuel injection solution designed for LS engines, supporting up to 750 horsepower. This kit provides multi-port injection and integrated transmission control, simplifying LS engine swaps. It includes all necessary components for a complete EFI conversion, offering both performance and ease of use.
KEY FEATURES AND BENEFITS:
- Engineered for LS Engines: Compatible with LS1, LS2, LS6, and supports 24X and 58X crank/cam signals.
- High Power Rating: Supports up to 750 horsepower with a 102mm throttle body providing 1500 CFM airflow.
- Precise Fuel Delivery: Features 55 lbs./hr fuel injectors and speed density (MAP-based) fuel metering.

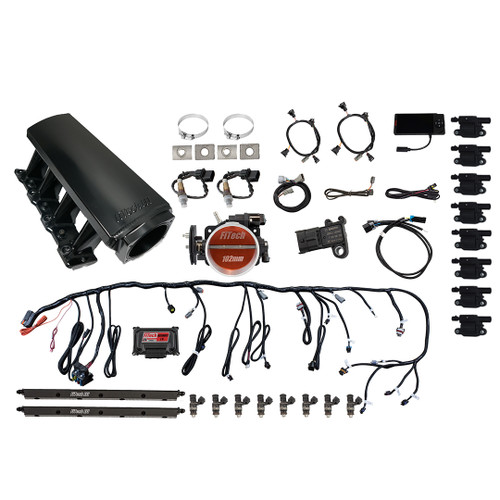

- Comprehensive Kit: Includes aluminum intake manifold, fuel rails, throttle body, ECU, wiring harness, and sensors.
- User-Friendly Tuning: Self-learning ECU and touch screen controller for easy parameter adjustments and data logging.
- Integrated Transmission Control: Compatible with 4L60, 4L65, 4L70, and 4L80 GM transmissions.
SPECIFICATIONS:
- Maximum Horsepower: 750 HP
- Injection Style: Multi-port
- Timing Control: Yes
- Power Adder Compatible: Yes (Boost/Nitrous oxide)
- ECU Included: Yes
- Transmission Controller: Yes
- Metering Style: Speed density (MAP)
- Intake Material: Aluminum
- Throttle Body: 102mm, 1500 CFM
- Injectors: 55 lbs./hr
- Fuel Rails: Included
- Sensors: MAP, IAT, TPS, Oxygen
- Display: 4.5 inch touch screen
HOW TO USE:
- Install the Intake Manifold: Mount the provided aluminum intake manifold onto the LS engine, ensuring a proper seal.
- Connect the Fuel Rails and Injectors: Attach the high-volume billet fuel rails and 55 lbs./hr injectors to the intake manifold.
- Mount the Throttle Body: Install the 102mm billet throttle body onto the intake manifold, securing it with the appropriate hardware.
- Install Sensors: Connect the MAP, IAT, TPS, and oxygen sensors to their designated locations on the engine and intake.
- Connect Wiring Harness: Plug the wiring harness into the ECU and connect it to the engine sensors and injectors.
- Connect Transmission Controller: If using an automatic transmission, connect the transmission controller to the appropriate connections.
- Mount the ECU and Display: Secure the ECU and mount the 4.5-inch touch screen controller within easy reach.
- Initial Setup: Power on the system and use the touch screen controller to input engine parameters and perform initial setup.
- Start and Tune: Start the engine and allow the self-learning ECU to begin tuning. Fine-tune parameters as needed using the touch screen controller.
BENEFITS OF USING THE FITECH LS KIT LS1/LS2/LS6 750HP W/TRANS CONTROL TRUCK LED COIL (79009):
- Improved engine performance and throttle response.
- Enhanced fuel efficiency and precise fuel control.
- Simplified LS engine swaps with integrated transmission control.
- User-friendly tuning with self-learning ECU and touch screen interface.
- Reliable operation with high-quality components and robust design.
FEATURES:
- Sequential Spark and Fuel Control: For optimal engine performance.
- 3-Bar MAP Sensor: Ideal for boost applications.
- AN Fittings and Fuel Crossover: For secure connections.
- Crank and Cam Compatibility: Supports 24X and 58X signals.
- Durable Construction: Black anodized aluminum components.
- High-Flow Throttle Body: Cable-operated for improved airflow.
- Dual Bosch Wideband O2 Sensors: With dual trim control for precise fuel tuning.
- Knock Sensor Control: Protects engine from detonation.
- Stainless Steel Oxygen Sensor Bung: For durability.
- Coil Compatibility: Works with car and truck coils.
- LED Coil Pack Set: Included for enhanced ignition performance.
-
