Description

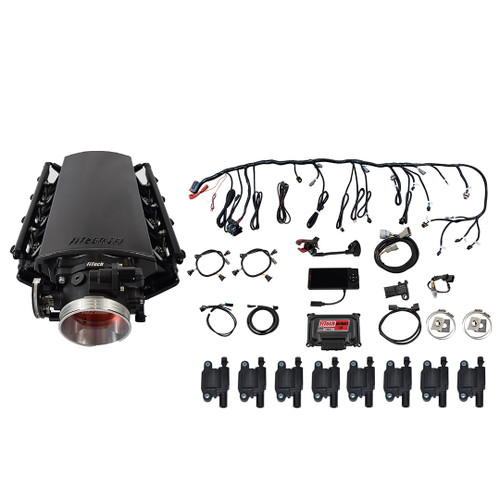

The FiTech LS1/LS2/LS6 500HP EFI Kit w/Trans Control & Coil Pack (78002) provides a complete solution for retrofitting LS engines. This kit delivers efficient fuel and spark control for LS1, LS2, and LS6 engines, simplifying the process of upgrading to electronic fuel injection. The system is designed for ease of use, with a self-learning ECU and user-friendly touchscreen interface, making it an excellent choice for those seeking improved performance and reliability in their engine swaps.
KEY FEATURES AND BENEFITS:
- Designed for: Cathedral Port LS1/LS2/LS6 heads.
- Power Rating: Rated for up to 500 horsepower.
- Throttle Body: Includes a 92mm throttle body with 1250 CFM flow.
- Self-Learning ECU: Comes with a 4.5-inch touchscreen controller.
- Sequential Control: Sequential fuel and spark control for optimal efficiency.
- Fuel Injectors: Includes 36 lbs/hr fuel injectors and high-volume fuel rails.
- Transmission Control: Compatible with GM 4L60, 4L65, 4L80, or 4L85 transmissions.
- Complete Wiring: Complete wiring harness and necessary sensors included.
- Coil Pack Set: Coil pack set included in the kit.
- Intake Material: Aluminum intake manifold.
- Fuel Compatibility: Ability to run multiple types of fuel, including alcohol, gasoline, methanol, and flex fuel.
SPECIFICATIONS:
- Maximum horsepower: 500 HP
- Injection style: Multi-port
- Throttle body size: 92mm (1250 cfm)
- Injector size: 36 lbs./hr.
- ECU: Included, self-learning
- Transmission controller: Included
- Metering style: Speed density (MAP-N)
- Intake material: Aluminum (Black Anodized)
- Fuel type: Alcohol, gasoline, methanol, flex
- Compatibility: Compatible with 24X and 58X crank and cam signals.
HOW TO USE:
- Engine Preparation: Ensure the LS engine is installed and mechanically sound.
- Intake Installation: Mount the provided aluminum intake manifold onto the engine.
- Throttle Body and Fuel Rails: Install the 92mm throttle body and high-volume fuel rails.
- Injector Installation: Place the 36 lbs/hr injectors into the fuel rails.
- Sensor Installation: Install the MAP, IAT, TPS, and oxygen sensors according to the provided instructions.
- Wiring Harness Connection: Connect the plug-and-play wiring harness to the ECU and all sensors.
- ECU Setup: Mount the touchscreen controller and connect it to the ECU.
- Transmission Control (if applicable): Connect the transmission control wiring to the transmission.
- Fuel System: Install your own fuel pump and fuel lines, ensuring proper fuel pressure.
- Initial Setup: Follow the on-screen instructions on the touchscreen controller for initial setup and calibration.
- Start and Tune: Start the engine and allow the self-learning ECU to fine-tune the fuel and spark settings.
BENEFITS OF USING FITECH LS1/LS2/LS6 500HP EFI KIT W/TRANS CONTROL & COIL PACK (78002):
- Simplified LS engine swaps with a complete EFI system.
- Improved fuel efficiency and engine performance.
- Self-tuning capabilities eliminate the need for complex manual tuning.
- Transmission control simplifies the integration of modern automatic transmissions.
- Complete kit provides all necessary components for installation, excluding fuel pump and fuel pressure regulator.
- A very complete kit for seamless upgrades.
FEATURES:
- Corrosion Resistance: Black anodized aluminum components for durability.
- High-Flow Throttle Body: Cable-operated design ensuring optimal airflow.
- Oxygen Sensor Control: Bosch wideband-controlled oxygen sensor included.
- Stainless Steel Bung: Comes with a stainless steel oxygen sensor bung.
- Fuel System Design: AN fittings and fuel crossover for reliable connections.
- Custom Compatibility: Designed for custom camshafts and operates with a minimum of 6 inches of vacuum at idle.
- Data Logging: Features data logging capabilities on the handheld controller.
- User Interface: Easy-to-use interface for convenient operation.
-
