Description

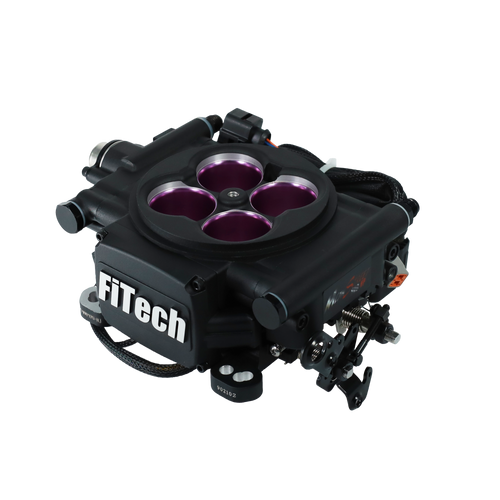

The FiTech Mean Street 800HP Matte Black Finish EFI System (30008) is a comprehensive solution for those looking to replace their traditional 4-barrel carburetor with modern electronic fuel injection. Designed for engines producing 200 to 800 horsepower, this system offers improved fuel atomization, easier installation, and enhanced performance. With its onboard ECU and fuel pressure regulator, the Mean Street system simplifies wiring and setup, making it a cost-effective upgrade for classic car enthusiasts.
KEY FEATURES AND BENEFITS:
- Self-Tuning Capabilities: Automatically adjusts fuel based on real-time engine conditions.
- Direct Replacement: Fits standard intake manifolds, serving as a straightforward swap for 4-barrel carburetors.
- User-Friendly Controller: Hand-held controller with a touch screen for easy initial setup and quick adjustments.
- Efficient Fuel Delivery: Wide-band O2 sensor and annular swirl wet-flow technology enhance power output.
- Retrofit Design: Ideal for older vehicles; not legal for pollution-controlled vehicles.
SPECIFICATIONS:
- Maximum horsepower: 800 HP
- Injection style: Throttle body
- Metering style: Speed density (Map-N) or speed throttle (Alpha-N)
- Throttle body mounting flange: 4-barrel square bore
- Venturi quantity: 4
- Venturi diameter: 43 mm
- Airflow rate: 850 CFM
- Injector size: 62 lb/hr
- Fuel type: Alcohol, Gasoline, Methanol, Flex
- ECU: Onboard
- Fuel pressure regulator: Built-in
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing 4-barrel carburetor.
- Installation: Mount the FiTech 30008 throttle body onto the 4-barrel intake manifold using the provided gasket.
- Sensor Installation: Install the wide-band O2 sensor into the exhaust system using the provided bung kit. Connect the coolant temperature sensor (CTS) and other necessary sensors.
- Wiring: Connect the wiring harness to the vehicle’s electrical system, following the provided instructions.
- Fuel System: Connect the fuel lines to the throttle body’s inlet and outlet fittings.
- Handheld Controller: Connect the handheld controller and power on the system.
- Initial Setup: Use the handheld controller’s touch screen to enter basic engine parameters.
- Self-Tuning: Start the engine and allow the system to self-tune. Monitor engine performance and make adjustments as needed using the handheld controller.
BENEFITS OF USING THE FITECH MEAN STREET 800HP MATTE BLACK FINISH EFI SYSTEM (30008):
- Improved fuel efficiency and atomization.
- Simplified installation compared to traditional EFI systems.
- Enhanced engine performance and power output.
- Automatic fuel adjustments through self-tuning.
- Easy setup and adjustments with the handheld controller.
- Direct replacement for 4-barrel carburetors.
FEATURES:
- Internal MAP Sensor: Provides accurate readings for better performance.
- Flow-Matched Injectors: Eight injectors ensure precise fuel delivery.
- Fan Control: Manages engine cooling effectively.
- Built-In Pressure Regulator: Maintains consistent fuel pressure.
- Matte Black Finish: Offers a sleek and modern appearance.
- AC Kick-Up Control: Enhances system responsiveness.
- Data Logging: Eight GB capabilities for performance tracking.
- Vacuum Requirement: Designed for applications making at least 6 in. of vacuum at idle.
-
