Description
The FiTech Ultimate Rebel LS 500 HP EFI System (70088) is a comprehensive solution designed to modernize LS engine conversions. This multi-port fuel injection system provides precise fuel delivery and optimized performance for LS engines up to 500 horsepower. It features a streamlined design, including a low-profile intake manifold and redesigned fuel rail bracket, to enhance the visual appeal of your engine bay. The system is self-tuning, user-tunable, and compatible with E85 and boost/nitrous applications. The kit includes all essential components for installation, such as the ECU, sensors, wiring harness, and fuel system parts.
KEY FEATURES AND BENEFITS:
- Designed for LS engine conversions, providing modern electronic fuel injection.
- Capable of supporting up to 500 horsepower.
- Self-tuning and user-tunable for optimized performance.
- Includes a 4.5-inch display for monitoring and adjustments.
- 92mm throttle body and 36 lb/hr injectors for efficient airflow and fuel delivery.
- E85 compatible, offering flexibility in fuel choices.
- Boost/Nitrous compatibility with a 3-bar MAP sensor (27 psi).
- Streamlined design with a low-profile intake manifold and redesigned fuel rail bracket.

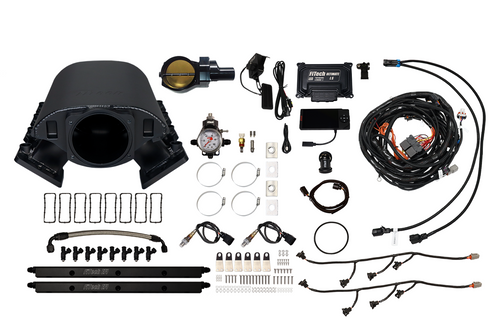

- Complete kit includes manifold, ECU, sensors, wiring harness, fuel rails, and fuel pressure regulator.
SPECIFICATIONS:
- Fuel Injection Style: Multi-port
- Maximum Horsepower: 500
- Throttle Body Size: 92mm
- Injector Size: 36 lb/hr
- MAP Sensor: 3-bar (27 psi)
- Display: 4.5-inch
- E85 Compatible: Yes
- Boost/Nitrous Compatible: Yes
- Transmission Control: No
HOW TO USE:
- Preparation: Disconnect the vehicle's battery and remove the existing intake manifold and fuel system.
- Installation: Install the FiTech Rebel LS intake manifold, throttle body, and fuel rails.
- Sensor Installation: Mount the MAP sensor, IAT sensor, and oxygen sensors in their designated locations.
- Wiring: Connect the wiring harness to the ECU and all sensors, ensuring proper connections.
- Fuel System Connection: Connect the fuel lines to the fuel rails and fuel pressure regulator.
- ECU Setup: Mount the ECU and connect the handheld display.
- Initial Setup: Follow the on-screen instructions on the handheld display to input engine parameters.
- Self-Tuning: Start the engine and allow the system to self-tune.
- Fine-Tuning: Use the handheld display to make any necessary adjustments.
- Final Checks: Verify all connections and ensure the system is operating correctly.
BENEFITS OF USING THE FITECH ULTIMATE REBEL LS 500 HP EFI SYSTEM (70088):
- Improved engine performance and throttle response.
- Enhanced fuel efficiency.
- Modernized engine bay appearance.
- Simplified installation for LS engine conversions.
- Flexibility in fuel choices with E85 compatibility.
- Ability to handle boost and nitrous applications.
- Reliable fuel delivery.
FEATURES:
- Low-profile intake manifold design.
- Thicker gauge manifold for quieter injection.
- Redesigned fuel rail bracket.
- Complete sensor package (MAP, IAT, Oxygen).
- Handheld display for tuning and monitoring.
- Magnetic handheld mount.
- Throttle cable brackets included.
- Go fuel tight fit regulator with pressure gauge.
- EV1 injector sub harness.
- LS1/LS2 knock sensor harness.
-
