Description

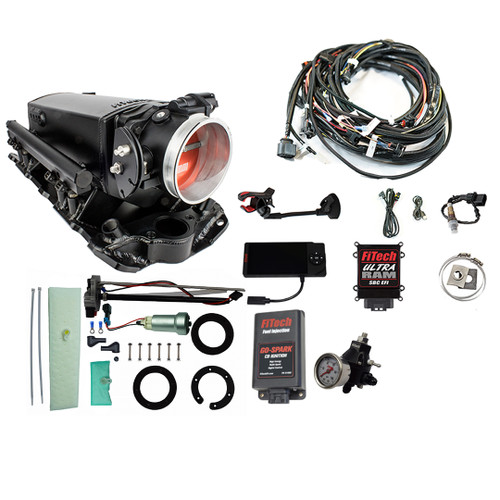

The FiTech Ultra Ram EFI 650 HP Chevy Small Block Master Kit (93631) provides a complete solution for converting carbureted small block Chevy engines to electronic fuel injection. This kit is designed for those seeking improved performance, drivability, and fuel efficiency.
KEY FEATURES AND BENEFITS:
- This master kit supports up to 650 horsepower and includes a self-tuning EFI system.
- The package contains an Ultra Ram sheet metal intake manifold, a 92mm throttle body, and a remote mount ECU.
- The in-tank fuel pump module and Go-Spark CD ignition enhance fuel delivery and combustion.
- The system also features a 4.5-inch color touchscreen for easy setup and monitoring.
- The included Go Fuel Tight Fit regulator with gauge ensures precise fuel pressure control.
SPECIFICATIONS:
- Fuel Injection Style: Multi-port
- Fuel Injection System Type: Multi-port Throttle Body
- Maximum Horsepower with Gas: 650 HP
- Timing Control Compatible: Yes
- ECM Included: Yes
- Self Tuning: Yes
- User Tunable: Yes
- Fuel System Included: In-tank fuel pump module, return
- Ignition System Included: Ignition box
- User Interface Included: 4.5 in. display
- Intake Material: Aluminum
- Throttle Body Diameter: 92.00mm
- Injector Size: 36 lbs/hr
- Fuel Pressure Regulator: Adjustable from 30 to 70 psi
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
- Installation of Intake: Install the Ultra Ram sheet metal intake manifold onto the engine.
- Fuel System Installation: Install the in-tank fuel pump module into the fuel tank. Connect the fuel lines to the fuel rails and regulator.
- Throttle Body Installation: Mount the 92mm throttle body onto the intake manifold.
- Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and coolant sensor.
- ECU and Wiring: Mount the remote ECU and connect the main wiring harness to the sensors, injectors, and ignition system.
- Ignition System: Install the Go-Spark CD ignition system and connect it to the distributor.
- Initial Setup: Connect the handheld controller and input the engine specifications.
- Self-Tuning: Start the engine and allow the self-learning EFI system to adjust the fuel mixture.
- Final Adjustments: Make any necessary fine-tuning adjustments using the handheld controller.
BENEFITS OF USING THE FITECH ULTRA RAM EFI 650 HP CHEVY SMALL BLOCK MASTER KIT (93631):
- Improved engine performance and throttle response.
- Enhanced fuel efficiency compared to carbureted systems.
- Simplified engine tuning with self-learning capabilities.
- Reliable fuel delivery with the included in-tank pump and regulator.
- Improved combustion and power output with the Go-Spark CD ignition.
- Modernizes older engines with up-to-date fuel injection technology.
FEATURES:
- Sheet metal intake manifold design.
- Cast aluminum 92mm throttle body.
- Remote mount ECU for flexible installation.
- Wide-band oxygen sensor for accurate air/fuel ratio monitoring.
- Adjustable fuel pressure regulator with gauge.
- Color touchscreen display for user interface.
- CD ignition system for enhanced spark.
- Pre-installed fuel rails and injectors.
- Comprehensive wiring harness and sensor package.
-
