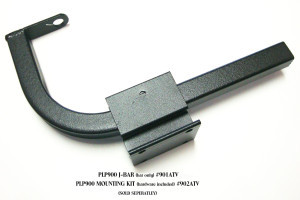

Great Day Short ATV Boomless J-Bar (#901ATV)

The Great Day Short ATV Boomless J-Bar (#901ATV) is a specialized, crucial component designed to integrate seamlessly into Great Day Plot-Pro Boomless Sprayer systems. This J-shaped nozzle holder plays an essential role in facilitating wide-area, boom-free liquid application when mounted on ATVs, UTVs, or even trucks. It represents a practical approach to small-scale spraying, eliminating the need for cumbersome traditional spray booms that often hinder maneuverability in confined or intricate areas such as food plots, orchards, lawns, and shrubbery. By allowing the system to deliver a uniform spray swath without a physical boom, the #901ATV contributes to a more cost-effective and highly maneuverable spraying solution. This part supports an efficient and precise method for managing vegetation or applying treatments over various terrains, making it an indispensable element for those seeking an optimized ATV spraying experience.

KEY FEATURES AND BENEFITS:

• Boomless Design Support: Integral to systems that offer a wide spray coverage (typically 15 to 25 feet) without the physical constraints of traditional spray booms.
• Enhanced Maneuverability: Helps create a compact spray tip assembly that stays out of the way, improving navigation in tight spots and around obstacles.
• Uniform Application: When correctly installed as part of a system, it contributes to the delivery of a consistent and even spray pattern across the designated area.
• Easy System Integration: Designed to fit specific Great Day Plot-Pro Boomless Sprayer kits, allowing for straightforward assembly and operation.
• Versatile Compatibility: Compatible with sprayer pumps that have an output of 1.8 GPM or higher, making it adaptable to various existing sprayer setups.

SPECIFICATIONS:

• Included Item: 1 x J-shaped nozzle holder (Short ATV Boomless J-Bar #901ATV)

HOW TO USE:

1. Mounting Bracket Installation: First, ensure the main mounting bracket (part of the overall boomless sprayer kit) is securely placed at approximately the center of your ATV's back rack or basket. Use the provided riv-nut plates and bolts to fasten it firmly to the rack or basket frame.
2. Hose Connection to Nozzle: Lubricate the hose end lightly. Carefully slide the hose onto the barb of the "Boominator" nozzle. Once fully seated, use appropriate clamps to secure the hose connection firmly.
3. "T" Fitting Placement: Install a "T" fitting on the outlet side of your sprayer pump. This allows for dual functionality, enabling you to switch between using the boomless spray nozzle and a hand wand if your system includes one.
4. J-Bar Installation: Insert the Great Day Short ATV Boomless J-Bar (#901ATV) into the designated slot on the previously installed mounting plate. Secure it firmly using the provided bolt, flat washers, and a locknut. Ensure it is snug but not overtightened.
5. Nozzle Positioning: Confirm the boomless nozzle, now held by the J-Bar, is positioned towards the ground. For optimal performance and to achieve the intended spray pattern (e.g., a 15-foot spread), ensure the nozzle is operated at a height of 30 to 36 inches above ground level.

BENEFITS OF USING GREAT DAY SHORT ATV BOOMLESS J-BAR (#901ATV):

• Simplifies the spraying process with wide-area coverage without bulky booms.
• Enhances ATV maneuverability, especially in tight or obstructed environments.
• Promotes efficient and uniform application of liquids for consistent results.
• Reduces risk of damage from traditional booms in rugged or confined spaces.
• Improves usability and performance of Great Day’s Plot-Pro Boomless Sprayer systems.

FEATURES:

• Facilitates compact, efficient boomless nozzle attachment.
• Supports wide spray patterns, typically 15–25 feet.
• Designed for quick integration into compatible sprayer systems.
• Helps maintain a consistent spray height for even coverage.
• Part of a system that eliminates cumbersome physical booms.
• Enhances ATV agility in various spraying environments.
