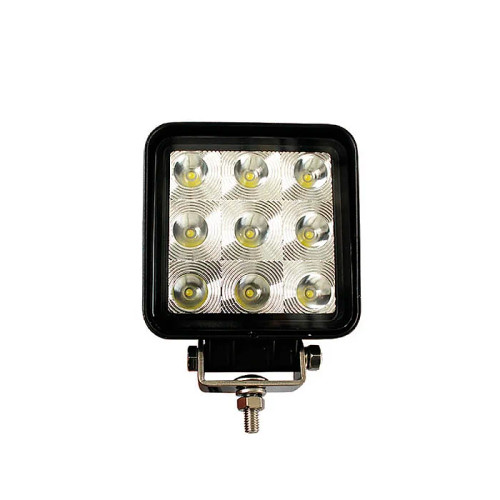

Haizer USA Iron Series Spot Square LED Work Light (HZR-9504S)

Haizer USA Iron Series Spot Square LED Work Light (HZR-9504S) is a compact and efficient lighting solution engineered for demanding environments. This 4-inch LED work light provides a powerful and focused spot beam, designed to enhance visibility for a variety of applications, including off-roading, agricultural operations, marine use, and industrial settings. Its robust construction ensures long-term performance even in challenging conditions, making it a reliable addition to any vehicle or equipment setup that requires precise and long-distance illumination.

KEY FEATURES AND BENEFITS:

• Focused Spot Beam: The HZR-9504S delivers a concentrated spot beam, providing excellent long-distance illumination to help identify obstacles or illuminate specific work areas with precision. This beam pattern is ideal for forward lighting where a narrow, intense light is beneficial.
• Weatherproof Performance (IP67 Rated): With an IP67 rating, this work light is fully protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. This makes it suitable for use in heavy rain, muddy conditions, or even marine applications, ensuring consistent operation regardless of the weather.
• Robust Construction Materials: The light features a diecast aluminum alloy housing, providing exceptional resistance to impact, vibrations, and corrosion. This sturdy build contributes to the light's longevity and reliability in harsh operational environments.
• Impact-Resistant Polycarbonate Lens: The front lens is made from durable polycarbonate, a material known for its high impact strength. This protects the LEDs from debris, rocks, and other potential hazards, maintaining light clarity and output.
• Wide Voltage Compatibility (10-30V DC): Designed to operate efficiently across a broad voltage range, the HZR-9504S is compatible with most 12V and 24V vehicle electrical systems. This flexibility allows for easy integration with a wide variety of trucks, SUVs, ATVs, boats, and heavy machinery.
• Effective Heat Dissipation: The aluminum alloy housing also acts as an effective heat sink, helping to dissipate heat generated by the LEDs. This prevents overheating, which can extend the lifespan of the LEDs and maintain consistent light output over time.

SPECIFICATIONS:

• Part Number: HZR-9504S
• Light Type: LED Work Light Pod
• Shape: Square
• Size: 4 inches x 4 inches
• Light Source: LED
• Watts: 3.0 watts
• Lumens: 600 lumens
• Number of LEDs: 9
• Operating Voltage: 10-30V DC
• Bulb Color: White
• Lens Color: Clear
• Housing Color: Black
• Housing Material: Diecast Aluminum Alloy
• Lens Material: Polycarbonate
• Waterproof Rate: IP67
• Included in Purchase: Stainless Steel Mounting Bracket

HOW TO USE:

1. Unpack: Carefully remove the Haizer USA Iron Series Spot Square LED Work Light and its included stainless steel mounting bracket from the packaging.
2. Choose Mounting Location: Select a suitable mounting location on your vehicle or equipment. Consider areas that offer clear forward visibility and can support the light's weight. Ensure the chosen spot allows for proper beam direction.
3. Attach Mounting Bracket: Secure the stainless steel mounting bracket to your desired location using appropriate fasteners (not included, may require drilling). Ensure the bracket is firmly attached and stable.
4. Mount the Light: Attach the LED work light to the mounted bracket using the provided hardware. Adjust the angle of the light to achieve the desired beam direction. Tighten all fasteners to secure the light in place.
5. Wire the Light: Connect the red wire from the LED work light to a positive (+) 10-30V DC power source on your vehicle or equipment. Connect the black wire to a reliable ground (-) connection. It is recommended to use an inline fuse (not included) for circuit protection and a switch (not included) for convenient operation.
6. Test Functionality: Once wired, turn on the power to test the light. Verify that the spot beam is functioning correctly and illuminating the intended area. Make any final adjustments to the light's angle as needed.

BENEFITS OF USING HAIZER USA IRON SERIES SPOT SQUARE LED WORK LIGHT (HZR-9504S):

• Improved Nighttime Visibility: Significantly enhances your ability to see and react to objects in front of your vehicle or within your work area, especially at long distances.
• Increased Safety: By providing clearer illumination, this light can reduce the risk of accidents and improve overall operational safety during low-light conditions.
• Versatile Application: Adaptable for a wide range of uses, from off-road vehicles and ATVs to construction equipment, boats, and utility vehicles, offering a versatile lighting solution.
• Energy Efficient: LED technology consumes less power compared to traditional halogen lights, reducing the strain on your vehicle's electrical system and potentially improving fuel efficiency.
• Long Lifespan: LEDs have a considerably longer operational life than incandescent bulbs, reducing the need for frequent replacements and maintenance.
• Instant On/Off: Provides immediate full brightness without any warm-up time, offering quick and responsive lighting whenever needed.

FEATURES:

• Compact square form factor for easy integration.
• Equipped with 9 high-output LED emitters.
• Constructed with a robust diecast aluminum alloy housing.
• Features a clear, impact-resistant polycarbonate optical lens.
• Operates efficiently within a broad 10-30V DC electrical range.
• Certified with an IP67 ingress protection rating.
• Comes with an adjustable stainless steel mounting bracket.
• Designed for spot beam pattern illumination.
