HHIP 5" Sine Bar with 18 Raisers (3402-1206)

$238.85 Save 25
$191.08
(You save $47.77 )

Out of stock

MPN:
SKU:
JB-DS-ABS-3402-1206  |
UPC:
769053116327  |
Shipping:
Free Shipping!
  • Icon 1 Free
    shipping
    Orders Over $99
  • Icon 2 Global
    Shipping
    Fast delivery
  • Icon 3 60-Day
    Return
    Hassle-free

Out of stock

  • Description

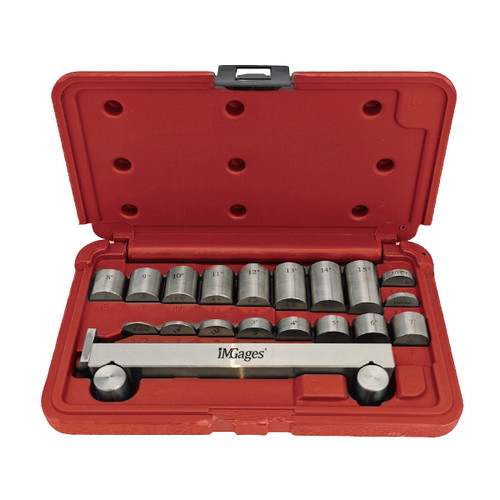

    HHIP 3402-1206 5" Sine Bar with 18 Raisers is a precision tool designed for accurately setting angles in inspection, layout, and machining operations. The sine bar is 5" measured between the centers of two precision-ground rollers, made of hardened and precision-ground steel for durability and long-lasting accuracy. The working face accuracy is 0.00003" per inch, and the roller center distance accuracy is 0.0002". Included are 18 raiser blocks for stacking, enabling precise height adjustments to achieve specific angles via sine function calculations. The set includes a fitted case for safe storage and transport.

    Features:

    • 5" sine bar measured between centers of precision-ground rollers.
    • Hardened and precision-ground steel construction for durability.
    • Includes 18 raiser blocks for stacking to achieve precise heights.
    • Enables setting angles accurately using sine function calculations.
    • Fitted case included for storage and transport.

    Benefits:

    • Allows precise angular setups for inspection, layout, and machining tasks.
    • Durable construction ensures long-term reliability and accuracy.
    • Raiser blocks provide flexibility for a wide range of angles.
    • Compact fitted case keeps components organized and protected.
    • Ideal for professional machinists, toolmakers, and precision work.

    Technical Specifications:

    • Model: 3402-1206
    • Type: 5" Sine Bar with 18 Raisers
    • Material: Hardened and precision-ground steel
    • Roller Center Distance: 5" (accuracy 0.0002")
    • Working Face Accuracy: 0.00003" per inch
    • Raiser Blocks Included: 18, for angle increments of 1/4 TPF, 1/2 TPF, 1°–15°
    • Applications: Precision angle setups, inspection, layout, and machining
    • Includes: Fitted storage case
