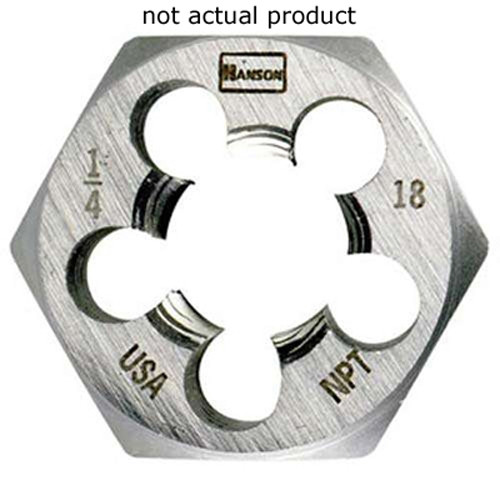

Irwin 1/4-18 NPT HCS Hexagon Taper Pipe Die (6703)

The Irwin 1/4-18 NPT HCS Hexagon Taper Pipe Die (6703) is a specialized tool designed for precision pipe threading. Made from high carbon steel, this die is specifically engineered to cut right-hand external threads on pipes, creating the essential taper needed for a secure, leak-free seal in plumbing and air systems. The hexagon shape of the die is a key feature, offering users the flexibility to operate it with a standard wrench, a socket, or a hex die stock. This design is particularly advantageous when working in confined or hard-to-reach areas where traditional round die stocks may not fit. Whether you are performing a simple repair or a more complex maintenance task, this die provides a reliable and efficient way to create new threads or clean up damaged ones. Its specific 1/4"-18 NPT thread standard ensures compatibility with a wide range of common pipe sizes, making it an indispensable tool for professionals and DIY enthusiasts alike.

KEY FEATURES AND BENEFITS:

• Precision Threading: Creates accurate 1/4"-18 NPT (National Pipe Taper) threads, which are critical for achieving a tight, sealed connection in plumbing and air applications.
• High Carbon Steel Construction: The High Carbon Steel (HCS) material ensures a clean, sharp cut and provides long-lasting performance.
• Versatile Hexagon Design: The hex profile allows the die to be used with a standard wrench, a socket, or a hexagon die stock, providing flexibility and convenience, especially when working in tight spaces.
• Right-Hand Threading: Designed to cut threads in a right-hand direction, which is the standard for most pipe applications.

SPECIFICATIONS:

• Model Number: 6703
• Thread Size: 1/4"-18 NPT
• Material: High Carbon Steel (HCS)
• Die Type: Hexagon Taper Pipe Die
• Across Flat: 1 inch
• Outer Diameter (OD): 1.137 inches
• Thickness: 3/8 inch

HOW TO USE:

1. Prepare the Pipe: Ensure the pipe end is cut square and is free of burrs. Use a reamer or file to clean the inside and outside edges of the pipe end.
2. Secure the Pipe: Clamp the pipe securely in a vise to prevent it from rotating during the threading process. The end to be threaded should be accessible.
3. Position the Die: Place the Irwin 6703 die squarely over the end of the pipe, with the cutting teeth facing the pipe end.
4. Start the Thread: Apply firm, steady pressure while turning the die clockwise using a wrench, socket, or die stock. The die will begin to cut the first threads.
5. Thread the Pipe: Continue turning the die, using a back-and-forth motion (one turn clockwise, then a quarter turn counter-clockwise) to break off chips and prevent the die from binding. Apply a suitable cutting oil to the pipe and die to reduce friction and extend the life of the tool.
6. Complete the Thread: Continue this process until the desired thread length is achieved. The taper of the die will ensure the threads are cut to the correct profile.
7. Remove the Die: Turn the die counter-clockwise to back it off the newly threaded pipe.

BENEFITS OF USING IRWIN 1/4-18 NPT HCS HEXAGON TAPER PIPE DIE (6703):

• Creates a Secure Seal: The NPT standard and the die's tapered design work together to create a tight, pressure-resistant seal, which is vital for plumbing and air systems.
• Ideal for Maintenance and Repair: This tool is specifically designed for situations where new threads need to be cut or existing ones repaired, making it perfect for a wide range of repair projects.
• Enhanced Accessibility: The hexagon shape allows for use with common wrenches and sockets, offering a practical solution for threading in hard-to-reach areas where a traditional die stock might be too bulky.
• Consistent Thread Quality: The high carbon steel construction ensures that each thread cut is clean and consistent, providing a professional-grade finish.

FEATURES:

• Right-hand thread direction for standard applications.
• High Carbon Steel construction for durability and long-lasting sharpness.
• Hexagon-shaped body allows for multiple drive options.
• Designed for a precise 1/4"-18 NPT thread profile.
• Tapered cutting edges for a proper sealing connection.
• Manufactured for use in plumbing and air systems.
