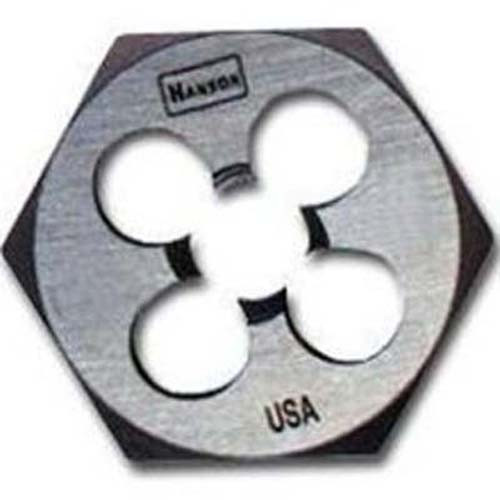

Irwin 5/8"-18 NF x 1-7/16" HCS Hexagon Machine Screw Die (6854)

The Irwin 5/8"-18 NF x 1-7/16" HCS Hexagon Machine Screw Die (6854) is a reliable and precise tool for professionals and hobbyists who need to create or clean external threads. Made from high carbon steel, this die is built for consistent performance in various maintenance and repair applications. Its hexagon design is a key feature, as it allows the die to be driven with a standard wrench, a socket, or a hexagon die stock, providing exceptional versatility for working in tight or challenging spaces where a traditional round die stock might not fit. This makes it an invaluable tool for automotive repair, plumbing, and general machinery upkeep. Whether you are restoring threads on a rusted bolt or creating new threads on a rod, the Irwin 6854 die offers a practical and effective solution, ensuring a clean and accurate result. The right-hand thread direction is standard for most applications, making this a common and essential component for any workshop or toolbox.

KEY FEATURES AND BENEFITS:

• Thread cutting and repair: Designed to cut or repair 5/8"-18 NF threads on bolts and rods.
• Hexagon shape: Allows use with common hand tools like wrenches and sockets, eliminating the need for a round die stock.
• Material quality: Made from high carbon steel for sharp cutting edges and long tool life.
• Thread maintenance: Ideal for cleaning rust and burrs from existing threads.
• Space efficiency: Perfect for working in confined or awkward spaces.

SPECIFICATIONS:

• Thread Size: 5/8"-18 NF (National Fine)
• Across Flats: 1-7/16 inches
• Material: High Carbon Steel (HCS)
• Thread Direction: Right-Hand

HOW TO USE:

1. Prepare the Workpiece: Secure the rod or bolt firmly in a vise. The end of the workpiece should be chamfered slightly with a file to help guide the die and prevent damage to the initial threads.
2. Mount the Die: Choose a wrench or socket that fits the 1-7/16" hexagon shape of the die. Place the die onto the end of the workpiece, ensuring it is straight.
3. Start Threading: Apply firm, steady pressure while turning the die clockwise. Turn a quarter to a half turn, then back off to break the chips and avoid clogging.
4. Lubricate: Apply cutting oil to the workpiece and die to reduce friction and improve thread quality.
5. Continue Threading: Repeat the threading and back-off process until the desired thread length is achieved, adding more lubricant as needed.

BENEFITS OF USING THE IRWIN 5/8"-18 NF X 1-7/16" HCS HEXAGON MACHINE SCREW DIE (6854):

• Versatility in Use: Compatible with various hand tools such as standard wrenches and sockets.
• Confined Space Accessibility: Designed for effective use in tight or restricted areas.
• Thread Restoration: Efficiently cleans and repairs worn or rusted threads.
• Quality Material: High carbon steel construction ensures clean cuts and extended tool life.
• Cost-Effective: Performs multiple threading jobs without the need for a full set.

FEATURES:

• Hexagon profile for multiple tool options
• High-carbon steel construction
• 1-7/16" across flats size
• Designed for 5/8"-18 NF thread pitches
• Right-hand thread orientation
• Solid, one-piece body design
• Suitable for maintenance and repair tasks
• Can be used with a standard wrench, socket, or die stock
