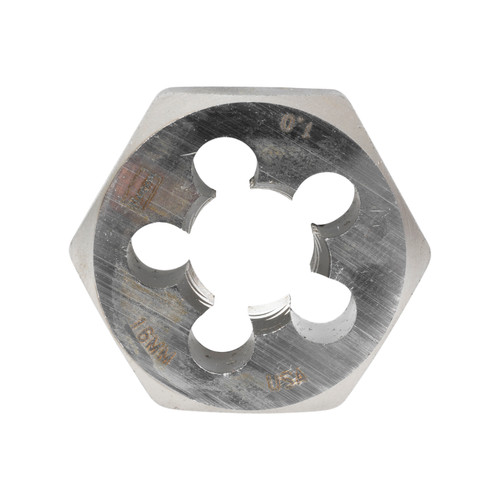

Irwin M16 x 1.0mm HCS Hexagon Metric Die (6954)

The Irwin M16 x 1.0mm HCS Hexagon Metric Die (6954) is a professional-grade threading tool crafted for precision and reliability. Designed to cut and restore external threads, this die is a vital addition to any toolkit, especially for those involved in automotive repairs, machinery maintenance, and general fabrication. Made from high carbon steel, it provides a solid and effective solution for working with low tensile metals such as mild steel, aluminum, and brass. The hexagon design is a key feature, allowing the die to be used with a standard wrench or socket, which is especially helpful when working in tight, restricted spaces where a traditional die stock might not fit.

KEY FEATURES AND BENEFITS:

• Metric Threading: Accurately cuts and restores M16 x 1.0mm right-hand metric threads, making it essential for a wide range of common repair and maintenance jobs.
• High Carbon Steel (HCS) Construction: Provides strength and a sharp cutting edge for consistent results on materials like mild steel, brass, and aluminum.
• Hexagon Shape: This unique design allows the die to be driven with a wrench or socket, providing greater access and flexibility in confined work areas.
• Versatile Use: Ideal for maintenance and repair work, particularly for cleaning up existing threads or creating new ones in various applications.
• Precision Threading: Manufactured to specific standards, this die ensures threads are clean and accurately formed, resulting in secure and reliable connections.

SPECIFICATIONS:

• Brand: Irwin
• Part Number: 6954
• Thread Size: M16 x 1.0mm
• Material: High Carbon Steel (HCS)
• Outside Diameter: 1-7/16 inches (Hexagon Across Flat)
• Thread Direction: Right-hand
• Measurement System: Metric
• Manufacturing Location: USA
• Included in Product: One (1) Irwin M16 x 1.0mm HCS Hexagon Metric Die

HOW TO USE:

1. Preparation: Secure the workpiece firmly in a vise. Ensure the end of the rod or bolt is chamfered to help guide the die and prevent damage to the initial threads.
2. Tool Selection: Place the hexagon die into a wrench or socket of the correct size. This is a key benefit of the hexagon design, as it bypasses the need for a traditional die stock.
3. Start the Cut: Position the die squarely over the end of the workpiece. Apply even pressure and begin to turn the wrench clockwise (for right-hand threads).
4. Cutting Process: Turn the die clockwise, applying steady pressure. After every half to one full turn, reverse the die a quarter turn to break off the chips and prevent the threads from binding. This also helps to clear debris and maintain a clean cut.
5. Finishing: Continue turning and reversing until the desired length of thread is achieved. Once finished, remove the die by turning it counter-clockwise.

BENEFITS OF USING IRWIN M16 X 1.0MM HCS HEXAGON METRIC DIE (6954):

• Enhanced Accessibility: The hexagon shape allows for use with standard wrenches and sockets, making it easy to use in tight spaces where traditional die handles cannot fit.
• Quality Results: The high carbon steel construction and precise manufacturing ensure clean, accurately formed threads every time.
• Versatility in Applications: Whether you are repairing threads on a car part or creating a new threaded rod, this die provides the versatility needed for various tasks.
• User-Friendly Design: The ability to use a common wrench simplifies the threading process and reduces the need for specialized tools.
• Reliable Performance: Made by a reputable brand in threading tools, you can count on this die for consistent, long-lasting performance.

FEATURES:

• Standard Metric Thread: Cuts M16 x 1.0mm thread pitch.
• Right-Hand Cut: Designed for standard clockwise threading.
• High Carbon Steel Construction: Provides a strong cutting edge.
• Made in USA: Manufactured for quality assurance.
• Compact Size: The hexagon form offers a small footprint for better maneuverability.
• Single-Piece Tool: Comes as a complete die ready for use.
