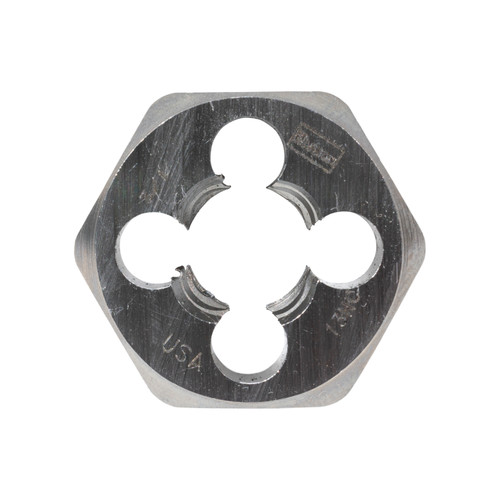

Irwin 1/2" - 13 NC HCS Hexagon Machine Screw Die (9444)

The Irwin 1/2" - 13 NC HCS Hexagon Machine Screw Die (9444) is an essential tool for creating and repairing external threads on bolts, rods, and studs. Made from high carbon steel (HCS), this hexagon-shaped die offers a precise and clean cut, ensuring a proper fit for nuts and other threaded components. Its unique hex design provides versatility, allowing it to be used not only with a hexagon die stock but also with a standard wrench or socket for improved access in confined areas. This makes it an ideal choice for a wide range of applications, including general maintenance, automotive repair, and machinery upkeep. The die is engineered for a 1/2-inch diameter with 13 threads per inch (NC), which is a common thread standard for many projects.

KEY FEATURES AND BENEFITS:

• Creates and Repairs Threads: This tool is specifically designed to cut new threads or restore existing ones that have become damaged, stripped, or rusted, extending the life of your hardware.
• High Carbon Steel Construction: The high carbon steel material provides the die with the necessary hardness and strength to cut through most metals, ensuring a clean and accurate thread profile with every use.
• Versatile Hexagon Shape: The hexagon design is a major benefit, as it allows for the tool to be driven by a variety of tools like a wrench or socket. This is especially useful when you are working in tight spaces where a traditional die stock might not fit.
• Right-Hand Threading: It produces a right-hand thread, which is the most common thread direction, compatible with the majority of standard nuts and bolts.
• Ideal for Maintenance and Repair: This die is a must-have for anyone who regularly performs repair work, as it can quickly fix damaged threads without the need to replace the entire bolt or fastener.

SPECIFICATIONS:

• Product Model Number: 9444
• Material: High Carbon Steel (HCS)
• Thread Size: 1/2" - 13 NC
• Thread Direction: Right Hand
• Tool Shape: Hexagon
• Across Flats Size: 1 inch

HOW TO USE:

1. Preparation: Before starting, ensure the bolt or rod you are threading is clean and free of rust or debris. Use a wire brush if needed. For a new thread, the outside diameter of the rod should match the nominal size of the die (1/2 inch in this case).
2. Lubrication: Apply a suitable cutting oil to both the die and the workpiece. This reduces friction, prevents overheating, and extends the life of the tool.
3. Starting the Cut: Place the die squarely on the end of the bolt or rod. Apply firm, even pressure and turn the die clockwise. It is crucial to start the thread straight to avoid cross-threading.
4. Cutting the Thread: Continue to turn the die clockwise. After every turn or two, reverse the direction a quarter turn to break off any metal chips. This prevents the chips from clogging the die and allows for a smoother cut.
5. Finishing the Thread: Once you have threaded to the desired length, remove the die by turning it counter-clockwise. Clean the newly cut threads to remove any remaining oil or chips.

BENEFITS OF USING IRWIN 1/2" - 13 NC HCS HEXAGON MACHINE SCREW DIE (9444):

• Cost-Effective Repairs: This tool allows you to repair a damaged bolt or stud rather than replacing it, saving you money and time.
• Enhanced Accessibility: The hexagon shape allows for greater access in tight spaces. You can use a variety of tools to drive the die, including a standard wrench or socket, which is often easier to maneuver than a bulky die stock.
• High-Quality Thread Creation: The high carbon steel construction and precision engineering of the die create clean and accurate threads that are ready for use.
• Reliability: Irwin is a trusted name in hand tools, so you can be confident that this die will perform reliably for many jobs to come.
• Improved Efficiency: By quickly repairing stripped threads, you can get the job done faster and more efficiently, minimizing downtime on a project.

FEATURES:

• Allows for tool operation with a standard wrench or socket.
• Designed to be used with a hexagon die stock for standard applications.
• Tool size is etched for easy identification and organization.
• Ideal for maintenance and repair work on machinery and equipment.
• Made from High Carbon Steel for cutting external threads by hand.
• Manufactured by Irwin, a well-known name in the industry.
