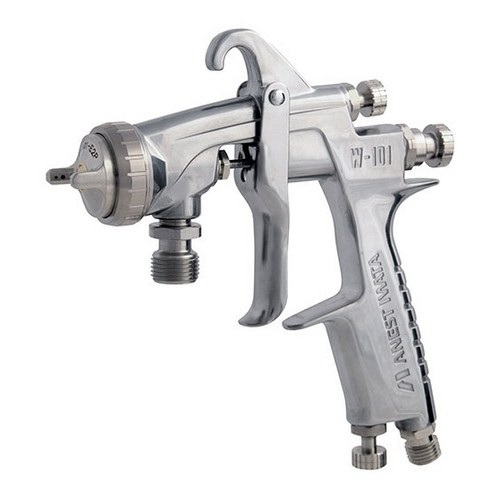

Iwata W101-132G 1.3mm Spray Gun w/PC5 250mL Cup (4562B)

The Iwata W101-132G 1.3mm Spray Gun w/PC5 250mL Cup (4562B) is a refined gravity feed spray gun designed to deliver exceptional finish results across diverse painting applications. As the successor to the well-regarded W100 series, the W101 model incorporates significant advancements in its air cap set, fluid nozzle, and gun body, providing painters with enhanced performance and a more comfortable experience. This tool is engineered to produce a stable spray pattern, minimize common paint imperfections like mottling and blotching, and reduce paint accumulation on the air cap, ensuring a clean and consistent application. Its thoughtful design aims to support efficient and precise painting, making it a reliable choice for both professionals and dedicated hobbyists.

KEY FEATURES AND BENEFITS:

• Improved Atomization Performance: Achieves a superior finish by breaking down paint into finer particles, resulting in smoother and more uniform coatings.
• Stable Spray Pattern Shape: Maintains a consistent and predictable spray pattern, contributing to even coverage and reducing the likelihood of defects.
• Decreased Mottling and Blotching: Engineered to mitigate common paint application issues, leading to a more uniform appearance of the final coat.
• Reduced Paint Build-up on Air Cap: Design improvements help keep the air cap cleaner during use, which translates to fewer interruptions for cleaning and more consistent spray quality.
• Redesigned Ergonomic Gun Body: The improved body shape and balance contribute to less strain during extended painting sessions, enhancing user comfort.
• Balanced, Lightweight Gun Body: At just 0.65 lbs (295g) for the gun only, its weight distribution aids in maneuverability and reduces overall user fatigue.

SPECIFICATIONS:

• Nozzle Size: 1.3 mm
• Recommended Air Pressure: 35 PSI (0.24 MPa)
• Air Consumption: 7.9 CFM (225 L/min)
• Fluid Output: 160 ml/min
• Pattern Width: 6.9 inches (175mm)
• Air Cap Model: W101-H2
• Fluid Inlet: 1/4"
• Air Inlet: 1/4"
• Weight (Gun Only): 0.65 lbs (295g)
• Cup Capacity: 250mL (PC5 Cup)
• Included in the box: Iwata W101-132G Spray Gun, PC5 250mL Gravity Feed Cup, cleaning brushes, universal spanner

HOW TO USE:

1. Prepare the Surface: Ensure the surface to be painted is clean, dry, and properly prepped according to the paint manufacturer's recommendations.
2. Mix Paint: Prepare your paint or coating material to the recommended viscosity for spraying. Pour the mixed material into the PC5 250mL gravity feed cup, ensuring it is securely attached to the spray gun.
3. Connect Air Supply: Connect the spray gun to a compressed air source using the 1/4" air inlet. Set your air compressor to the recommended operating pressure of 35 PSI.
4. Adjust Controls: Before spraying, adjust the fluid and fan pattern controls to achieve your desired spray pattern and material flow. Start with a test pattern on a piece of scrap material to fine-tune.
5. Apply Coating: Hold the spray gun at a consistent distance (typically 6-8 inches) from the surface, perpendicular to the target. Begin spraying off the work piece, then trigger the gun, moving smoothly across the surface. Release the trigger just before ending the stroke, off the work piece. Overlap each pass by about 50% for even coverage.
6. Clean After Use: Immediately after painting, disassemble the gun and clean all fluid passages, the air cap, fluid nozzle, and needle thoroughly with appropriate cleaning solvents. Refer to the manufacturer's cleaning guidelines for detailed instructions.

BENEFITS OF USING IWATA W101-132G 1.3MM SPRAY GUN W/PC5 250ML CUP (4562B):

• Provides professional-level finish quality, making it suitable for demanding projects.
• Supports a wide range of painting materials and applications, increasing its utility.
• Enhances painting efficiency due to its stable pattern and consistent output.
• Reduces the physical demand on the user, allowing for longer periods of comfortable operation.
• Requires less frequent pauses for cleaning the air cap, streamlining the workflow.
• Offers a precise application, leading to less material waste and better coverage.

FEATURES:

• Compact and balanced design for easy handling.
• Enhanced internal fluid passages for optimized flow.
• Responsive trigger action for precise material control.
• Stainless steel fluid components for compatibility with various coatings.
• Intuitive adjustment knobs for fine-tuning spray parameters.
• Redesigned air cap for efficient air dispersion.
• Lightweight construction for extended use comfort.
• Supports gravity feed for consistent paint delivery from the cup.
• Suitable for both detailed work and broader coverage.
• Reliable performance for consistent results.
