Description

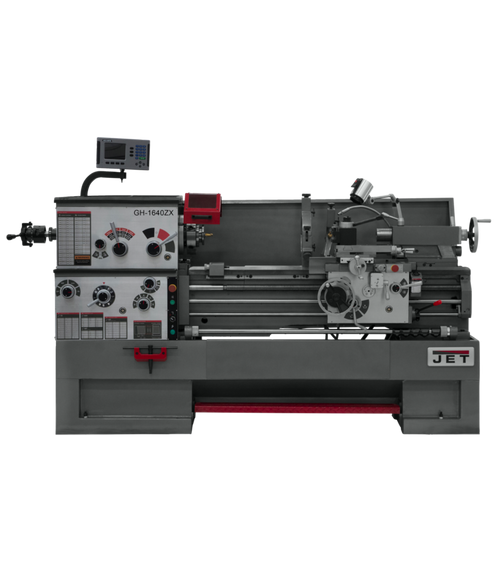

The Jet GH-1640ZX Lathe w/ACU-RITE 203 DRO, Taper & Collet Closer (321445) is a heavy-duty geared head lathe built for precision and performance in metalworking applications.

KEY FEATURES AND BENEFITS:

Power and Capacity:

7-1/2 HP, 3-phase motor delivers ample power for machining a wide range of materials.
Large 3-1/8" spindle bore accommodates larger diameter workpieces.
12 spindle speeds (25-1,800 RPM) provide flexibility for various cutting operations.

Versatility and Ease of Use:

Universal gearbox eliminates the need for manual gear changes, simplifying thread cutting in inch, metric, and other standards.
ACU-RITE 203 Digital ReadOut (DRO) enhances positioning accuracy for precise results.
One-piece cast iron base absorbs vibration for clean cuts even during heavy machining.

Built to Last:

High-quality cast iron bed ways ensure long-lasting durability and stability.
Chrome molybdenum headstock gears are hardened, ground, and shaved for smooth operation.
Carriage features one-shot lubrication for ease of maintenance.

Standard Equipment and Functionality:

10" 3-jaw scroll chuck with top reversing jaws for secure workpiece holding.
12" faceplate allows for mounting and centering larger workpieces.
5-piece quick-change tool post set provides versatility for various cutting tools.
Follow rest and steady rest for added support during machining.
Fully integrated coolant system keeps tools and workpieces cool for optimal cutting performance.
Large foot brake, articulating LED work lamp, and other operator conveniences enhance overall user experience.

SPECIFICATIONS:

Motor: 7-1/2 HP, 3-phase
Spindle Bore: 3-1/8 inches
Spindle Speeds: 25-1,800 RPM
Bed Ways: High-quality cast iron
Headstock Gears: Chrome molybdenum, hardened, ground, and shaved
Tool Post: 5-piece quick-change

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1640ZX lathe:

Ensure the lathe is securely positioned and leveled.
Power on the lathe and adjust the spindle speed as needed.
Mount the workpiece using the appropriate chuck or faceplate.
Select the cutting tool and secure it in the tool post.
Engage the gearbox for thread cutting or other operations as required.
Monitor the operation using the ACU-RITE 203 DRO for precision.
Use the integrated coolant system to maintain optimal cutting conditions.
Utilize the follow rest and steady rest for additional support if machining large workpieces.
After use, apply one-shot lubrication to ensure smooth operation for future tasks.

BENEFITS OF USING Jet GH-1640ZX Lathe w/ACU-RITE 203 DRO, Taper & Collet Closer (321445):

Heavy-duty construction for precision machining
ACU-RITE 203 DRO enhances accuracy
Comprehensive set of standard equipment included
User-friendly design for ease of operation

FEATURES:

Geared head for precise machining
Universal gearbox for simplified operations
High-quality cast iron base for vibration absorption
Chrome molybdenum headstock gears for smooth operation
ACU-RITE 203 Digital ReadOut (DRO) for accurate positioning
One-shot lubrication system for maintenance convenience
Wide range of spindle speeds for versatility
Integrated coolant system for optimal cutting performance
Large foot brake and LED work lamp for operator convenience
