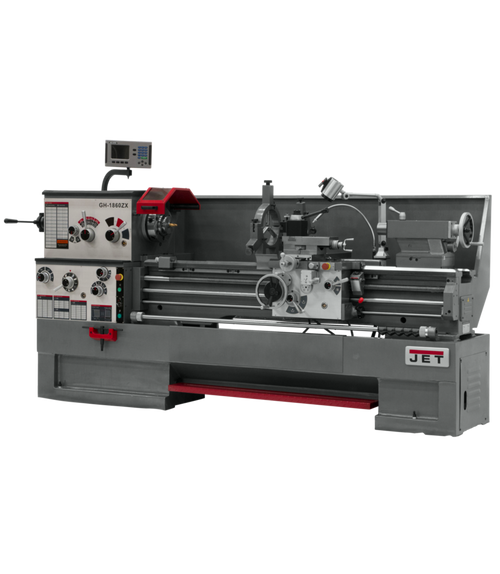

Jet GH-1660ZX 16x60" Lathe w/Newall DP700 DRO Taper & Collet (321502)

The Jet GH-1660ZX 16x60" Lathe w/Newall DP700 DRO, Taper & Collet (321502) is a high-performance, heavy-duty metal lathe designed for professional machinists and workshops. It features a powerful 7.5 horsepower motor, a 16-inch swing over the bed, and a 60-inch distance between centers, making it suitable for a wide range of metalworking projects. This lathe is equipped with a universal gearbox that eliminates the need for manual gear changes, enabling seamless threading across various pitches. Its one-piece cast iron base absorbs vibrations, ensuring accuracy even during heavy cuts. The Newall DP700 Digital ReadOut (DRO) system provides precise positioning, and the included taper attachment and collet closer expand its capabilities, making it a comprehensive solution for various machining tasks.

KEY FEATURES AND BENEFITS:

• Universal Gearbox: Simplifies threading by eliminating manual gear changes and supports inch, metric, diametral, and module pitch threads.
• High-Quality Bed Ways: Made from hardened and ground ANSI Class 50 wear-resistant cast iron, ensuring long-lasting precision and stability.
• Large Spindle Bore: The 3-1/8" spindle bore accommodates larger workpieces, offering ample clearance for various tooling.
• One-Piece Cast Iron Base: Provides rigidity and absorbs vibrations, resulting in chatter-free cuts and improved accuracy.
• Removable Gap: Increases turning capacity, allowing the machining of larger diameter workpieces.
• Digital ReadOut (DRO): The Newall DP700 DRO system offers precise positioning, simplifying complex machining tasks.
• Taper Attachment & Collet Closer: Facilitates various machining operations on round stock, adding versatility.
• Wide Speed Range: The lathe features 12 spindle speeds, ranging from 25 to 1,800 RPM, suitable for different materials and applications.
• Extensive Standard Accessories: Comes with a variety of accessories including chucks, faceplate, tool post, rests, coolant system, and more, supporting diverse metalworking operations.

SPECIFICATIONS:

• Swing Over Bed: 16 in.
• Swing Over Cross Slide: 10 in.
• Swing Through Gap: Up to 25-7/8 in.
• Distance Between Centers: 60 in.
• Spindle Bore: 3-1/8 in.
• Number of Spindle Speeds: 12
• Range of Spindle Speeds: 25 to 1,800 RPM
• Motor: 7.5 HP, 3-Phase, 230/460V
• Weight: 5,795 lbs.
• Overall Dimensions (L x W x H): 116.5 in. x 40 in. x 48 in.

HOW TO USE:

• Setup: Place the lathe on a stable and level surface. Secure it using the provided mounting pads and levelers. Connect the lathe to a 3-phase power supply.
• Load the Workpiece: Insert the workpiece into the chuck and secure it using the collet closer. Ensure the workpiece is tightly held to prevent any movement during machining.
• Adjust Settings: Select the appropriate spindle speed and threading options via the universal gearbox. Position the cutting tool in the four-way tool post and adjust it to the desired angle and position.
• Begin Machining: Start the lathe using the control panel. Use the jog button for fine adjustments and the foot brake for quick stops. Perform various operations such as turning, facing, threading, and tapering as required.
• Use the Coolant System: Activate the integrated coolant system to maintain optimal cutting temperatures and ensure smooth operation. The system helps in keeping the workpiece and tools cool and minimizes wear.
• Shutdown and Maintenance: Once machining is complete, turn off the lathe and clean the work area. Perform routine maintenance, including using the one-shot lubrication system to keep the machine in top condition.

BENEFITS OF USING THE JET GH-1660ZX 16X60" LATHE W/NEWALL DP700 DRO, TAPER & COLLET (321502):

• Precision and Accuracy: The robust construction and DRO system ensure high levels of precision, making it suitable for professional-quality results.
• Versatile Machining Capabilities: Ideal for tasks such as turning, threading, facing, and tapering, accommodating a wide range of projects.
• Efficient and User-Friendly: Features like the universal gearbox and one-shot lubrication streamline operations and reduce setup times, boosting productivity.
• Durable and Reliable: Built with high-quality materials, this lathe is designed for long-term use and can handle demanding applications with ease.
• Comprehensive Tooling and Accessories: Comes with a complete set of tools and accessories, supporting a variety of metalworking needs and adding significant value to any workshop.

FEATURES:

• Powerful Motor: The 7.5 HP motor delivers the power necessary for heavy-duty metalworking tasks.
• Generous Work Capacity: With a 16-inch swing over the bed and a 60-inch distance between centers, it can handle large and small workpieces effectively.
• Rigid Construction: The one-piece cast iron base ensures stability by absorbing vibrations, even during intensive operations.
• Precision Spindle: The 3-1/8" spindle bore, supported by tapered and ball bearings, offers smooth and accurate machining.
• Efficient Threading: The universal gearbox simplifies threading tasks by allowing quick adjustments across various pitches.
• Comprehensive Accessory Set: The lathe comes with essential accessories including chucks, a faceplate, a tool post, rests, a coolant system, and more, enabling a wide range of operations.
• Advanced Coolant System: The integrated coolant system helps maintain optimal operating conditions, with a splash guard and coolant return system for a clean working environment.
• Ergonomic Controls: The lathe features user-friendly controls, including a jog button and a foot brake, ensuring safe and efficient operation.
