Description

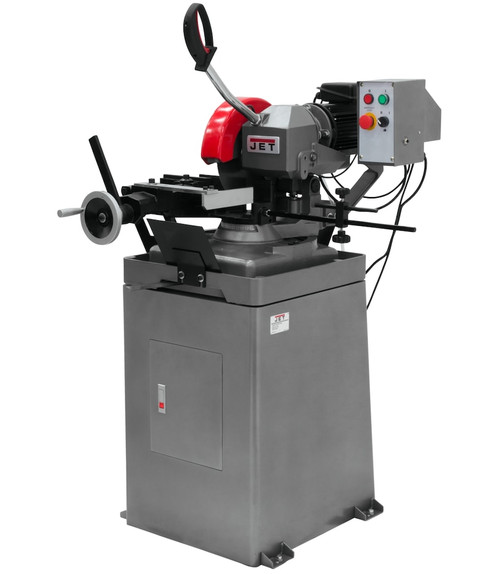

Jet CS-275 275mm 1 Phase Ferrous Manual Cold Saw (414228) is a heavy-duty manual cold saw designed for clean, precise cutting of ferrous materials like steel, stainless steel, and tough alloys. Its 10-inch (275mm) diameter blade and 1.5 HP motor provide ample power for various metalworking applications.
KEY FEATURES AND BENEFITS:
- Clean, Burr-Free Cuts: Delivers professional results with minimal finishing required.
- Versatile Cutting Capacity: Handles a wide range of materials, including solid rounds up to 3-7/16 inches and rectangular tubing up to 3-1/9 x 2 inches.
- Easy Operation: Spring-loaded trigger for comfortable control and safety.
- Quick Blade Changes: Two-piece cast iron blade guard allows for fast and easy blade replacement without removing the guards.
- Precise Cutting: Adjustable vise with gib and material support bar ensures accurate cuts.
- Durable Construction: Heavy-duty cast iron base provides a stable platform for demanding tasks.
- Extended Blade Life: Flood coolant system cools the blade and extends its lifespan.
- Mitering Capability: Cuts at 45 degrees left and right for angled cuts.
- Consistent Cutting Depth: Adjustable depth stop allows for repetitive cuts with precise depth control.
- 2-Year Warranty: Backed by JET's industry-leading warranty for peace of mind.
SPECIFICATIONS:
- Model Number: CS-275
- Cutting Capacity (Tubing):
- Round (90°): 3-7/16 in.
- Round (45°): 3-7/16 in.
- Square (90°): 2-1/2 x 2-1/2 in.
- Square (45°): 2-1/5 x 2-1/5 in.
- Rectangle (90°): 3-1/9 x 2 in.
- Rectangle (45°): 2-1/5 x 2 in.
- Cutting Capacity (Solid): Same as tubing capacity
- Blade Size: 275 x 32 x 2 mm
- Blade Speed: 54 RPM
- Maximum Vise Opening: 4 in.
- Motor: 1.5 HP, 115V (pre-wired)
- Weight: 330 lbs. (approx.)
HOW TO USE:
- Preparation: Secure the material firmly in the vise, ensuring it is properly aligned for the desired cut. Adjust the material support bar for additional stability.
- Blade Adjustment: For optimal cutting performance, ensure the blade is properly tensioned and aligned. Refer to the user manual for specific adjustment instructions.
- Cutting: Wear safety glasses and gloves. Power on the saw and use the spring-loaded trigger to initiate the cut. Guide the material steadily through the blade, maintaining even pressure.
- Mitering Cuts: Loosen the miter lock and adjust the cutting head to the desired angle (45° left or right). Tighten the lock and proceed with the cut as usual.
- Depth Stop: Set the depth stop to the required cutting depth for consistent results.
- Coolant System: Fill the coolant reservoir with appropriate coolant and adjust the flow control system for optimal blade cooling.
BENEFITS OF USING Jet CS-275 275mm 1 Phase Ferrous Manual Cold Saw (414228):
- Professional-Quality Cuts: Achieve clean, burr-free results for a polished look.
- Versatility: Cuts a wide variety of ferrous materials for diverse metalworking projects.
- User-Friendly Operation: Spring-loaded trigger and easy blade changes enhance user experience and safety.
- Precision Cutting: Adjustable vise and depth stop ensure accurate and repeatable cuts.
- Durable Construction: Built to last with a heavy-duty cast iron base.
- Extended Blade Life: Flood coolant system cools the blade, minimizing wear and tear.
- Increased Efficiency: Mitering capabilities and depth stop allow for faster completion of angled and repetitive cuts.
FEATURES:
- 10-inch diameter cutting capacity
- 1.5 HP motor
- Spring-loaded trigger for easy operation
- Two-piece cast iron blade guard
-
