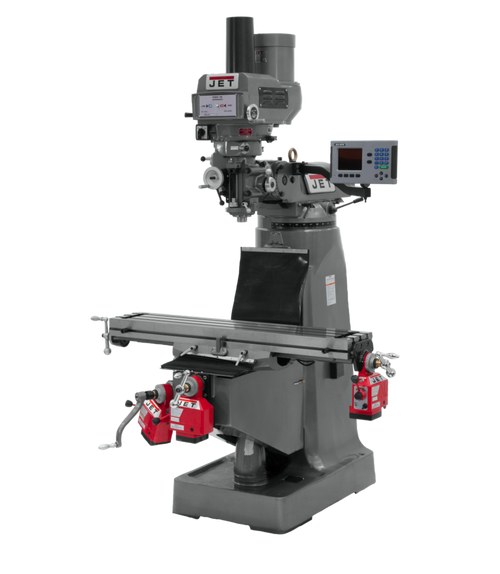

Jet JTM-4VS Mill 3-Axis ACURITE 200S DRO XYZ-Axis Pwrfd & PDB (690430)

The Jet JTM-4VS Mill 3-Axis ACURITE 200S DRO XYZ-Axis Pwrfd & PDB (690430) is a versatile knee mill designed for both professional machinists and hobbyists. This powerful machine boasts a 3 HP variable speed motor with a wide range (60-4200 RPM) for handling various materials. The JTM-4VS features a rigid Meehanite cast iron base that minimizes vibration and ensures machining accuracy.

KEY FEATURES AND BENEFITS:

• Precision Machining: ACU-RITE 300S DRO (Digital ReadOut) provides precise positioning for repeatable results.
• Automated Efficiency: Power feeds on all three axes (X, Y, and Z) automate machining processes, saving time and effort.
• Effortless Tool Changes: The pneumatic power drawbar allows for quick and easy tool changes.
• Durable Construction: The Meehanite cast iron base and heavy-duty construction ensure long-lasting performance.
• Versatility: Variable speed motor tackles a wide range of materials.
• Large Work Capacity: Table size (9" x 49") and travel distances (X: 34", Y: 12", Z: 5") accommodate various project sizes.

SPECIFICATIONS:

• Motor: 3 HP, 230/460V, 3-Phase
• Spindle Taper: R8
• Range of Spindle Speeds: 60 - 4,200 RPM
• Quill Travel: 5"
• Table Size: 9" x 49"
• Table Longitudinal Travel: 34" (28-3/4" with powerfeed)
• Table Cross Travel: 12"
• Collet Capacity: 1/8" - 7/8"
• Weight: 2,420 lbs.

HOW TO USE:

1. Installation: Refer to the user manual for proper installation instructions, including electrical connection and coolant system setup (coolant pump not included).
2. Workpiece Setup: Secure your workpiece to the mill table using clamps or a vise suitable for the material and size.
3. Power On and Speed Selection: Turn on the mill and select the appropriate spindle speed based on the material and desired cutting performance.
4. Axis Positioning: Utilize the ACU-RITE DRO for precise positioning of the cutting tool along the X, Y, and Z axes.
5. Machining: Engage the power feeds (optional) for automated movement along the selected axis, or manually control movement using the handles.
6. Tool Changes: Utilize the power drawbar for quick and easy tool changes when needed.

BENEFITS OF USING Jet JTM-4VS Mill 3-Axis ACURITE 200S DRO XYZ-Axis Pwrfd & PDB (690430):

• Increased Efficiency: Power feeds and a variable speed motor streamline machining processes.
• Enhanced Accuracy: ACU-RITE DRO ensures precise positioning for superior results.
• Reduced Operator Fatigue: Power feeds minimize manual effort during machining.
• Durable Construction: The mill is built to last with a rigid Meehanite cast iron base.
• Versatility: Handles a wide range of materials and project sizes.

FEATURES:

• Meehanite cast iron base for vibration dampening
• Variable speed motor (60-4200 RPM)
• ACU-RITE 300S DRO for precise positioning
• Power feeds on X, Y, and Z axes
• Pneumatic power drawbar for easy tool changes
• Large diameter quill (3-3/8") for rigidity and clearance
• High precision Class 7 spindle bearings
• Spindle head is internally cooled for thermal stability
• Precision hardened and ground ways for smooth travel
• Adjustable gibs for taking up wear
• Internal coolant tank built into the base (pump not included)
• Includes toolbox with tools and tolerance test sheet
