Description

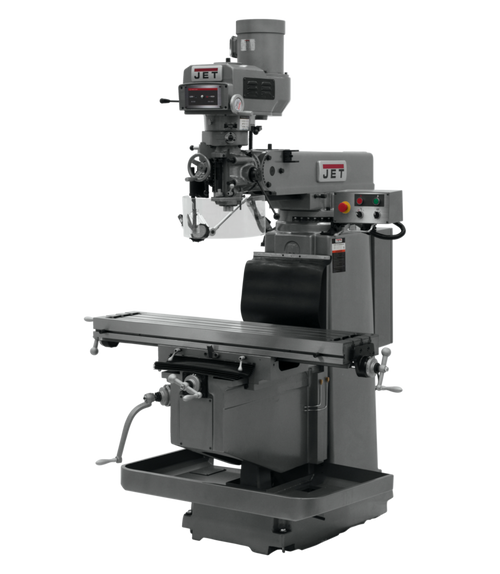

Jet JTM-1254VS Mill w/ ACU-RITE 303 DRO & XYZ Powerfeeds (698150) is a robust vertical milling machine designed for precision and efficiency. Built with certified Meehanite castings, this machine offers exceptional stability and durability. Equipped with power feeds on the X, Y, and Z axes and an Acu-Rite 303 DRO, it ensures accurate and controlled operations.
KEY FEATURES AND BENEFITS:
- Certified Meehanite Castings: Provides superior rigidity and stability for precise machining.
- Acu-Rite 303 DRO: Offers accurate measurements and control for improved precision.
- Power Feeds on X, Y, and Z Axes: Enhances efficiency and productivity.
- Automatic Lubrication: Reduces maintenance and prolongs machine life.
- Quick Nut Spindle Feed: Allows for easy adjustments and efficient operation.
- Heavy-Duty Construction: Ensures long-lasting performance and reliability.
SPECIFICATIONS:
- Spindle Taper: NT40
- Table Size: 12" x 54"
- Quill Diameter: 4-1/8"
- Spindle Speeds: 80-3,800 RPM
- Quill Down Feed Rates: .0015-.003-.008 IPR
- Spindle Travel: 5"
- Head Movement: 90° R & L, 45° F & B
- Max Distance Spindle to Table: 23"
- Distance Spindle to Column (Max): 27-3/4"
- Distance Spindle to Column (Min): 7-1/2"
- Table Longitudinal Travel: 33-7/8"
- Table Longitudinal Travel With Powerfeed: 28-1/4"
- Table Cross Travel: 15-1/3"
- T-Slot Centers: 2-1/2"
- Work Table Weight Capacity: 925 lbs
- Travel of Knee: 19-1/4"
- Travel of Ram: 25"
- Saddle Width: 25-5/8"
- Column Width: 14-1/4"
- Motor: 5HP, 230/460V, 3Ph
- Overall Dimensions: 92-1/8" x 79-7/8" x 104-1/4"
- Weight: 3969 lbs
HOW TO USE:
Safety First:- Always wear appropriate safety gear, including eye protection and hearing protection.
- Ensure the machine is properly grounded.
- Level the machine on a stable surface.
- Connect the machine to the power supply and check all electrical connections.
- Securely clamp the workpiece to the machine table using appropriate clamps and fixtures.
- Choose the correct cutting tool for the material and operation.
- Securely tighten the tool in the spindle.
- Zero the DRO for accurate measurements.
- Engage the power feed for controlled movement of the table.
- Use the handwheels for fine adjustments.
- Monitor the cutting process and make necessary adjustments.
- Apply coolant as needed to prevent overheating and improve tool life.
- Turn off the power feed and spindle.
- Allow the machine to cool down before cleaning.
BENEFITS OF USING Jet JTM-1254VS Mill w/ ACU-RITE 303 DRO & XYZ Powerfeeds (698150):
- Increased Productivity: Power feeds and accurate DRO improve efficiency.
- Improved Precision: Certified Meehanite castings and precision components ensure accurate machining.
- Reduced Maintenance: Automatic lubrication system extends machine life.
- Versatility: Suitable for a wide range of machining tasks.
- Durability: Built to withstand heavy-duty use.
FEATURES:
- Certified Meehanite Castings
- Acu-Rite 303 DRO
- Power Feeds on X, Y, and Z Axes
- Automatic Lubrication
- Quick Nut Spindle Feed
- Heavy-Duty Construction
- Precision Ground Ways and Table
- Three Precision Ground T-Slots
- Adjustable Gibs
- Spindle Guard
- Spindle Brake
- Dual Locks on Moveable Surfaces
- Chip Pan
- Tool Box with Tools
-
