Description

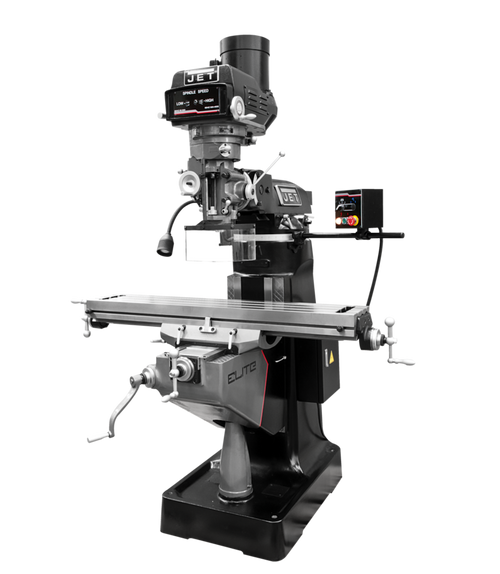

The Jet ETM-949 Mill 3-Axis Newall DP700 (Quill) DRO XYZ Powerfeed (894163) is a high-precision, 3-axis vertical milling machine designed for demanding machining tasks. It boasts a robust construction and advanced features that ensure accuracy, reliability, and ease of use.
KEY FEATURES AND BENEFITS:
- Precision Spindle:
- Utilizes class 7210 (P4, ABEC-7) angular bearings for a spindle taper runout of 0.00012".
- Chromium Molybdenum spindle is fully hardened and precisely ground for strict tolerances.
- Hand-Scraped Ways:
- Y and Z-axis ways hand-scraped to a minimum of 16 points per square inch for enhanced oil retention and smooth movements.
- Advanced Backlash Control:
- Minimized table and saddle backlash with an advanced double nut design, ensuring precise lateral movements.
- Automatic Lubrication:
- Equipped with an automatic lubrication system for consistent oil application every 30 minutes, reducing wear on critical components.
- Safety Features:
- Includes a spindle safety guard and electronic spindle brake for operator safety.
- CSA/CUS certified to meet safety and electrical standards.
SPECIFICATIONS:
- Digital ReadOut: Newall DP700
- Powerfeed: X, Y, & Z-axis
- Table Size (L x W): 9" x 49"
- Spindle Taper: R-8
- Spindle Speeds: Variable (60 - 4,500 RPM)
- Work Table Weight Capacity: 550 lbs
- Overall Dimensions (L x W x H): 68" x 63" x 84"
- Motor: 3 HP, 230/460V, 3 Ph
HOW TO USE:
- Ensure the mill is securely positioned on a stable base.
- Select the desired spindle speed using the variable speed pulleys.
- Utilize the X, Y, & Z-axis power feeds for automated table movement.
- Monitor measurements on the Newall DP700 DRO for precise positioning.
- Activate the electronic spindle brake or emergency stop button as needed for safety.
BENEFITS OF USING Jet ETM-949 Mill 3-Axis Newall DP700 (Quill) DRO XYZ Powerfeed (894163):
- High-precision machine suitable for demanding machining tasks.
- Robust construction ensures durability and reliability.
- Enhanced safety features for operator protection.
- Automatic lubrication system extends machine life.
FEATURES:
- Spindle runout of 0.00012" with class 7210 angular bearings
- Hand-scraped ways for smooth movements
- Advanced double nut design for minimal backlash
- Automatic lubrication system for consistent maintenance
- Spindle safety guard and electronic spindle brake for operator safety
- Precision Spindle:
-
