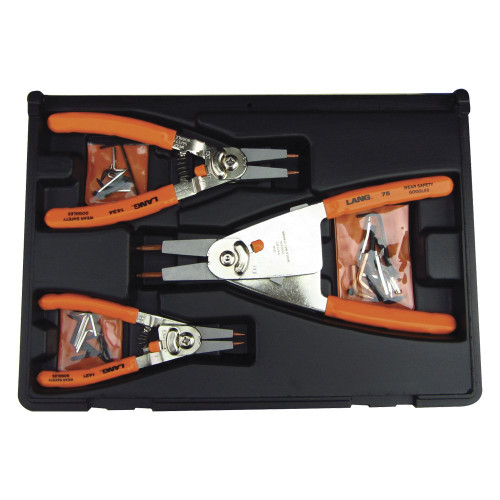

Lang Tools 3-Piece Quick Switch Retaining Ring Pliers Set (1465)

The Lang Tools 3-Piece Quick Switch Retaining Ring Pliers Set (1465) is a versatile and efficient collection designed for professional and frequent use with internal and external retaining rings. This set eliminates the need for manual jaw alignment, offering a quick and straightforward conversion between applications with a simple switch mechanism. Each plier in the set is engineered for user comfort and reliable performance, ensuring effective management of a wide range of retaining ring sizes.

KEY FEATURES AND BENEFITS:

• Quick Switch Mechanism: Patented design allows for rapid conversion between internal and external retaining ring applications, significantly reducing setup time and improving workflow efficiency compared to traditional methods.
• Comprehensive Size Coverage: The set includes three distinct plier models (1421, 1434, and 75), collectively covering internal ring sizes from 1/4" to 4" and external ring sizes from 1/8" to 4", accommodating a broad spectrum of retaining ring types and diameters.
• Multiple Interchangeable Tip Kits: Each of the three pliers comes with its own dedicated tip kit, providing a total of three kits within the set. Each kit contains 5 pairs of color-coded, durable alloy interchangeable tips and a hex key, ensuring the right tip is always available for precise engagement with different ring eyelets.
• Enhanced User Comfort: All pliers feature double-dipped custom grips made from low-temperature, high-impact material. These grips provide a comfortable and secure hold, reducing hand fatigue during extended use.
• Spring-Return Handles: The handles are equipped with a spring return mechanism, which aids in smooth operation and improves overall user experience by automatically opening the pliers after each compression.
• Automatic Ratchet Lock (Model 75): The largest plier (Model 75) includes an automatic ratchet lock, which holds large retaining rings in an open or closed position, providing stability and safety during installation or removal.

SPECIFICATIONS:

• Internal Ring Size Range: 1/4" - 4" (7mm - 102mm)
• External Ring Size Range: 1/8" - 4" (3mm - 102mm)
• Tip Diameter Range: 0.023" (0.6mm) to 0.120" (3.0mm)
• Dimensions: 9.5" X 13.5" X 2.25"
• Included in Product:
  • 1 x Lang Tools Model 1421 Quick Switch Retaining Ring Pliers
  • 1 x Lang Tools Model 1434 Quick Switch Retaining Ring Pliers
  • 1 x Lang Tools Model 75 Internal & External Replaceable Tip Retaining Ring Pliers with Automatic Ratchet Lock
  • 3 x Tip Kits (one for each plier), each containing 5 pairs of color-coded, interchangeable tips and a hex key.

HOW TO USE:

1. Select the Correct Plier: Identify the appropriate plier (1421, 1434, or 75) based on the size of the retaining ring you are working with.
2. Choose the Right Tips: Consult the included tip kit for your selected plier. Select the pair of interchangeable tips that best fit the eyelets of your retaining ring. Insert the tips into the plier jaws and secure them with the provided hex key.
3. Set for Internal or External Ring: For models 1421 and 1434, locate the quick switch mechanism near the pivot point. Flip the switch to convert the plier for either internal (spreading) or external (compressing) ring applications. Model 75 automatically adjusts for internal/external with tip changes.
4. Engage the Ring: Position the tips firmly within the eyelets of the retaining ring.
5. Operate the Pliers:
   • For Internal Rings: Squeeze the plier handles to expand the ring, allowing it to be installed into or removed from a groove.
   • For External Rings: Squeeze the plier handles to compress the ring, allowing it to be installed onto or removed from a shaft.
   • For Model 75 (Large Rings): Squeeze the handles until the automatic ratchet lock engages to hold the ring in the desired open or closed position, then release the handles for hands-free manipulation of the ring. Disengage the ratchet lock by pressing the release lever.
6. Install/Remove Ring: Carefully install or remove the retaining ring as needed.
7. Store Pliers and Tips: After use, clean the pliers and store them along with their respective tip kits and hex keys in a suitable storage solution to protect them.

BENEFITS OF USING LANG TOOLS 3-PIECE QUICK SWITCH RETAINING RING PLIERS SET (1465):

• Facilitates rapid transitions between internal and external retaining ring tasks.
• Reduces time spent on tool setup and adjustment.
• Provides a versatile solution for a broad spectrum of retaining ring sizes.
• Offers secure and comfortable handling during operation.
• Minimizes hand strain during repetitive or prolonged use.
• Ensures consistent performance across various applications.
• Simplifies work on large retaining rings with a stable ratchet-lock feature.
• Organized tip storage within individual kits promotes efficiency.

FEATURES:

• Patented rapid-conversion switch for function change.
• Ergonomic double-dipped grips for comfortable handling.
• Spring-assisted return action on plier handles.
• Includes three distinct plier body sizes for varied applications.
• Each plier comes with its own dedicated set of interchangeable tips.
• Color-coded tips for easy identification and selection.
• Hex key included with each tip kit for secure tip attachment.
• Ratchet-locking mechanism on the largest plier for hands-free stability.
• Designed for broad compatibility with diverse retaining ring dimensions.
