Description
The Lang Tools Ford Power Stroke Diesel Fuel System Kit (TU-32-4PB) is an indispensable diagnostic tool engineered for precise fuel pressure testing on Ford Power Stroke diesel engines. Designed for comprehensive compatibility with models from 1994 through current 6.7L, this kit provides mechanics and enthusiasts with the means to accurately assess fuel system integrity. Whether you're troubleshooting performance issues, verifying injector pump operation, or checking for air intrusion, the TU-32-4PB offers the necessary components for reliable diagnostics.
KEY FEATURES AND BENEFITS:
- Broad Power Stroke Compatibility: Specifically designed to work with Ford Power Stroke diesel engines ranging from 1994 up to current models, making it a versatile tool for various generations of these engines.
- Accurate Pressure Measurement: Includes a high-quality 100 PSI gauge that provides precise readings of fuel pressure, essential for identifying low pressure, clogged filters, or pump malfunctions.
- Comprehensive Testing Points: Comes with all necessary adapters to allow for accurate fuel pressure testing at both the fuel filter and the fuel pump, enabling a thorough assessment of the entire fuel delivery system.
- Safe Pressure Release: Features a bleed-off valve hose assembly that allows for controlled and clean depressurization of the fuel system after testing, preventing fuel spills and ensuring user safety.
- Professional Grade Quality: Manufactured by Lang Tools in the USA, ensuring a professional-grade tool built for durability and reliability in demanding workshop environments.
SPECIFICATIONS:
- Part Number: TU-32-4PB
- Gauge Range: 100 PSI
- Product Dimensions (Case): 10.5" (Length) X 13.75" (Width) X 3.75" (Height)
- Country of Origin: USA

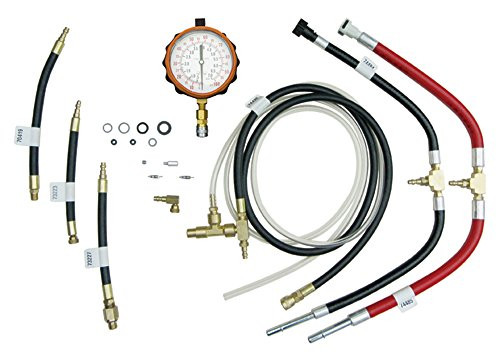

- Included in Kit: 100 PSI fuel pressure gauge with protective boot, bleed off valve hose assembly, adapters for fuel filter and fuel pump testing, custom-molded storage case.
HOW TO USE:
- Preparation: Ensure the engine is cool and not running. Locate the fuel filter housing and fuel pump access points on your specific Ford Power Stroke engine model. Wear appropriate personal protective equipment, including gloves and eye protection.
- Connect to Fuel Filter: Select the appropriate adapter for your fuel filter housing. Connect the bleed-off valve hose assembly and the 100 PSI gauge to the adapter, then securely attach the assembly to the fuel filter housing.
- Test at Fuel Filter: Start the engine (or turn the ignition to the "on" position, depending on the test required) and observe the fuel pressure reading on the gauge. Note down the reading. You may need to follow your vehicle's specific service manual instructions for target pressure values.
- Connect to Fuel Pump: Carefully disconnect the assembly from the fuel filter. Locate the fuel pump and select the correct adapter. Connect the bleed-off valve hose assembly and gauge to this adapter, then securely attach it to the fuel pump.
- Test at Fuel Pump: Repeat the testing procedure as performed at the fuel filter, observing and noting the fuel pressure reading from the pump. This helps isolate whether a pressure drop is before or after the filter.
- Depressurize and Disconnect: Once testing is complete, carefully open the bleed-off valve to release the remaining fuel pressure from the system. Once pressure is relieved, slowly disconnect the gauge and hose assembly from the engine.
- Store: Clean any residual fuel from the tools and return all components to the custom-molded storage case for protection and organization.
BENEFITS OF USING LANG TOOLS FORD POWER STROKE DIESEL FUEL SYSTEM KIT (TU-32-4PB):
- Pinpoints fuel system problems quickly, saving diagnostic time.
- Helps prevent costly repairs by identifying issues early.
- Ensures accurate fuel delivery for optimal engine performance.
- Reduces the risk of misdiagnosis in complex diesel fuel systems.
- Provides a safe and clean method for fuel pressure testing.
- Extends the lifespan of fuel system components by ensuring correct pressure.
FEATURES:
- Comprehensive adapter set for varied testing locations.
- Protective rubber boot surrounds the pressure gauge.
- Hoses designed to withstand high fuel pressures.
- Compact, custom-molded storage case for portability.
- Intuitive connections for quick setup and breakdown.
- Constructed from materials suitable for automotive fluid exposure.
- Designed for repeated professional use.
-
