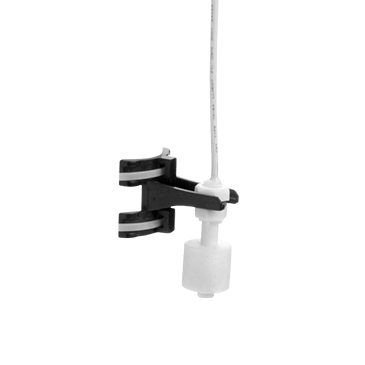

Level Sense DC Clamp on Float Switch (LS-FLOAT-KIT)

The Level Sense DC Clamp on Float Switch (LS-FLOAT-KIT) is a dependable solution for detecting high water levels, primarily designed for use with sump pumps. This device easily attaches to the pump's discharge pipe, providing a crucial high-level alarm to help prevent potential flooding. It is also compatible with Level Sense systems and most standard household security alarm systems that accept normally open or normally closed dry contact inputs. This float switch is specifically rated for DC applications only. Its versatile design allows it to be easily converted from a normally open to a normally closed configuration by simply inverting the float. The switch comes equipped with a 15-foot wire, offering flexibility in installation. It is also well-suited for various DIY electronics projects, including those using Arduino and Raspberry Pi.

KEY FEATURES AND BENEFITS:

• Reliable High Water Detection: Provides dependable high water level detection for sump pumps.
• System Compatibility: Compatible with Level Sense systems and most household security alarm systems.
• Clamp-On Installation: Attaches easily to sump pump discharge pipes ranging from 1 inch to 4 inches.
• Configurable Operation: Can be switched between normally open (default) and normally closed by inverting the float.
• Extended Cable: Includes a 15-foot wire, offering flexibility in setup.
• DC System Ready: Suitable for DC circuits up to 1.5 Amps and a maximum of 10 Watts.
• Mounting Bracket Included: Adds installation versatility for various setups.

SPECIFICATIONS:

• Housing Material: Polypropylene, white
• Switch Type: Normally Open (NO) Reed Switch
• Working Voltage: 5Vdc - 12Vdc
• Voltage Rating: 24Vdc
• Maximum Wattage: 10W
• Working Current: 0.5 Amp, 1.0 Amp Max
• Maximum Current: 1.5 Amps
• Contact Resistance: 0.2Ω
• Operating Temperature: -4⁰F to +176⁰F (-20℃ to +80℃)
• Cable Length: 15 Feet
• Wire Connections: Red (Positive), White (Negative/Ground)
• Pipe Compatibility: 1 inch to 4 inches

HOW TO USE:

1. Mount the Clamp: Position the float switch on the sump pump’s discharge pipe (1 to 4 inches in diameter) at the desired high-water level. Secure using the integrated clamp or optional mounting bracket.
2. Wire Connections: Connect the red wire to the positive terminal and the white wire to ground on your Level Sense system, alarm, or DC electronics.
3. Set Configuration: Leave the switch in the default normally open state or invert the float for normally closed operation as required.
4. Testing: Manually raise the float to simulate high water and verify activation. Test the reversed setup by lowering the float if normally closed is used.

BENEFITS OF USING THE LEVEL SENSE DC CLAMP ON FLOAT SWITCH (LS-FLOAT-KIT):

• Early Flood Detection: Offers crucial alerts to prevent flooding damage.
• System Integration: Seamlessly connects with security and monitoring systems for complete protection.
• Simple Installation: Clamp design enables quick setup without plumbing modifications.
• Versatile Configuration: Easily adaptable to both normally open and closed logic systems.
• Reliable Performance: Uses a trusted reed switch mechanism for consistent detection.
• DIY Friendly: Compatible with Arduino and Raspberry Pi for custom applications.

FEATURES:

• Integrated Mounting Bracket: Supports alternative installation methods.
• 15-Foot Wire: Offers installation flexibility.
• Normally Open Reed Switch: Default configuration activates when float rises.
• Invertible Float: Converts easily to normally closed for different system logic.
• Polypropylene Housing: Durable and resistant to water exposure.
• Color-Coded Wires: Simplifies installation with clear red and white indicators.
