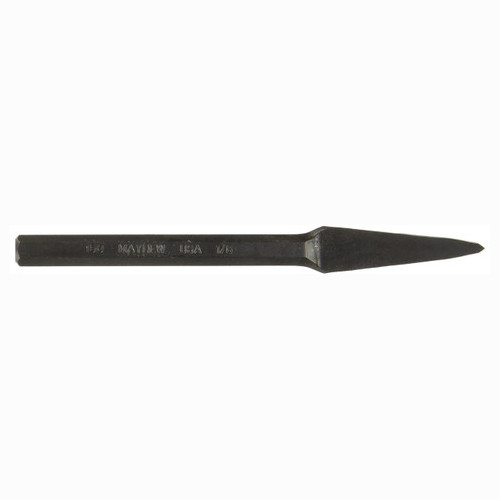

Mayhew 1/8" Blade Width Cape Chisel (10400)

The Mayhew 1/8" Blade Width Cape Chisel (10400) is a specialized hand tool engineered for precision cutting and grooving in metal. Designed for professionals and enthusiasts alike, this American-made chisel is ideal for tasks requiring detailed material removal, such as creating keyways, forming narrow slots, or defining intricate lines in various metal surfaces. Its focused design ensures efficiency and accuracy in every application, providing a clean and consistent result for your projects.

KEY FEATURES AND BENEFITS:

• Precision Cutting: The 1/8-inch blade width tapers to a narrow, flat cutting end, allowing for highly accurate and controlled grooving and slotting in metal.
• Rust Protection: A black oxide finish is applied to the chisel, offering an additional layer of protection against rust and corrosion, extending the tool's lifespan.
• American Made Quality: Manufactured in the USA, this chisel adheres to rigorous quality standards, ensuring reliability and consistent performance.
• Versatile Application: Also known as a slot chisel, it excels at creating precise grooves for various purposes, from mechanical components to artistic metalwork.

SPECIFICATIONS:

• Product Type: Cape Chisel / Slot Chisel
• Manufacturer: Mayhew Steel Products Inc.
• Part Number: 10400
• Blade Width: 1/8 inch
• Overall Length: 5 1/2 inches
• Shank Type: Hexagonal
• Shank Size: 5/16 inch
• Weight: 0.1 lbs.
• Hardness: 55 – 57 Rockwell
• Included in Product: 1x Mayhew 1/8" Blade Width Cape Chisel (10400)

HOW TO USE:

1. Prepare Your Workpiece: Secure the metal piece you intend to work on firmly in a vise or clamp to prevent any movement during the chiseling process.
2. Mark the Cut Line: Clearly mark the groove or slot line on your metal using a scribe or marker to guide your chisel.
3. Position the Chisel: Place the cutting edge of the Mayhew 1/8" Cape Chisel precisely on your marked line, ensuring the blade is angled correctly for the desired cut depth and width.
4. Strike the Chisel: Using a ball-peen hammer or appropriate striking tool, strike the top of the chisel firmly and consistently. Start with lighter taps to establish the cut, then increase force as needed.
5. Clean and Repeat: Periodically clear away metal shavings to maintain visibility of your cut line. Continue striking and guiding the chisel along the line until the desired groove or slot depth is achieved. For deeper cuts, you may need to make multiple passes.

BENEFITS OF USING MAYHEW 1/8" BLADE WIDTH CAPE CHISEL (10400):

• This specialized chisel provides exceptional control for cutting precise, narrow grooves, making it indispensable for intricate metalworking tasks.
• Its robust construction ensures it can withstand repeated striking, offering a reliable solution for demanding jobs.
• The design allows users to achieve clean and defined lines, enhancing the overall quality of their projects, whether it's for fitting components or detailed aesthetic work.

FEATURES:

• Narrow profile cutting end for intricate work.
• Resistant to rust due to specialized finish.
• Manufactured to high standards in the United States.
• Hex-shaped body for a secure grip and to prevent rolling.
• Compact and lightweight design for easy handling and maneuverability.
• Specifically heat-treated for enhanced strength and longevity.
