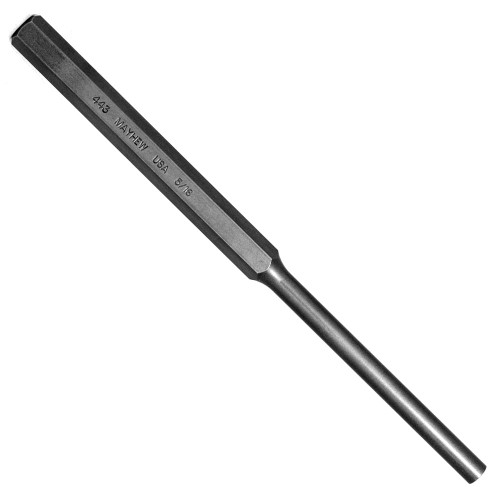

Mayhew 3-1/2" x 5/16" Hex Pin Punch (71503)

The Mayhew 3-1/2" x 5/16" Hex Pin Punch (71503) is a specialized hand tool crafted for the precise removal of pins and keys. Manufactured in the USA by Mayhew Steel Products, a company with over 160 years of experience, this punch embodies reliability and functional design. It is specifically engineered to complete the pin removal process, efficiently driving out fasteners that have already been loosened or broken free from their fit. This tool is an essential addition for professionals in metalworking, mechanics, and various assembly or repair applications where careful pin extraction is required. Its robust construction ensures consistent performance and a secure grip during use.

KEY FEATURES AND BENEFITS:

• 5/16" Pin Width: This precise tip size is designed to accurately engage and drive out pins of matching dimensions, ensuring effective and damage-free removal.
• Specialized Pin Removal: Used to drive out and remove already loosened pins and keys after initial movement by a solid punch, preventing damage to the tool or workpiece by attempting to free seized pins.
• Shot-Blast Finish: Provides enhanced surface protection against corrosion and wear, contributing to the tool's extended life.
• Made in the USA: Manufactured by Mayhew, an ISO 9001-certified company, ensuring high standards of quality control and craftsmanship.

SPECIFICATIONS:

• Model Number: 71503
• Brand: Mayhew
• Weight: 0.274 lbs.
• Overall Length (OAL): 8 inches
• Body Type: Hex
• Body Size: 7/16 inch
• Pin Width: 5/16 inch
• Pin Length (Taper Length): 3-1/2 inches
• Finish Type: Blast Finish

HOW TO USE:

1. Prepare the Workpiece: Ensure the pin you intend to remove is accessible and the surrounding area is clear. Place the workpiece on a stable, solid surface that can absorb impact without damage.
2. Initial Loosening (if needed): If the pin is seized or very tight, first use a solid or taper punch (not this pin punch) to break it free and initiate movement. This tool is not for loosening stuck pins.
3. Position the Pin Punch: Once the pin has some initial movement, place the 5/16" tip of the Mayhew Hex Pin Punch squarely on the center of the loosened pin.
4. Strike with a Hammer: Using a hammer of appropriate weight, strike the head of the punch firmly and squarely. Apply consistent force to drive the pin out through the other side of the workpiece.
5. Monitor Progress: Continue striking until the pin is fully expelled from the hole. Be careful not to damage the workpiece or the punch by striking off-center.
6. Clean Up: Once the pin is removed, clear any debris and store the punch in a dry place.

BENEFITS OF USING MAYHEW 3-1/2" X 5/16" HEX PIN PUNCH (71503):

• Precise Pin Removal: The specific 5/16" tip ensures accurate engagement with pins, minimizing the risk of slippage or damage to the surrounding material.
• Enhanced Control: The hexagonal body provides a stable and secure grip, preventing the punch from rolling on flat surfaces and offering better handling during use.
• Reliable Performance: Made from quality steel with a blast finish, this tool is built to withstand repeated impacts, offering consistent performance over time.
• Professional Grade: As a product from Mayhew, a long-standing American manufacturer, it meets the demands of professional applications, ensuring dependability in various mechanical tasks.
• Prevents Damage: By being specifically designed for already loosened pins, it helps avoid bending or breaking the punch that might occur if used on seized fasteners, thereby extending tool life.

FEATURES:

• Hexagonal shank for anti-roll stability
• Precision-machined 5/16-inch working tip
• One-piece forged steel construction
• Corrosion-resistant blast finish
• Optimized length for leverage and reach
• High-strength material composition
• Designed for post-loosening pin extraction
