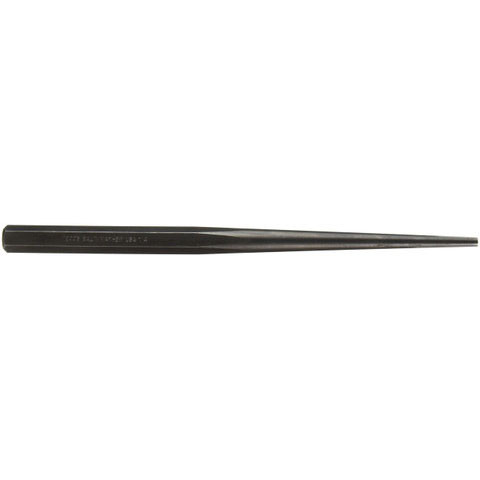

Mayhew 1/4" Point Width Line-Up Punch (72003)

Mayhew 1/4" Point Width Line-Up Punch (72003)
$11.96 Save 25
$9.57
(You save $2.39 )
Adding to cart… The item has been added
MPN:
SKU:
JB-MAY-72003  |
UPC:
045256720036  |
Shipping:
Calculated at Checkout
  • Icon 1 Free
    shipping     Orders Over $99
  • Icon 2 Global
    Shipping     Fast delivery
  • Icon 3 60-Day
    Return     Hassle-free
Free Shipping
Adding to cart… The item has been added
  • Description

    The Mayhew 1/4" Point Width Line-Up Punch (72003) is a precision hand tool engineered to facilitate perfect hole alignment for various fastening applications. Its primary function is to align holes before the insertion of rivets, pins, or bolts, ensuring a smooth and accurate fit. By inserting its precisely tapered end into semi-aligned holes, the punch can be gently driven to achieve perfect concentricity. This tool is heat-treated for enhanced strength and features a hexagonal body for a secure grip. Manufactured in the USA, it reflects a commitment to quality craftsmanship and comes with a lifetime warranty. Its shot-blasted finish provides corrosion resistance, extending the tool's lifespan and maintaining its appearance.

    KEY FEATURES AND BENEFITS:

    • Precision alignment: Ensures accurate hole positioning for rivets, pins, and bolts.
    • Heat-treated construction: Provides durability and long-term reliability.
    • Hexagonal body: Offers a secure and stable grip during use.
    • Corrosion-resistant finish: Shot-blasted exterior protects against oxidation and wear.
    • USA made: Manufactured in the United States and backed by a lifetime warranty.

    SPECIFICATIONS:

    • Model Number: 72003
    • Point Width: 1/4 inch
    • Overall Length (OAL): 12 inches
    • Body Size (Hex): 5/8 inch
    • Weight: 0.86 lbs
    • Width: 0.75 inch
    • Height: 0.75 inch
    • Body Type: Hex
    • Taper Length: 6-3/4 inches
    • Finish Type: Blast Finish
    • UPC: 045256720036

    HOW TO USE:

    • Identify misaligned holes: Locate the holes that require alignment for fastener insertion (e.g., for rivets, pins, or bolts).
    • Position the punch: Place the tapered end of the Mayhew Line-Up Punch into one of the semi-aligned holes.
    • Drive for alignment: Gently tap the striking end of the punch with a hammer or mallet. The tapered design will guide the material, bringing the holes into perfect alignment.
    • Remove punch: Once alignment is achieved, remove the punch from the aligned holes.
    • Insert fastener: The holes are now prepared for the seamless insertion of your rivet, pin, or bolt.

    BENEFITS OF USING MAYHEW 1/4" POINT WIDTH LINE-UP PUNCH (72003):

    • Improved fastening accuracy: Ensures that fasteners fit perfectly, reducing installation time and preventing damage to materials or fasteners.
    • Enhanced project efficiency: Streamlines assembly processes by quickly resolving hole misalignment issues.
    • Consistent results: Provides a reliable method for achieving repeatable, precise hole alignment across multiple applications.
    • Professional finish: Contributes to a cleaner and more professional appearance of assembled components due to accurate fastener placement.
    • Reliability: Backed by a lifetime warranty, offering peace of mind regarding the tool's quality and performance.

    FEATURES:

    • Specialized tapered point for effective hole correction.
    • Designed exclusively for hole alignment, not for driving fasteners.
    • Constructed from heat-treated alloy steel for operational integrity.
    • Hexagonal body design ensures a firm and stable grip during use.
    • Surface treated with a shot-blasted finish for resistance to oxidation.
    • Identifiable as a "Drift Punch" in professional contexts.
    • Proudly manufactured within the United States of America.
