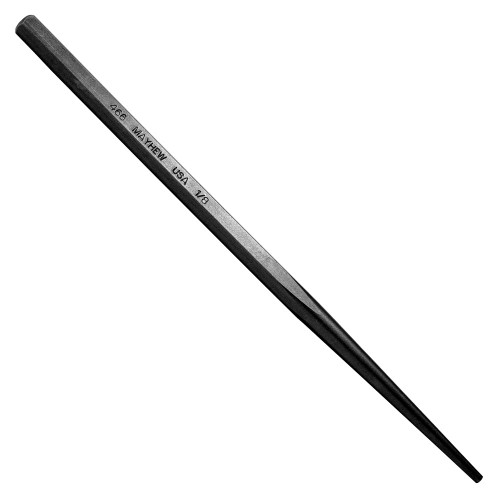

Mayhew 1/8" Point Width Hex Line-Up Punch (72010)

Mayhew 1/8" Point Width Hex Line-Up Punch (72010) is a specialized hand tool engineered for precision hole alignment. Its 1/8" point width is perfectly sized for accurately guiding holes before the insertion of rivets, pins, or bolts. By utilizing its tapered end, this punch can be driven through semi-aligned holes, ensuring perfect registration and ease of fastener installation. This tool's robust construction and shot-blasted finish contribute to its functional lifespan and performance. Often referred to as a "Drift Punch," it is a testament to quality craftsmanship, being proudly Made in the USA.

KEY FEATURES AND BENEFITS:

• Enhanced Precision: Ensures holes are perfectly aligned, simplifying the insertion of fasteners and reducing assembly time.
• Reduced Frustration: Eliminates the difficulty and force often required when attempting to insert fasteners into misaligned holes.
• Component Protection: Prevents damage to fasteners and workpieces that can occur from forcing parts together.
• Improved Efficiency: Streamlines assembly processes by making fastener insertion quick and smooth.
• Reliable Performance: Made from high-quality materials, this tool offers consistent performance over time.

SPECIFICATIONS:

• Weight: 0.152 lbs.
• Length: 7.875"
• Width: 2.25"
• Height: 1.5"
• Brand: Mayhew
• Body Type: Hex
• Body Size: 5/16"
• Overall Length (OAL): 8"
• Taper Length: 3-1/2"
• Point Width: 1/8"
• Finish Type: Blast Finish
• Country of Origin: US
• Packaging: Bulk
• UPC: 045256720104
• GTIN: 30045256720105
• Harmonized Code: 8205.59.9000
• Included in product when purchased or shipped: Mayhew 1/8" Point Width Hex Line-Up Punch (72010)

HOW TO USE:

1. Identify Misaligned Holes: Locate the holes in your workpiece that need to be aligned for fastener insertion.
2. Position the Punch: Insert the tapered, 1/8" point end of the Mayhew Line-Up Punch into one of the semi-aligned holes.
3. Apply Pressure: Gently push the punch, attempting to guide the holes into better alignment.
4. Drive for Alignment: If necessary, use a hammer or mallet to lightly tap the other end of the punch. This action will cause the tapered end to pass through both holes, forcing them into perfect coaxial alignment.
5. Remove Punch: Once alignment is achieved, remove the punch from the now perfectly aligned holes.
6. Insert Fastener: You can now easily insert your rivet, pin, or bolt through the aligned holes.

BENEFITS OF USING MAYHEW 1/8" POINT WIDTH HEX LINE-UP PUNCH (72010):

• Ensures accurate hole alignment to simplify fastener installation.
• Reduces frustration caused by misaligned components during assembly.
• Protects fasteners and workpieces from damage during the alignment process.
• Improves workflow efficiency in both professional and DIY settings.
• Delivers consistent performance due to durable, high-quality construction.

FEATURES:

• Designed with a specific 1/8" tip for precise hole registration.
• Hexagonal body ensures a secure grip and prevents rolling on flat surfaces.
• Manufactured in the United States, reflecting adherence to quality standards.
• One-piece construction for enhanced integrity and strength.
• The surface finish provides protection and a consistent appearance.
• Engineered with a specific taper length to effectively guide holes into position.
• Suitable for aligning a variety of holes for pins, rivets, and bolts.
