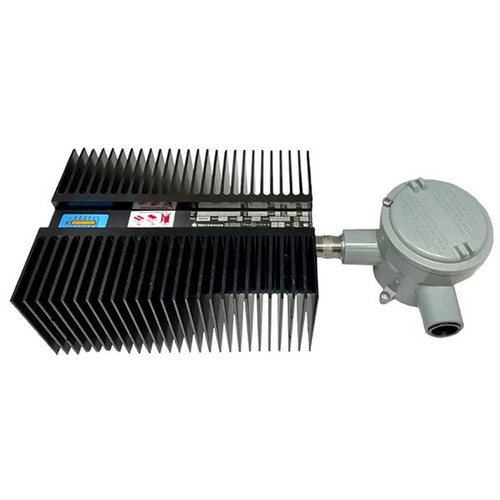

Norseman 700W 120V T2D Convection Heater w/T'stat (XPAL-700T2D120-NNC)

The Norseman 700W 120V T2D Convection Heater w/T'stat (XPAL-700T2D120-NNC) is an advanced heating solution engineered specifically for demanding industrial environments. This explosion-proof panel heater is meticulously designed to provide critical freeze protection and temperature maintenance within hazardous locations where explosive atmospheres may be present. Its primary application includes safeguarding sensitive components inside control cabinets, instrument enclosures, and small storage rooms containing volatile materials. By utilizing natural convection, the heater gently elevates ambient temperatures, preventing condensation and freezing without the need for forced air circulation, which can be undesirable in certain hazardous settings. Integrated with a thermostat, it ensures precise temperature control, making it an essential component for maintaining operational integrity and safety in critical industrial processes.

KEY FEATURES AND BENEFITS:

• Explosion-Proof Certification: cCSAus certified for Class I, Division 1 & 2, Groups A, B, C, & D, and ATEX/IECEx/EAC Ex d IIC or IIB, T2 (215ºC), T3 or T4, Gb IP66. This certification confirms its suitability for use in environments where flammable gases or vapors may be present, providing crucial safety and compliance.
• Natural Convection Heating: Operates without a fan, relying on the natural movement of air to distribute heat. This ensures quiet operation and is ideal for locations where air movement needs to be minimized or where sensitive instruments could be affected by forced air.
• Integrated Thermostat Control: Comes factory-wired with a thermostat, often preset to control temperatures between 50°F and 64°F (10°C and 18°C). This allows for automatic temperature regulation, ensuring consistent protection against freezing and maintaining optimal conditions for enclosed equipment.
• Corrosion-Resistant Construction: Features a custom extruded aluminum convector assembly with high-density fins, anodized black for enhanced corrosion resistance. This robust construction ensures longevity and reliable performance even in harsh industrial settings.
• Low Maintenance Operation: Designed for long-term, dependable service with minimal maintenance requirements, reducing operational downtime and costs.
• Simplified Installation: Equipped with a mounting bracket and hardware for straightforward attachment. The patented x-Max® housing, with its screw-on covers and slide-out terminal block trolley, facilitates easier and quicker electrical connections.

SPECIFICATIONS:

• Wattage: 700W
• Voltage: 120V
• Amperage: 5.9 Amps
• Heat Output: 2,388 Btu/hour
• Heat Type: Convection
• Phase: Single Phase
• Installation: Hardwired
• Use Environment: Indoor
• Minimum Operating Temperature: -40°F (-40°C) Ambient
• Maximum Operating Temperature: 104°F (40°C) Ambient
• Material: Aluminum
• Color: Black/Silver

HOW TO USE:

1. Mount the Heater: Securely attach the Norseman heater to the interior wall or surface of your enclosure using the provided mounting bracket and hardware. Ensure the heater is positioned to allow for proper air circulation for effective convection heating.
2. Electrical Connection: Carefully wire the heater to a suitable 120V power supply. The unit is designed for hardwiring, and the slide-out terminal block trolley in the x-Max® housing facilitates easier electrical connections. Always ensure power is disconnected before beginning wiring.
3. Confirm Thermostat Setting: If your model has a non-adjustable thermostat, it will be factory preset. If it has an adjustable thermostat, set it to your desired temperature range for freeze protection, typically between 50°F and 64°F (10°C and 18°C).
4. Power On: Restore power to the circuit. The heater will begin to operate, providing freeze protection and maintaining the set temperature within the enclosure.
5. Monitor (Optional): While the heater operates automatically, occasional monitoring of the enclosure temperature can be done to ensure optimal performance and confirm protection.

BENEFITS OF USING NORSEMAN 700W 120V T2D CONVECTION HEATER W/T'STAT (XPAL-700T2D120-NNC):

• Enhanced Equipment Longevity: Prevents damage to sensitive electronics and instruments caused by freezing temperatures or condensation, extending their operational life.
• Operational Reliability: Ensures critical systems and processes remain functional by maintaining stable internal temperatures in enclosures, even in cold external conditions.
• Safety in Hazardous Zones: Its explosion-proof design provides a safe heating solution in environments where standard heaters would pose a significant risk, ensuring compliance with strict safety regulations.
• Energy Efficiency: Natural convection heating, combined with thermostat control, optimizes energy usage by only activating when heat is needed to maintain the set temperature.
• Reduced Downtime: Reliable performance minimizes the need for repairs or replacements of temperature-sensitive equipment, leading to fewer interruptions in operations.

FEATURES:

• Integrated Secondary Thermal Fuse for enhanced protection against overheating.
• High-Density Finned Convector maximizes heat transfer efficiency.
• Patented x-Max® Housing enables efficient wiring and installation.
• Mounting Flexibility allows for secure wall or panel placement.
• Robust Aluminum Extrusion ensures durability in industrial settings.
• Black Anodized Finish enhances resistance to environmental wear and corrosion.
