Description

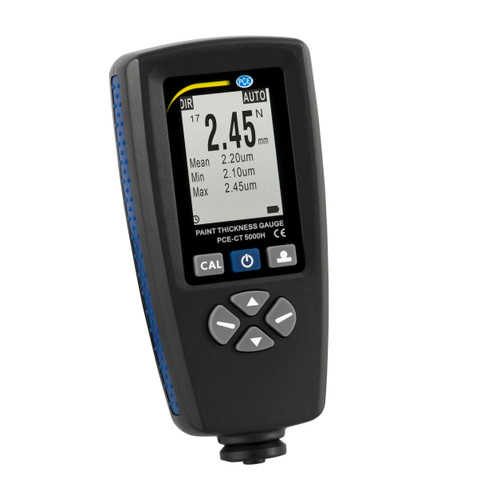

PCE Instruments Coating Thickness Gauge (PCE-CT 5000H) is a high-precision device designed for non-destructive measurement of coating and dry film thickness (DFT) on ferrous and non-ferrous metal substrates. Ideal for automotive paint inspection, material testing, and manufacturing quality control, this gauge automatically detects the substrate type and applies the appropriate measurement method.
The device features alarm limits that notify users when coatings exceed preset thickness parameters. It also includes a statistical function to track measurement data, storing up to 2000 readings.
- Specifications and Dimensions
- Probe Type: Type F (Magnetic Induction) & Type N (Eddy Current)
- Measuring Range (F): 0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils
- Measuring Range (N): 0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils
- Accuracy: ± (2% + 1 μm)
- Resolution:
- 0 ... 99.9 μm: 0.1 μm
- 100 ... 999 μm: 1 μm
- > 1000 μm: 0.01 mm
- Calibration: One-point to four-point, zero calibration
- Measurement Storage: 2000 readings
- Measurement Modes: Direct, statistical
- Measurement Units: μm, mm, mils
- Alarm: Adjustable limit settings with notification display
- Minimum Radius of Curvature (Convex): 5 mm / 0.2 in
- Minimum Radius of Curvature (Concave): 25 mm / 1 in
- Smallest Measuring Surface: Diameter of 20 mm / 0.8 in
- Maximum Measuring Rate: 2x per second
- Data Transfer: USB connection
- Power Supply: 2 x 1.5V AAA batteries
- Menu Languages: English, German, Russian, Chinese
- Operating Temperature: 0 ... 50°C / 32 ... 122°F
- Storage Temperature: -10 ... 60°C / 14 ... 140°F
- Material Housing: ABS plastic
- Dimensions: 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in
- Weight: 92 g / < 1 lb
- Key Features and Benefits
- Non-destructive testing on ferrous and non-ferrous metals
- Automatic substrate detection with high accuracy
- Programmable alarm limits for coating thickness monitoring
- Stores up to 2000 measurements for future reference
- CE, ROHS, and FCC certified for compliance and reliability
- Includes
- 1 x PCE-CT 5000H Coating Thickness Gauge
- 2 x Zero Calibration Plates (Ferrous and Non-Ferrous)
- 5 x Calibration Plates
- 2 x 1.5V AAA Batteries
- 1 x USB Cable
- 1 x PC-Compatible Software
- 1 x User Manual
- 1 x Carrying Case
- Specifications and Dimensions
-
