Description

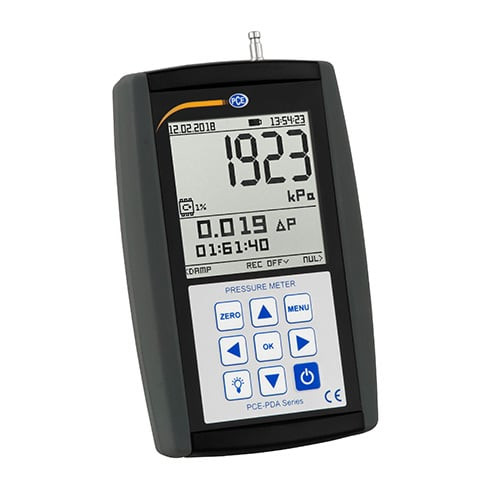

PCE Instruments Digital Manometer (PCE-PDA 1000L) is a high-precision digital device designed for measuring relative pressure in industrial, laboratory, and HVAC applications. With a measuring range of -100 to 2000 kPa, this manometer provides accurate readings, data logging, and multiple measurement units for versatile use.
Equipped with a large graphic LCD, USB interface, and max/min hold functions, this digital manometer ensures easy operation and reliable performance. It features a quick coupling connection, making it suitable for measuring air, liquids, and non-explosive gases in a variety of settings.
- Specifications and Dimensions
- Pressure Measuring Range: -100 ... 2000 kPa
- Resolution: 0.01 kPa, 0.1 kPa
- Accuracy: < ± 0.5% of measuring range
- Nominal Pressure: 2000 kPa
- Overpressure: 2000 kPa
- Burst Pressure: 3000 kPa
- Media: Air, Liquids, Non-explosive gases
- Measurement Rate: 10 Hz
- Measurement Units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
- Principle: Relative pressure
- Pressure Connections: 5 mm (0.2 in) nipple for quick connection
- Data Logger: 1024 memory slots
- Recording Time: 1 s ... 255 h per memory location
- Recording Interval: 1 s ... 24 h
- Zero Correction: Yes, with a zero key
- Display: Graphic LCD with backlight
- Protection Class: IP41
- Power Supply: 2 x 1.2V NiMh batteries or 5V USB power adapter
- Operating Temperature: 0 ... 50°C / 32 ... 122°F
- Storage Temperature: 10 ... 55°C / 50 ... 131°F
- Dimensions: 145 x 85 x 35 mm / 5.71 x 3.35 x 1.38 in
- Weight: Approx. 285 g / < 1 lb
- Key Features and Benefits
- Measures relative pressure with high accuracy and a wide range
- Supports multiple measurement units for flexibility
- Graphic LCD with backlight for clear data visualization
- USB interface for easy data transfer and logging
- Data logger with 1024 memory slots for long-term monitoring
- Quick coupling connection for seamless setup
- Leak test function to detect pressure changes in systems
- Max, Min, and Hold functions for real-time data tracking
- Includes
- 1 x PCE-PDA 1000L Manometer
- 2 x 1.2V NiMh Batteries
- 1 x USB Power Adapter
- 1 x Micro USB Cable
- 1 x User Manual
- Specifications and Dimensions
-
